Product Specifications
Product Description

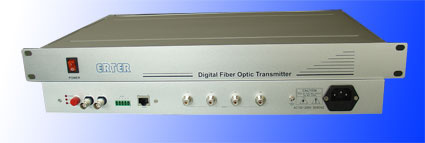

ERT series P2P broadcasting TV broadband Video/audio digital optical transceiver (Grade A PRO) adopts international advanced digital video and 1000M fiber high-speed transmission technology to transmit the TV programmes from mulitchannel broadcasting (PRO-level) and signal from multi-TV, audio stereo, data and Ethernet by single IC or double IC without any distortion but high quality. It can support the transmission of any high resolution moving and still picture with distortion and the transmission of stereo audio. It passed by the VM700T strict testing. As the structuring and modulation design, users can make configuration flexibly
Features
1. Supports point to point connecting mode
2. Digital broadcasting transmission with any compression
3. Automatically compatible PAL, NTSC and SECAM format
4. Pnp design, easy installation and advanced self-adapting technology
5. No interactive obstruction from analog FM/AM transceiver
6. SMT design with high reliability
7. 19'' 1U' rack mounted case
Specifications
Video Parameters
Video interface: BNC
Video input & output impedance: 75 Ω(unbalanced)
Video input & output voltage: 1.0VP - P
Differential gain: <1%
Differential phase: <1%
Tilt Fields: <0.5% (Max)
SNR ≥ 70dB
Sampling Frequency: 15.36MHz
Optical Parameters
Connector: FC/PC or ST/PC
Fiber Type: SM/MM fiber, SM 9/125μm, MM62.5/125μm
SM Wavelength: 1310/1550mn
MM Wavelength: 850/1300mn
Receiving Sensitity: -35dBm
Data Parameters
Physical Connector: RJ-45
Data direction: Forward/reverse/bi-directional
Speed Rate: 0~256Kbps
General Parameters
Weight(Standard): <5kg
Dimension (standard): 482mm*280mm* 222mm
Chassis Slots: 8 (64channels)
Operation Humidity: 0~95% Non-condensing
MTBF: ≥ 105 h ours
Zhejiang Everight Optic Technology Co., Ltd., is a High-tech enterprise, which integrates R&D, production, sales and services of video transmission equipment. Everoptic is technically based on Zhejiang University, and insists on researching and manufacturing of optical fiber transmission equipment which in accordance with human-oriented, credit-based, high-tech-oriented, market-motivated, and customer-satisfaction-objective.
From the establishment of our enterprise, we have been mass investing for product's innovation, constantly pursuing prominent product's quality, effective business service and perfect after service which help us become a continuously developing pioneer enterprise with influential technology. In order to meet the development of increasingly evolutive fiber transmission equipment, we promote all-series digital video/audio/data optical transceiver with self-owned intellectual property rights. Digital optical transceiver series are widely used in broadcasting TV system, express way, city intelligent traffic, electric power and irrigation system, large-scale-enterprise, campus supervision, campus network, park and other defence and security systems.
Our tenet is to mutually develop with our customers, we will build glory together with all of our customers base on the principle of reliable and pragmatic attitude.
