Product Specifications
| Prod Model: |
MVT-M2224H |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| 1024p: |
1280*1024 |
| Chip: |
1/3"Progressive Scan Sony CMOS(138) |
| Lens: |
2m Pixels 8mm Lens |
| IR LEDs: |
3rd Generation LED Array |
| IR Range: |
50m IR Distance |
| Advantage1: |
Poe Optional |
| Advantage2: |
with TF Card Slot |
| Advantage3: |
Audio Intercom |
| Advantage4: |
BNC Signal Output |
| Advantage5: |
with Power 12V1a |
| Type: |
IP Camera |
| Sensor: |
CMOS |
| Style: |
Bullet Camera |
| Feature: |
Waterproof / Weatherproof |
| Kind: |
Autofocus Lens |
| Technology: |
LED Array |
| Horizontal Resolution: |
1024p |
Product Description

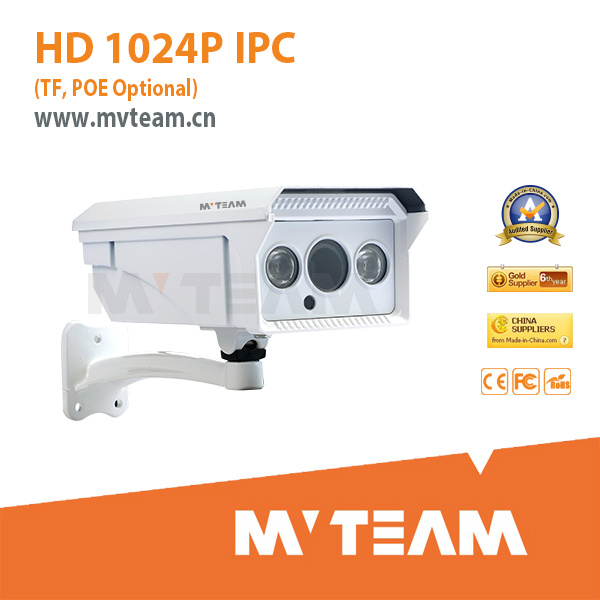

P2p Poe Ir Waterproof Ip Camera With Led Array (MVT-M2224H)
1- Advantages of our new IP camera:
1) Philips solution with reasonable price
2) Easy to set up when IP camera connect with NVR
NVR can automatic search IP cameras in LAN, no need modify IPC IP address one by one, no need any manual operations
3) Easy to solve the manage problem of several IP cameras
IP cameras with same CMS software of NVR, can manage IPC and NVR together in one CMS software;
Mobile phone view software also is same.
4) Both IP camera and NVR have P2P function
5) Poe optional
Poe can support both supply power and transfer video
6) CE, FCC, ROHS approved
2- Features:
1024P 1280*1024
1) Dual stream encoding / H. 264 compression mode, POE Optional
2) 1/3"Progressive Scan SONY CMOS(138)
3) 2M Pixels 8mm Lens, 3rd generation LED Array, 50m IR Distance, with bracket
4) Support Multi-Screen software and CMS
5) with TF card slot, audio intercom, BNC signal output
6)with power 12V1A
|
Model No.: |
MVT-M2220 |
MVT-M2224H |
MVT-M2280H |
|
Image Sensor |
1/4"Progressive Scan CMOS ( OV9712 ) |
1/3"Progressive Scan SONY CMOS ( 138 ) |
1/2.8"Progressive Scan SONY CMOS ( 122 ) |
|
Maximum Resolution |
1280*720 |
1280*1024 |
1920*1080 |
|
Iris |
manual/auto iris |
|
Day/Night |
with IR-cut day & night function |
|
Minimum Illumination |
0.01Lux /F1.2 |
0.01Lux /F1.2 |
0.01Lux /F1.2 |
|
Pan/tilt/zoom |
ePTZ |
|
Video |
|
Compression |
H.264 Main profile |
|
Maximum Frame Rate |
1280*720P25,30 800*600P25,30 704*576P25,30 640*480P25,30 |
1280*1024P25,30 1280*960P25,30 1280*720P25,30 704*576P25,30 640*480P25,30 |
1920*1080P25 1280*1024P25,30 1280*960P25,30 1280*720P25,30 1024*768P25,30 800*600P25,30 704*576P25,30 640*480P25,30 |
|
Streams |
main stream,VGA sub-stream,CIF sub-stream |
|
Dynamic Range |
Adjustable resolution, quality and bitrate |
|
Video Streaming |
Adjustable resolution, quality and bitrate |
|
Image Settings |
Adjustable image size, quality and bit rate Time stamp, text overlay,Configurable brightness, contrast, saturation,sharpness, privacy masks |
|
Network |
|
Users |
Live viewing for up to 16 clients |
|
Protocols |
TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPOE, SMTP ,NTP, UPnP, FTP, 802.1X, HTTPS |
|
Interface |
10Base-T/100 BaseTX Ethernet (RJ-45) |
|
ONVIF |
Supported |
|
Remote view |
support P2P for remote view on PC and mobile phone |
|
Video Motion Detection |
Take photo,video record,send email |
|
Alarm |
Motion Detection alarm |
|
General |
|
Connectors |
RJ-45 cable connector for Network/PoE connection DC 12V power input |
|
LED Indicator |
System power and status indicator |
|
Power Input |
DC12V±20% |
|
Power Consumption |
4W±10% |
|
Casing |
Weather-proof IP67-rated housing |
|
Safety Certifications |
CE, FCC ,RoHS |
|
Operating Temperature |
-10 ºC ~55 ºC |
|
Operating humidity |
< 90% |
|
System Requirements |
|
Operating System |
Microsoft Windows 8/7/XP |
|
Web Browser |
IE,Chrome,Firefox ( Chrome and Firefox need install IE TAB ActiveX controls ) |
|
Client Software |
CMS |
|
Mobile phone surveillance |
Android 2.1~2.3,Ipad ios 5 and Iphone,Symbian V3 and V5 , Windows mobile 5.5 and 6.1, BlackBerry 7 |
|
Included Accessories |
|
Power Supply |
DC12V/1A Power supply |
|
CD |
User's manual,CMS software,mobile phone view software etc. |
|
bracket |
wall mount bracket |
