P3 Indoor High Resolution LED Display

Name: P3 Indoor High Resolution LED Display
Brand: china-manufacturer-directory.com
SKU: 699757402
Availability: InStock
Rating: 4.7 (140 reviews)

Supplier:	Shenzhen Seny Technology Co., Ltd.
Price:	US $ 1800/Square Meter
Min Order:	1/Square Meter
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	SY-P3-16S
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Warranty:	Two Years Warranty After Shipping
Display Type:	LED Video Display
Tube Chip Color:	Full Color
Display Function:	Video Display
Scanning Mode:	1/16 Scan
Certification:	FCC
Pixel Configuration:	1R,1G,1B
Application:	Stage Performance
Pixel Pitch:	3mm
Pixel Density:	111111 Dots/M2
IP Rating:	for Indoor Use Only
System Operating Platform:	Win98/2000/Nt/XP

Product Description

P3 Indoor High Resolution LED Display
Main features:
1. Extremely close view distances and wide view angles.
2. Silent operation, little heat generated.
3. Standard panel design makes stocking, transportation, construction, spare parts and maintenance easy and simple.
4. Real white, brilliant colors, breathtaking grayscale.

Description
Item Name	Parameter
Model No	SY-P3-16S

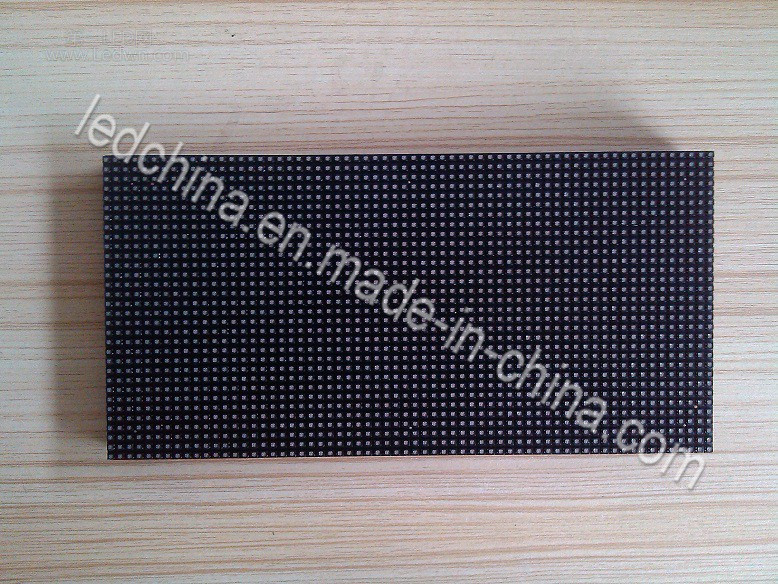

Module size	192mm*96mm
Pixel pitch	3mm
Pixel Density	111111 pixels/m2
Pixel configuration	1R1G1B
Package mode	SMD2121
Module resolution	64dots(H)*32dots(V)
Drive type	Constant drive
Scan mode	1/16scan
Port type	HUB75-A
Brightness of white balance	≥1700cd/m2

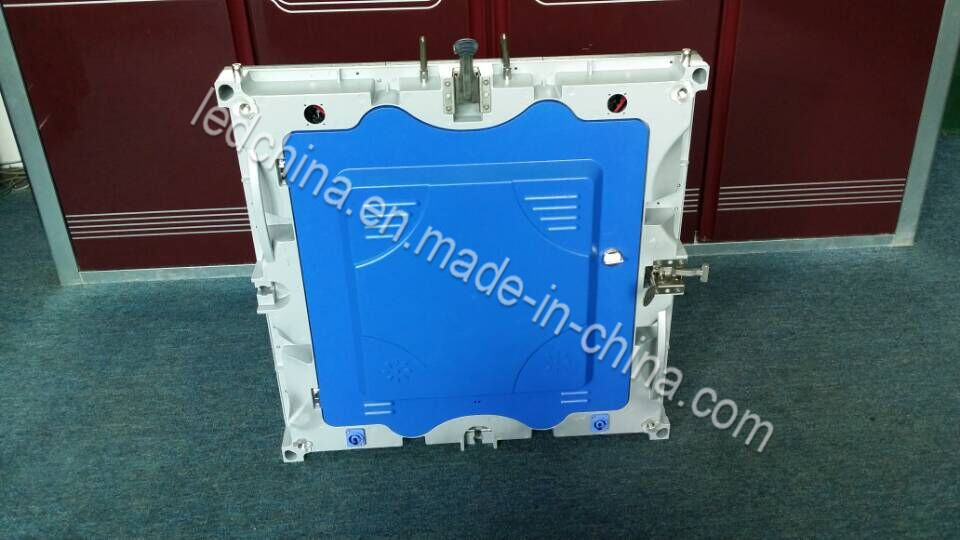

Cabinet Dimension	576mm*576mm
Module Quantity	18pcs
Cabinet Resolution	192*192
Cabinet Material	Iron, Aluminum or Die Casting Aluminum
Best viewing distance	3M~15M
Best viewing angle	120°(H) 60°(V)
Average Power consumption	550W/m2
Max.Power consumption	≤1150W/m2
Current	≤20mA(single LED)
Frame Frequency	≥60Hz
Refresh frequency	≥600HZ
Power Supply Mode	AC220±10% 50Hz/AC110±10% 60Hz
Temperature	storage:-35ºC~+85ºC working:-20ºC~+50ºC
Humidity	10%-95%
Grey scale/colors	256levels of each color(RGB)/16.7M colors
MTBF	≥5,000hours
Screen Lifespan	≥100,000 hours
Screen Plainness	<±1mm
Blind Spot Rate	<0.0001
CPU	Pentium4 or above
Operation system	WIN98/2000/NT/XP
Control method	Synchronization

Shenzhen Seny Technology Co., Ltd. is a professional manufacturer of LED display screens, located in Shenzhen of China, found in 2009.

We specializes in all types of LED display screens, including indoor and outdoor, mono color, bi-color, RGB full-color LED displays. As one of the professional LED Displays manufacturers in China, we combine design, production, technical support, marketing, installation and after-sales service together so as to meet the demands of market, make every client satisfied.

Our LED displays have been widely used in a variety of sites like railway station, bank, hospital, office building, outdoor advertising board, airport, post office, plaza and so on. They play an important role for enterprises' Spreading and service convenience, and become more and more popular in every corner of the world.

Wishing we can build up long-term and reliable business relationship in near future. Contact us today for more information!
