Shenzhen Vteam Co., Ltd. >> P3/P4/P5/P6 Full Color Rental Indoor Small LED Display

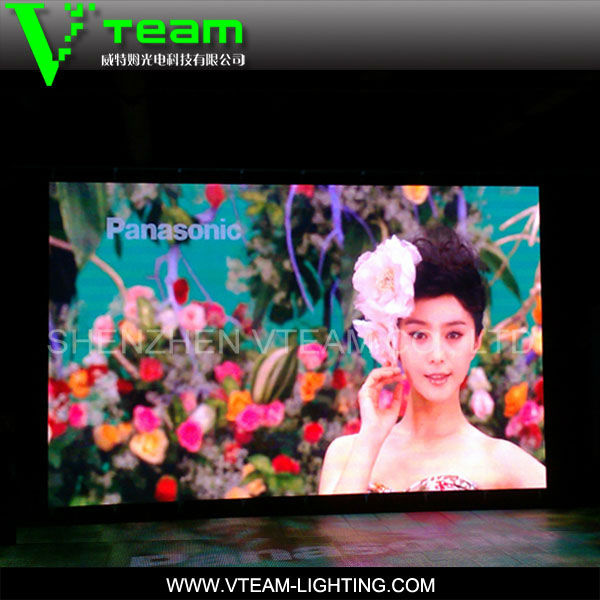

P3/P4/P5/P6 Full Color Rental Indoor Small LED Display

Name: P3/P4/P5/P6 Full Color Rental Indoor Small LED Display
Brand: china-manufacturer-directory.com
SKU: 738239395
Availability: InStock
Rating: 4.7 (52 reviews)

Supplier:	Shenzhen Vteam Co., Ltd.
Price:	US $ 485-1335piece
Min Order:	6piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	Fn
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brightness:	>800 Nit
Weight:	7kg/Panel
Max. Power Consumption:	250W/Panel
Ave. Power Consumption:	125 W/Panel
Cabinet Size:	500X500X72mm
Gray Scale:	>14bit
Refresh Rate:	>1920 Hz
Color Temperature:	8000k ± 500(Could Be Customized)
Input Voltage:	AC 110V/220V±10%
Working Environment:	Temperature -10~50degree, Humidity 10-90%Rh
Display Type:	LED Video Display
Tube Chip Color:	Full Color
Display Function:	Video Display
Scanning Mode:	1/16 Scan
Application:	Live Shows,Concerts
IP Rating:	IP43
Certification:	CE
System Operating Platform:	WIN XP
Pixel Configuration:	RGB 3in1,Black
Pixel Pitch:	3.125/3.57/3.9/4.64/5.2/6.25mm
Pixel Density:	102400/78400/65536/50176/36884/25600dots/Sqm

Product Description

Specifications
1. No noise, quiet when operation.
2. Black LED with high contrast
3. Die-casting aluminum, good heat dissipation
4. CE

Fn Overview

Fn is a high quality product with high definition and soft image. It takes the technology of all die casting aluminum, which is secure and nice in appearance. It's light and each module connected by the special connecting constitution to achieve the fast assembly. Fn is suitably applied in vocal concert, bars, nightclubs, DISCO and supermarket for displaying and advertising use.
Die-casting aluminum, secure and nice in constitution.

Features

1) No fans, mute when operation.

2) Dustproof, IP43.

3) High refresh rate and high gray depth.

4) Completely black LED with high contrast.

5) Standard cabinet size is 500mm x 500mm.

6) Large viewing angle, the panel viewing angle is up to 140, the vertical angle could reach 140, the image won't be out of shape and color cast between the range.

7) Exactly connected and easy to install and dismount.

Item	Fn3.125	Fn3.57	Fn3.9	Fn4.64	Fn5.2	Fn6.25
Pixel Pitch	3.125mm	3.57mm	3.9mm	4.64mm	5.2mm	6.25mm
LED type	SMD1514	SMD2121	SMD2121	SMD2724	SMD3528	SMD3528
Pixel matrix per panel	160*160	140*140	128*128	112*112	96*96	80*80
Pixel density/sqm	102400	78400	65536	50176	36884	25600
Viewing distance	≥4m	≥4m	≥4m	≥5m	≥6m	≥7m
Brightness	≥800 Nit
Weight	7kg/panel
Max power consumption	250W/panel(white balance)
Ave power consumption	125W/panel( normal display)
Panel Size	500mm x 500mm x 72mm
LED Configuration	RGB 3in 1,Black
Viewing angle	Hor: 140 degree Vert: 120 degree
Gray Scale	≥14BIT
Refresh rate	≥1920Hz
Color temperature	8000K ± 500(Optional)
Protection Level	IP43(Optional IP65)
Input voltage	AC 110V/220V ±10%
Working environment	temperature -10~50degree, Humidity 10-90%RH
Lifetime	> 50,000 hours
Certification	CE

SHENZHEN VTEAM Co., Ltd. is a professional ODM LED Screen manufacturer in Shenzhen, China, specialized in creative indoor and outdoor LED screen with experienced R&D team who has been working in LED display field for more than 8 years.

VTEAM screen is popular with the features of light weight, ultra-thin cabinet, transparent structures and widely-used in the application of TV Station, studios, auto shows, music concerts, clubs, discos, building facade, outdoor decorative lighting projects, exhibitions, celebrations etc.

As one of leaders of LED Screen suppliers in China, All products carry CE RoHS certification, with perfect designed products, customized solution, superior product and service guarantee, VTEAM has been highly praised by domestic and overseas customers, we have been shipping qualified products and services to more than 100 countries and regions all over the world, such as in the USA, Russia, Germany, Sweden, France, Netherland, Spain, Canada, Brazil, Mexico etc. The most notable of those successful projects is that we have done the creative "Giant Football" for the opening&closing ceremony of 2014 Brazil FIFA WORLD CUP!

VTEAM Mission: To create value and profit for customers!

VTEAM Vision: Being creative concept pioneer!
