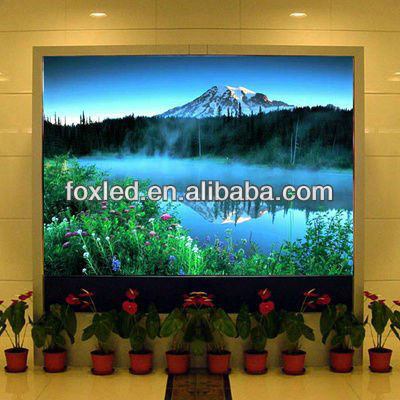

P4 Indoor LED Display Full Color LED Display

Product Specifications

Prod Model:	FOX-P3
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product:	P4full Color LED Display
Size Of Module:	256*128mm
Brightness:	3000CD/Sqm
Waterproof:	IP43 Front, IP43back
Warranty Time:	7years
Item:	Waterproof Video LED Display
Best Viewing Distance:	4-150 M
Colors:	More Than 16.7m Colors
Mtbf:	10000 Hours
Life Span:	More Than 100, 000hours
Tube Chip Color:	Full Color
IP Rating:	IP43
Pixel Configuration:	1R, 1G, 1B
Display Function:	Video Display
Average Power Consumption:	350W / m²
Pixel Density:	10000 dot / m²
Scanning Mode:	1/8 Scan
Display Type:	LED Video Display
Application:	Advertising
Certification:	ETL
Pixel Pitch:	4mm

Product Description

Feature and Advantage
1. Waterproof: IP43 front, IP43 back
2. Best viewing distance: 4-150m
3. White balance brightness: More than 3500CD/sqm
4. Horizontal viewing angle: 120degree
5. Working temperatue: -30degree-+80degree
6. Life span: More than 100, 000hours
7. Contrast ratio: 4000: 1
8. Power consumption: 350W

Application and Market
1. Application
Dual Color LED Indoor led dot matrix Display widely use in stadiums, advertisement, banks, securities exchange, stations, shopping malls, postal offices, schools, restaurants, entertainment, enterprises, highway etc
2. Market:
North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, MID East, Eastern Asia, Western Europe

Payment terms:

Payment terms:	35% deposit before production, 65% balance before shipping -T/T: -Paypal -Western Union -Escrow
Packing:	-Standard Export Carton with fully Polyfoam or Pearl Wool -Flight case; -Anti-shaking wooden case
Shipping:	LED module: 3 to 5 working days upon receiving deposit payment LED display: 5 to 8 working days upon receiving deposit payment
After-Sales-Service:	-Lifetime with professional engineer support for free. -Within 1 year, supply spare parts for free if the machine has quality problem



Our service:
1. Your inquiry related to our products or price will be replied in 24hrs
2. OEM, any your customized lightings we can help you to design and put into product
3. Distributorship are offered for your unique design and our current models4. Protection of your sales area, ideas of design and all your private information



Specification:

Description	Technical  parameter
Unit  module	Module  size	256*128mm
	Pixel  pitch	4mm
	Pixel  density	62,500dots/m2
	Pixel  configuration	1R1G
	Led  specification	Φ 3ellipse
	Pixel  resolution	W: 16dots*H: 16dots
Cabinet	Dimension	768mm*768mm*100mm
	Quantities  of  module	18pcs
	Power  supply	2-6pcs
	Thermal  discharge	Fan
	Total  weight	450kg
	Best  viewing  angle	4-100m
	Temperature	Storage:   -35degree~+85degree
		Working:   -20degree~+80degree
	Thickness	can  adjustable
	Remarks:   cabinet  size  can  changed,   upon  project  need.
Power	Working  voltage	AC220V/110V± 10%
	Average  power  consumption	600W
	Max.   Power  consumption	≤ 1000W/sqm
	Current	≤ 20mA(single  LED)
Control  system	CPU	Pentium4  or  above
	Operating  system	WIN98/2000/NT/XP
	Control  method	Synchronization
Main  technical  parameter	Driving  device	1/16scanning
	Drive  type	Constant  Current  driver  IC
	Refresh  frequency	≥ 400Hz
	Grey  scale/colors	256  levels  of  each  color(R/G/B)/16.7M  color
	Brightness  of  white  balance	More  than  3500cd/sqm
	Brightness  adjustment	256  levels  of  each  color(R/G/B)by  software
	Operating  ambient  humidity	10%--95%
	Video  signal	PAL/NTSC
	Control  system	DVI  display  card+dual color  controller  card
	MTBF	≥ 10, 000hours
	Life  span	≥ 100, 000hours
	Flatness	Tolerance  of  inter pixel  ≤ 0.3mm
		Tolerance  of  modules  clearance≤ 0.6mm
	Power  switch	Automatic  switch
	Display  mode	1024*768
Software	LED  media  player

RFQ:
Q:What is your hot sale product?
A:P10 full color is best selling for Outdoor; P6 full color is best selling for indoor.
Q:What different from 1/4 scaning with 1/8 scaning?
A:1/4 scaning is better than 1/8, the screen will be high definition,high brightness.
Q:What different from LCD with LED?
A:1.LED is more energy save than LCD , have a high definition .
     2.LED have a big viewing angle, it can up to160 degree.
     3.LED can working well in a strong shine day.
Q:How to ensure the good quality of LED display?
A:Optimized structure can improve the efficency of installing screen to create  value;Aging can improve the quality, ensure reliability.
Q:The advantage of  LED SMD
A:1.High resolution  ;2.Big viewing angle; 3.Rugged ; 4.Vivid Mixture Color Effect ;5.Color Consistency;       6.Enhanced Contrast Ratio;7.Mass Production; 8.Long Service Life.
