Price: | US $ 1200/Square Meter |
---|---|
Trade Terms: | FOB |
Min Order: | 5/Square Meter |
Pay Type: | T/T |
Prod Model: | PH4 |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Full Color: | Red&Green&Blue |
Refresh Rate: | High Refresh with Spelized IC |
Driving IC: | Mbi5020 ,Mbi5024 |
Display Type: | LED Video Display |
Tube Chip Color: | Full Color |
Display Function: | Video Display |
Scanning Mode: | 1/16 Scan |
Certification: | CCC |
Pixel Configuration: | 1R,1G,1B |
Pixel Pitch: | 4mm |
Application: | Shopping Guide |
IP Rating: | IP43 |
System Operating Platform: | WIN XP |
Pixel Density: | 62500 |

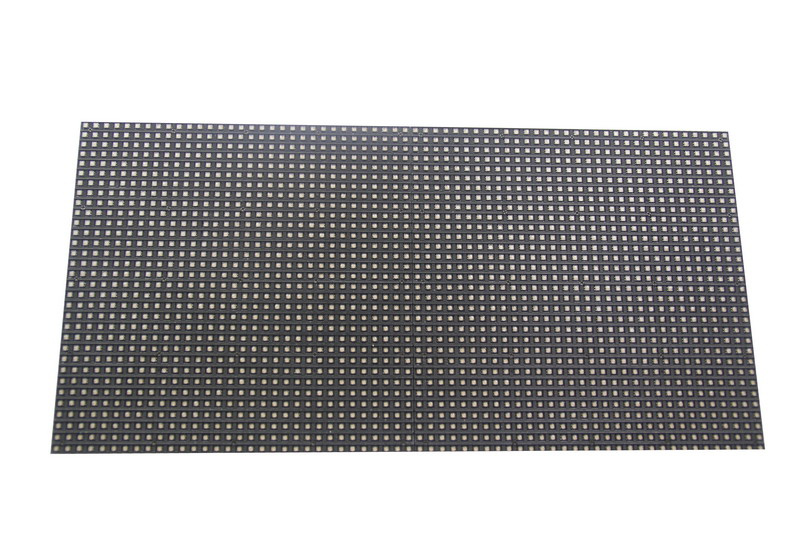

Specitication: | P4 LED Panel Specification | |||||||||||
NO: | Product Name | Specification | ||||||||||
1 | Pixel Pitch | 4mm | ||||||||||
2 | Pixel Configuration | 1R1G1B/SMD2121/0606 | ||||||||||
3 | Density | 625,000 pixel/m2 | ||||||||||
4 | Moduel Size(L×W)mm | 256mm×128mm | ||||||||||
5 | Cabinet Size(L×W×H)mm | 512mm×512mm×130mm | ||||||||||
6 | Module Resolution | 64×32 | ||||||||||
7 | Cabinet Resolution | 128×128 | ||||||||||
8 | Driving Method | 1/16 Scan | ||||||||||
9 | Driving IC | MBI5024 | ||||||||||
10 | Brightness | 1500cd/m2 | ||||||||||
11 | Contrast | 1000:01:00 | ||||||||||
12 | Brightness Adjustment | AC 85-264V | ||||||||||
13 | Power Consumption | Max Power:<1300W | ||||||||||
14 | Average power: <360W | |||||||||||
15 | Cabinet Weight | <12kg | ||||||||||
16 | Color Temperature | 3200K-9300K | ||||||||||
17 | Horizontal Viewing Angle | 120º | ||||||||||
18 | Vertical Viewing Angle | 90º | ||||||||||
19 | Signal Processing | 10 or 14bit | ||||||||||
20 | Grey Processing | 1024×1024×1024 16834×16834×16834 | ||||||||||
21 | Control Distance | Cable100m,Multimode500m,Single mode 2km | ||||||||||
22 | Frame Frequency | 60 Hz | ||||||||||
23 | Refresh Rate | >600Hz | ||||||||||
24 | Control Mode | Synchronous/Asynchronous | ||||||||||
25 | The Opposite Calibration Curve | With Eight Optional Gamma Calibration Curve | ||||||||||
26 | Users can choose the recommended curve, also can be adjusted according to actual situation | |||||||||||
27 | MTBF | ≥50000 hours | ||||||||||
28 | Life Span | 100,000 Hours | ||||||||||
29 | Operating Temperature | Working : 35 - 90% | ||||||||||
30 | Storage : 10 - 99% | |||||||||||
31 | Environment Temperature | -30°C to 60°C; humidity Rh10% to 95% | ||||||||||
32 | Remote Control | Can realize remote control,For the possibility of potential failure logging, and send alarm signal to the operator (need to customize) | ||||||||||
33 | Self-checking Technique | LED a single point of self-inspection, communications test, power test, temperature monitoring (need to customize) | ||||||||||
34 | System Operating Platform | WindowsNT,Windows2000,WindowsXP,Windows7 | ||||||||||
35 | Power Supply | AC 85-264V | ||||||||||
36 | Protection | waterproof, dustproof, high temperatureproof,anti-corrosion, anti-burning,anti-static,shake proof,thuner-proof,the system with smoke alarm and temperature alarm function. (need to customize) |
TeehoLED always pay attention to good service to our customers ."Honest, pragmatic " are our service philosophy and basic principle, also are our promise to our clients.
Pre-sale Services:
1.Provide free consulting, to resolve the confusion from customers and supply technology services free by telephone;
2.Mining and carefully study customer's needs,provide detail and suitable design solutions according to the actual installation environment;
In-sale Services:
1.Try best to meet the reasonable demands by customers;
2.Keep close touch with our clients during the period of installation;
3.Cooperate friendly with client and satisfy our clients with best quality LED display.
After-sale Services:
1.We provide free training to our customers on how to install the LED display, as well as the display system operating;
2.Provide 2-year guarantee for normal products free;
3.Clients can down load and upgrade the related operating software of the LED display freely from our company website,so as to resolve the problems during the using time;
4.Regular follow-up service to our customers, solicit opinions from clients and improve the improvement.
