Shenzhen Noveled Technology Co., Ltd. >> P4 SMD 3 in 1 Indoor LED Display

P4 SMD 3 in 1 Indoor LED Display

Name: P4 SMD 3 in 1 Indoor LED Display
Brand: china-manufacturer-directory.com
SKU: 691258995
Availability: InStock
Rating: 4.3 (108 reviews)

Supplier:	Shenzhen Noveled Technology Co., Ltd.
Price:	US $ 1030-1050/Square Meter
Min Order:	2/Square Meter
Quantity::
Trade Terms:	FOB

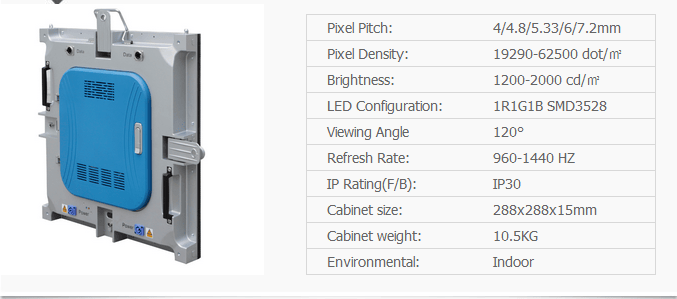

Product Specifications

Prod Model:	p4 SMD 3 in 1 indoor rental led display
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cabinet Size:	576 Mm X 576 Mm X 60 Mm
Module Size:	288 Mm X 288mm
Warranty Time:	2 Year
Cabinet Materail:	Die CAS Alumium T Rental Cabinet
Display Type:	LED Video Display
Tube Chip Color:	Full Color
Display Function:	Video Display
Scanning Mode:	1/16 Scan
Pixel Configuration:	1R,1G,1B
Pixel Pitch:	4mm
Application:	Shopping Guide
IP Rating:	IP43
Pixel Density:	62500
System Operating Platform:	Windows(Win98\Win2000\ Win XP)

Product Description

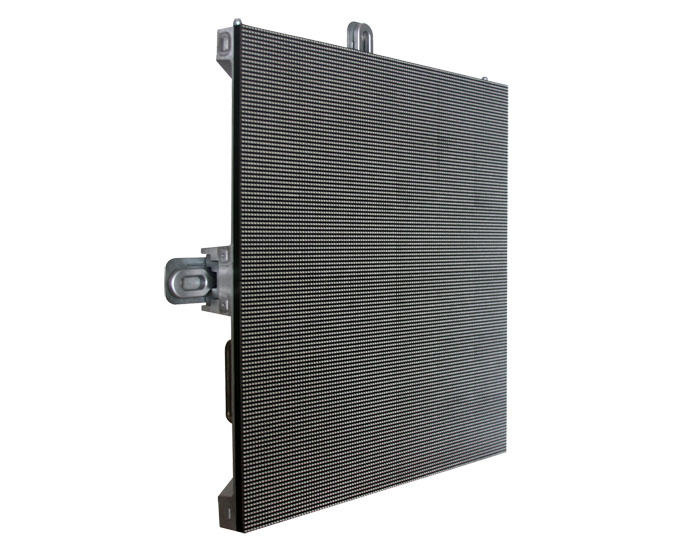

576 MM X 576 MM Die cast indoor rental LED Display

Application :

Advertisement , Government Project , Theme Park, Stadium , Large Exhibition Hall and so on.

Feature

Adopts Die-Casting Aluminum, with additional strengthening bracket inside, anti-tensiling and shockproof, without deformation lasting for 10 years.

Features with light weight, thin body, silent working, and speedy heat venting, with graceful appearance.

Equipped with locks at four sides, can be hoisted and piled up. Smooth and steady.Fast assembling and disassembling

Singnal and power indicator light at outside of the cabinet, working status under watching, immediately response once fault happened

Detail Specification

Parameters	Indoor Die-casting LED display classical series(576*576)
Pixel Pitch (mm)	4 mm	5.33mm	6mm
Pixel density(pix/m2)	43402	35200	27777
LED Type	SMD3528
Viewing Angle	H:140°,V:140°
Brightness(nits)	2500	2500	2000
Drive Method	1/15	1/9	1/12
Color Depth	16bit
Refresh Rate(Hz)	600HZ	1200HZ
Module Size (mm)	288×288
Cabinet Size(mm)	576×576
Cabinet Material	Die-cast aluminum
Cabinet weight(kg)	10.5
Voltage	110/250V
Average.power(W / m2)	170	270	190
Max.power (W / m2)	500	800	560
IP Grade	IP31
Operating temperature/humidity	temperature:-20ºC~ 50ºC humidity:10~90%RH
Storage temperature/ humidity	temperature:-40ºC~ 60ºC humidity:10~90%RH
Lifetime(h)	≥50000
Compliant Standard	CCC,CE,Rosh

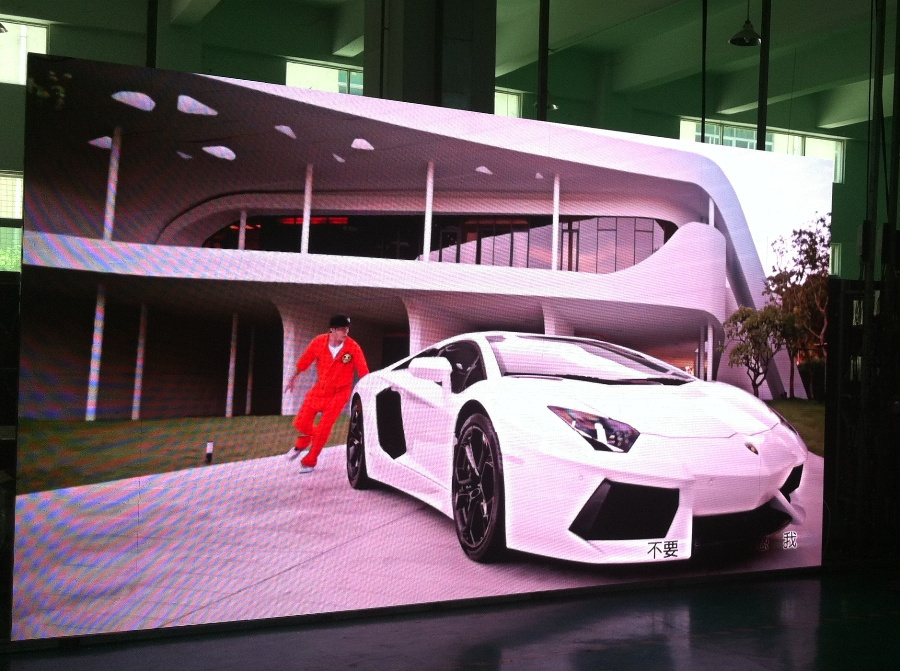

Aging view :

Shenzhen Noveled Technology Co., Ltd ( Noveled ) is a subsidiary of Noveled Group Co, Ltd...Noveled is a national level and high & new technology enterprise which specialize in designing, researching, manufacturing and selling all kinds of LED displays. & LED lighting...

With several years of development, NOVELED own its factory workshop area about 2, 000sqm, professional clean room, Siemens high-speed placement machine, automatic plug Universal, computer intelligence environmentally friendly lead large wave soldering, reflow (8 for 8 microcirculation heat treatment technology), Intelligent glue large stroke machine., monthly capacity is 1000sqm We are an ISO 9001: 2000 company, CE certified, export licence holders. We have the honor to work for hundereds of customers in over 400 cities of 33 provinces in China, and we also have built long-term business relationship with the customers all over the world, for example, PCS Sound in Austria, Screen world in Korea, Mega LED in Turkey, Internacionmidia in Brazil and so on.

NOVELED products widely used in outdoor advertising, cultural and recreational activity, stadium, stage background rental, With its full color LED displays advantages, from the design, productions, installation to the maintenance, Use of comprehensive integration solutions, effectively reduce the overall cost for customers, so as to create more value for customers.

We adhere to the "customer first, quality first, reputation first, " as operating principle. Our assurance is to provide our customers best products with high quality and most reasonable prices above your level of satisfaction.
