Supplier: | Shenzhen Noveled Technology Co., Ltd. |
---|---|
Price: | US $ 1380-1450/Square Meter |
Min Order: | 1/Square Meter |
Quantity:: | |
Trade Terms: | FOB,CIF,EXW |
![]() |
Prod Model: | P4 indoor led display |
---|---|
Markets: | North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Module Size: | 256 Mm X 128mm |
LED Type: | SMD2121 |
Cabinet Size: | 512mm X 512mm |
Warranty Time: | 2 Year |
Best View Distance: | 5m -50m |
Display Type: | LED Video Display |
Tube Chip Color: | Full Color |
Display Function: | Video Display |
Certification: | CCC |
Pixel Configuration: | 1R,1G,1B |
Application: | Shopping Guide |
IP Rating: | IP43 |
System Operating Platform: | Window XP , Window 97 |
Item | Indoor Fixed LED display Series |
Pixel Pitch(mm) | 4mm |
LED type | 2121 |
Module Size(mm) | 256mm x 128mm |

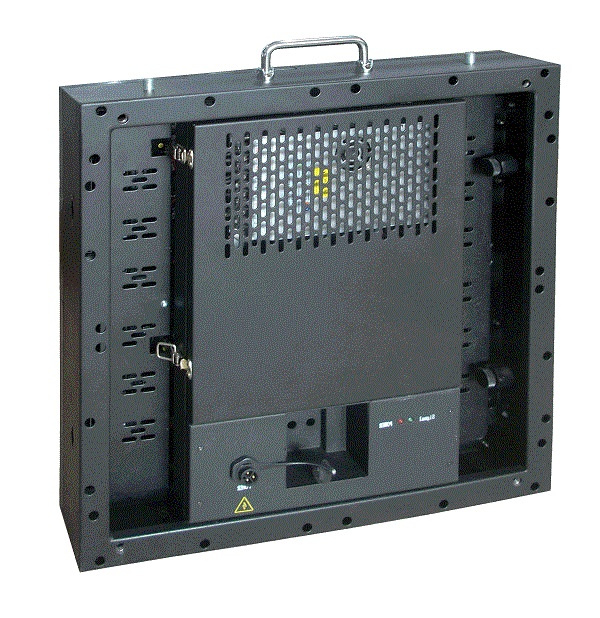

Cabinet Size(mm) | 512mm x 512mm |
Brightness | ≥1800cd/sqm |
Contrasts (Max. /Min.) | 1.1:1 |
Driving Method | 1/16 |
View Angle | Horizontal 120° Vertical 120° |
Optimal Viewing Distance | 3m to 50m |
Brightness Control | Red, Green and Blue 256 Grade/Each |
Fresh Frequency | ≥600Hz |
Frame Frequency | 50 - 60Hz |
Input Voltage | AC220V/50Hz or AC110V/60Hz |
Defects Rate | ≤0.00001 |
Screen Weight | ≤45kg/sqm for Iron cabinet /32kg/sqm for Aluminum cabinet |
MTBF | >10,000 hours |
Life Span | ≥100,000 hours |
Brightness Uniformity | <3% |
Earth Leakage Current | <3mA |
Protective Grade | IP45 |
Temperature-operating | -40ºC~60ºC |
Humidity-operating | 10%~90% |
Operating System | Windows98//2000/NT/XP/win7 |
