P5.2mm Rental Screen Indoor Full Color LED Display

Product Specifications

Prod Model:	3.9mm, 4.8mm, 5.2mm, 6.2mm
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Delivery Time:	25~30 Working Days
Warranty:	2 Years
Cabinet Size:	500X500mm
OEM:	Yes
Tube Chip Color:	Full Color
Display Function:	Video Display
Pixel Configuration:	1R,1G,1B
Display Type:	LED Video Display
Application:	Shopping Guide
IP Rating:	IP40
Certification:	ETL
Pixel Pitch:	5.2mm
Pixel Density:	36864 Pixels/Sq.M
Scanning Mode:	1/12 Scan
System Operating Platform:	Win XP, Win 7, Win 8, Win 8.1

Product Description

P5.2mm Rental Screen Indoor Full Color LED Display


Application

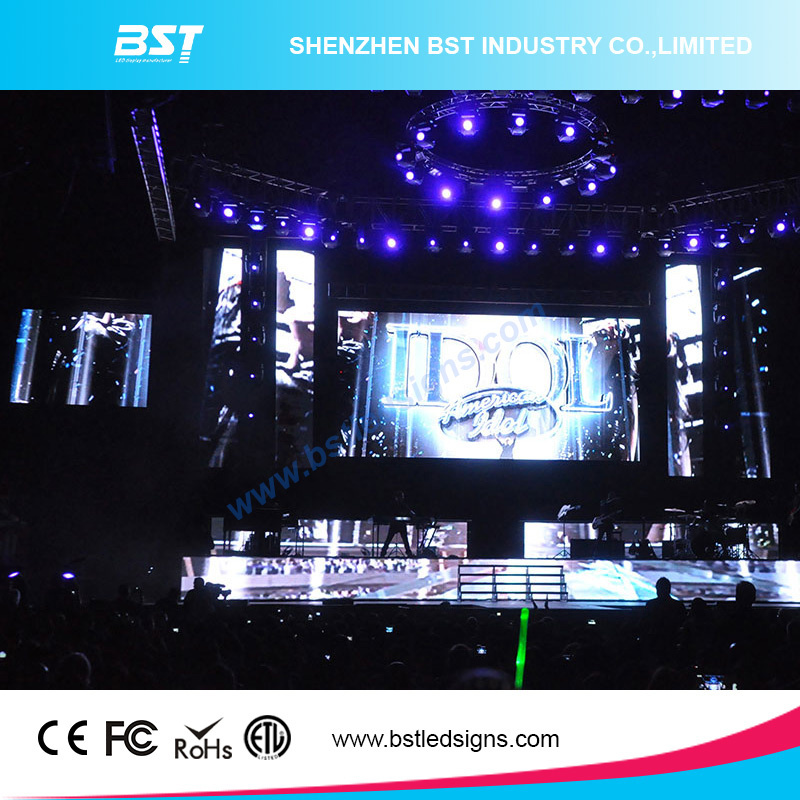

BST SIGN's LED display screen can be widely used in retail store, pubs and hotels, shopping center, TV and broadcasting center, worship, theater, auto show, award and corporate show, concert touring, rental and staging, festival and sports event, art exhibition, press conference etc.

Feature

1. Standard Cabinet design and component design
The size of this LED Screen cabinet is only 500x500mm, adopt industry-standard connector. Reduces maintenance time and costs.

2. Lightweight, ultra slim and Seamless splicing
The weight of this LED Screen is only 7kg, thickness is only 65mm, very easy to transport, stock and install. Seamless splicing advance video performance.

3. Fanless design, silent operation low heat generated
Low voltage input, low heat generated and fanless design, advance LED Screen reliability.

4. Wide Viewing angles, High contrast ratio
Horizontally 140 degree, Vertically 140 degree wide viewing angles


Specification

Model	BST-P5.2-I
Pixel Pitch	5.2mm
Unit Size	500mmx500mm
LED Type	SMD3528
Pixel / Unit	96*96
Unit Weight	7kg
Viewing Angle(H/V)	140°/140°
Application	Storage-40~60° C,   Working-20~50° C
Protection Level(Front/Rear)	IP40/IP21
Power Consumption(AVG.)	320w/m2
Driving	1/12 Scan
Frame Refresh	≥ 60Hz
Data Refresh Rate	>1500Hz
Processing	16bit
Brightness	>1200nits
Power Supply	AC 110/220±10%,  50~60Hz
MTBF	≥ 1, 000 Hours
Life Span	≥ 50, 000 Hours
Pixel Failure	< 0.0003
