P6 Die-Casting LED Display Indoor (576*576mm)

Name: P6 Die-Casting LED Display Indoor (576*576mm)
Brand: china-manufacturer-directory.com
SKU: 684881892
Availability: InStock
Rating: 4.3 (78 reviews)

Supplier:	Enbon Optoelectronics Limited
Price:	US $ 400/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CIF

Product Specifications

Prod Model:	P6
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Cabinet Material:	Die-Casting Aluminum
Market:	Rental Field
Tube Chip Color:	Full Color
Display Function:	Video Display
Pixel Pitch:	6mm
Pixel Configuration:	1R,1G,1B
Pixel Density:	27,777 dots / m²
Scanning Mode:	1/8 Scan
System Operating Platform:	WIN XP
Display Type:	LED Video Display
Application:	Shopping Guide
IP Rating:	IP40
Certification:	UL

Product Description

P6 LED display indoor,die-casting aluminum cabinet,10 KG each,60mm thickness,Novastar system,high refresh rate:2000Hz/s,High contrast rate up to 5000:1,very strong and precise,smooth surface,wide viewing angle.High definition but competitive prices
Features:
1.It is ultra-thin (60mm) and light weight (10KG),can save much costs especially shipped by air.

2.We use black body LED lamp,so the contrast rate is much higher than traditional white body LED lamp.Images on our LED screen looks very sharp.

3. High definition,27777 Pixels/sqm,can show extremely clear and vivid video,images and texts,looking very high end.

4.High strength,high precision due to that the cabinet material is die-casting aluminum,It is Low Tooling Cost, Molding In One, Stable Size, Short Lead Time.

5.Rapid assembling sets, only 3 steps to lock the adjacent cabinets,can save much labor cost

6. The new structure design enables diversified installation,can be hung-up or stacked;

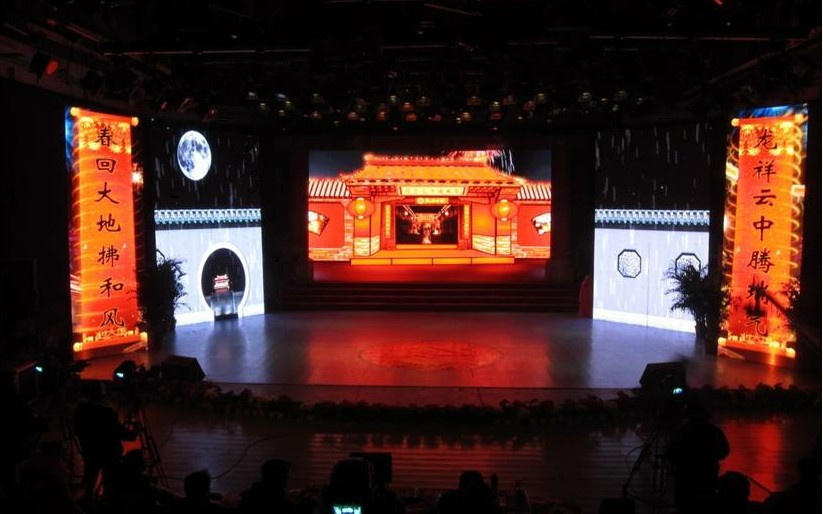

7.The same cabinet can be compatible with different pitches:P4.8/P5.33/P6Some pictures showing as belo for your reference:

The parameters of 576 sereis indoor LED display screen
Pixel Pitch	P4.8	P4.8	P5.33	P5.33	P6	P6

LED Chip	Opto+Silan	Opto+Silan	Opto+Silan	Opto+Silan	Opto+Silan	Opto+Silan

LED lamp type	SMD3528(Black Body)	SMD3528(White Body)	SMD3528(Black Bodoy)	SMD3528(White Body)	SMD3528(Black Body)	SMD3528(White Body)

Pixel density	43402dots/m 2	43402dots/m 2	35200 dots/m 2	35200 dots/m 2	25600 dots/m 2	25600 dots/m 2

Module size	288*288mm	288*288mm	288*288mm	288*288mm	288*288mm	288*288mm

Cabinet Size(mm)	57657660mm	57657660mm	57657660mm	57657660mm	57657660mm	57657660mm

Cabinet pixels(W*H)	120*120 dots	120*120 dots	108*108 dots	108*108 dots	96*96 dots	96*96 dots

Driving Method	1/15 scan	1/15 scan	1/9 scan	1/9 scan	1/8 scan	1/8 scan

Driving IC	MBI5020 / MBI5024 / MBI5053	MBI5020 / MBI5024 / MBI5053	MBI5020 / MBI5024 / MBI5053	MBI5020 / MBI5024 / MBI5053	MBI5020 / MBI5024 / MBI5042 / MBI5050	MBI5020 / MBI5024 / MBI5042 / MBI5050

Refresh Rate	≥1000Hz	≥1000Hz	≥1500Hz	≥1500Hz	≥2200Hz	≥2200Hz

Brightness	≥1100CD/m 2	≥2500CD/m 2	≥1100CD/m 2	≥2500CD/m 2	≥1100CD/m 2	≥2500CD/m 2

Max.Power Consumption	800w/m 2	800w/m 2	1000w/m 2	1000w/m 2	1000w/m 2	1000w/m 2

Average power consumption	250w/m 2	250w/m 2	350w/m 2	350w/m 2	350w/m 2	350w/m 2

Cabinet Material	Die cast Aluminum	Die cast Aluminum	Die cast Aluminum	Die cast Aluminum	Die cast Aluminum	Die cast Aluminum

The weight of single cabinet	10.5Kg/Cabinet	10.5Kg/Cabinet	10.5Kg/Cabinet	10.5Kg/Cabinet	10.5Kg/Cabinet	10.5Kg/Cabinet

ENBON optoelectronics Limited is a High-tech enterprise specialized in R&D, manufacturing and sales of outdoor & indoor LED display. It was established in Jan 15, 2010 covering an area of 1 building with around 150 employees. By bringing in and gathering many experts from this industry, we can keep pace with the development of new technology and are able to provide creative products to meet different requests of our clients'. Right now, Enbon wins good reputation for its various ultra-thin and super-light rental outdoor and indoor LED screens, LED strip/mesh curtains, LED dance floor etc.

All our products have passed CE, FCC and RoHS certificates. 70% of our products are for export. We are an LED company you can count on for good quality and competitive pricing. Besides, you can also expect excellent pre-sale, selling and after-sale services here, which contains professional consultation, free training, free drawings, installation and 2 years warranty. We will inspect our products installed in domestic market periodically.

Enbon is equiped with advanced machines such as Automated Pick & Place machine, High Speed SMT, Wave Peak Soldering machine, Reflow Soldering Machine, High & low Temperature Aging room, Vibration tester, Waterproof tester, Anti-static & dust-free workshop etc. Modern automatic equipment together with our innovative engineers, dedicated workers and experienced sales and services team, we're the right supplier you can trust for good solutions for all your LED display projects.

Contact us for an offer today! Our team will respond in 1 working day. We look forward to be your good partner and grow together!
