Shenzhen Foxgolden Technology Limited >> P6 Indoor Full Color LED Billboard Display

P6 Indoor Full Color LED Billboard Display

Name: P6 Indoor Full Color LED Billboard Display
Brand: China-Manufacturer-Directory.com
SKU: 688864455
Availability: InStock
Rating: 4.9 (79 reviews)

Supplier:	Shenzhen Foxgolden Technology Limited
Price:	US $ 900-1300/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	P6 SMD3in1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Brightness:	2500CD
Tube Chip Color:	Full Color
Display Function:	Video Display
Scanning Mode:	1/16 Scan
Application:	Stage Performance
Pixel Configuration:	1R,1G,1B
Pixel Pitch:	6mm
IP Rating:	IP43
Certification:	RoHS
System Operating Platform:	WIN XP

Product Description

1. Certification: CE, RoHS, UL, SGS
2. Warranty: 7years
3. Support TV, S-Video, DVI, AVI, MOV.
4. High resolution, 10, 000dots/sqm

Description	Technical parameter

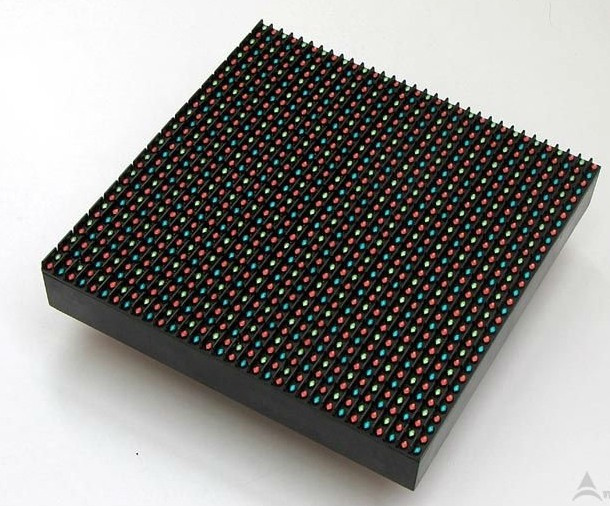

Unit module	Module size	192*96mm
	Pixel pitch	6mm
	Pixel density	27777dots/m2
	Pixel configuration	1R1G1B
	Led specification	3528 SMD 3 in 1
	Pixel resolution	W: 192dots*H: 96dots
Cabinet	Dimension	768mm768mm150mm
	Quantities of module	32pcs
	Power supply	4pcs
	Thermal discharge	Fan*2pcs
	Total weight	40kg
	Best viewing angle	2-100m
	Temperature	Storage: -35~+85
	Temperature	Working: -35~+85
	Thickness	15cm can adjustable
	Remarks: cabinet size can changed, upon project need.
Power	Working voltage	AC220V/110V± 10%
	Average power consumption	200-300W
	Max. Power consumption	≤ 320W/sqm
	Current	≤ 20mA(single LED)
Control system	CPU	Pentium4 or above
	Operating system	WIN98/2000/NT/XP
	Control method	Synchronization
Main technical parameter	Driving device	1/16scanning
	Drive type	Constant Current driver IC
	Refresh frequency	≥ 300Hz
	Grey scale/colors	256 levels of each color(R/G/B)/16.7M color
	Brightness of white balance	More than 2200cd/sqm
	Brightness adjustment	256 levels of each color(R/G/B)by software
	Operating ambient humidity	10%--95%
	Video signal	PAL/NTSC
	Control system	DVI display card+full color controller card
	MTBF	≥ 10, 000hours
	Life span	≥ 100, 000hours
	Flatness	Tolerance of interpixel ≤ 0.3mm
	Flatness	Tolerance of modules clearance≤ 0.6mm
	Power switch	Automatic switch
	Display mode	1024*768
	Communication distance	Unshielded twisted pair net line transmission distance 100m, max transmission distance 200m. Multi-mode Optic fiber transmission distance 500m; Single-mode optic fiber transmission distance 10KM
Software	LED media player
