Shenzhen Noveled Technology Co., Ltd. >> P6 Indoor Full Color LED Display (6mm indoor full color LED screen)

P6 Indoor Full Color LED Display (6mm indoor full color LED screen)

Name: P6 Indoor Full Color LED Display (6mm indoor full color LED screen)
Brand: china-manufacturer-directory.com
SKU: 753495745
Availability: InStock
Rating: 4.8 (129 reviews)

Supplier:	Shenzhen Noveled Technology Co., Ltd.
Price:	Negotiable/Square Meter
Min Order:	1/Square Meter
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	P6 indoor full color led display
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pixel Pitch:	6mm
Moddule Size:	192mm X 192mm
LED Type:	SMD3528
Driver Method:	1/16
IP Grade:	IP43
Warranty Time:	3 Years
Display Type:	LED Video Display
Tube Chip Color:	Full Color
Display Function:	Video Display
Scanning Mode:	1/16 Scan
Certification:	CCC
Pixel Configuration:	1R,1G,1B
Application:	Shopping Guide
IP Rating:	IP43
System Operating Platform:	WIN XP
Pixel Density:	27777

Product Description

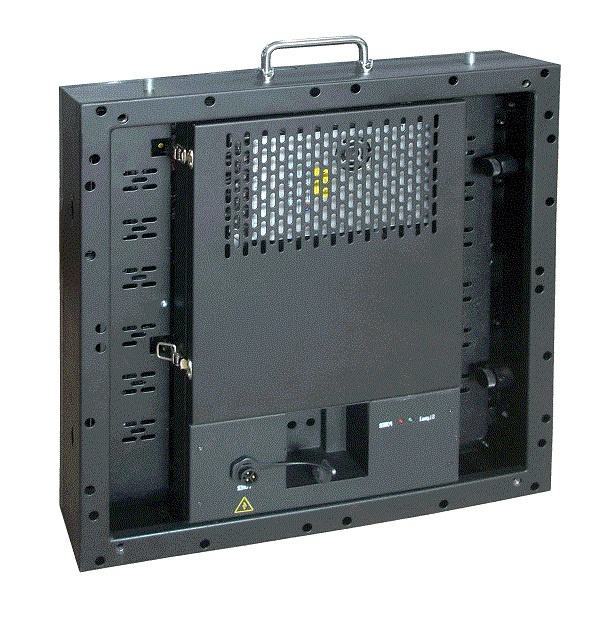

Fix installation Indoor LED Display cabinet back view

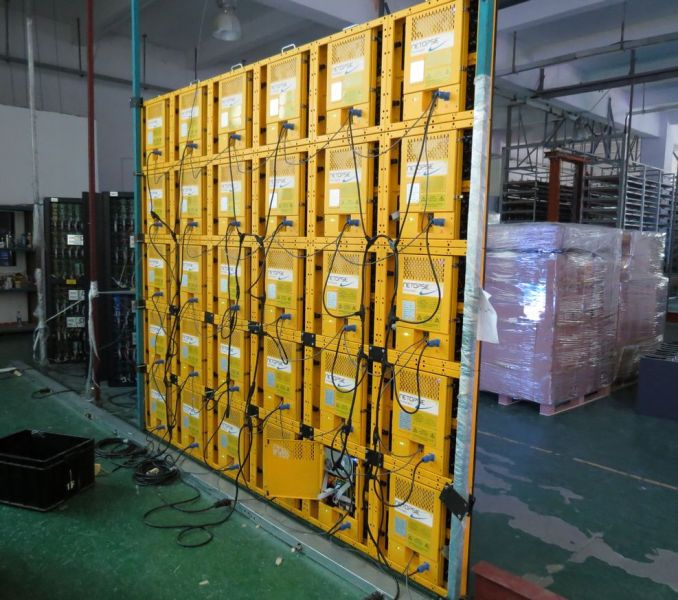

LED Display aging in the factory back view :

Indoor LED Display detail specification

Item	Indoor Fixed LED display Series
Pixel Pitch(mm)	4mm	5mm	6mm	7.62mm	10mm
Pixel density(pix/m²)	62500	40000	27777	17223	17223
LED Type	2020	3528	3528	3528	3528
Viewing Angle	H:140°,V:140°
Color Depth(nits)	1500	1500	1500	1500	1500
Drive Method	1/16	1/16	1/16	1/16	1/16
Color Depth	16384
Refresh Rate(Hz)	1200	1600	1600	1600	1600
Module Size(mm)	256X128x13	160X160x13	192X192x13	244X122x13	244X122x13
Cabinet Size(mm)	512X512X93	640X640X93	768X768X93	732X732X93	732X732X93
Cabinet Material	Iron	Iron	Iron	Iron	Iron
Cabinet weight(kg)	14.5	23	32	30	30
Voltage	110/220V
Average.power(W/m²)	270	160	130	120	120
Max.power(W/m²)	800	480	380	350	350
IP Grade	IP43
Operating temperature/humidity	temperature:-20ºC~ 50ºC humidity:10~90%RH
Storage temperature/humidity	temperature:-40ºC~ 60ºC humidity:10~90%RH
Lifetime(h)	≥50000
Compliant Standard	CE,FCC,RoHS ,CCC

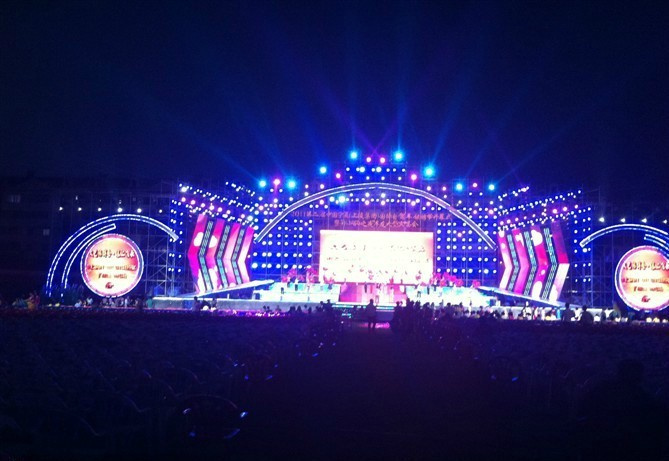

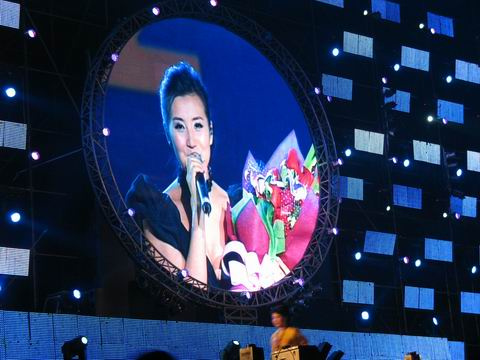

LED Display application :

Bar, playhouse theatre, multifunctional exhibition hall, cafe shop, hotel, stage performances, concert halls, commercial buildings, airports, railway stations, shopping malls and other places.

Shenzhen Noveled Technology Co., Ltd ( Noveled ) is a subsidiary of Noveled Group Co, Ltd...Noveled is a national level and high & new technology enterprise which specialize in designing, researching, manufacturing and selling all kinds of LED displays. & LED lighting...

With several years of development, NOVELED own its factory workshop area about 2, 000sqm, professional clean room, Siemens high-speed placement machine, automatic plug Universal, computer intelligence environmentally friendly lead large wave soldering, reflow (8 for 8 microcirculation heat treatment technology), Intelligent glue large stroke machine., monthly capacity is 1000sqm We are an ISO 9001: 2000 company, CE certified, export licence holders. We have the honor to work for hundereds of customers in over 400 cities of 33 provinces in China, and we also have built long-term business relationship with the customers all over the world, for example, PCS Sound in Austria, Screen world in Korea, Mega LED in Turkey, Internacionmidia in Brazil and so on.

NOVELED products widely used in outdoor advertising, cultural and recreational activity, stadium, stage background rental, With its full color LED displays advantages, from the design, productions, installation to the maintenance, Use of comprehensive integration solutions, effectively reduce the overall cost for customers, so as to create more value for customers.

We adhere to the "customer first, quality first, reputation first, " as operating principle. Our assurance is to provide our customers best products with high quality and most reasonable prices above your level of satisfaction.
