Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Outdoor |
| Tube Chip Color: |
Full Color |
| Certification: |
CE |
| Display Function: |
Digital |
Product Description

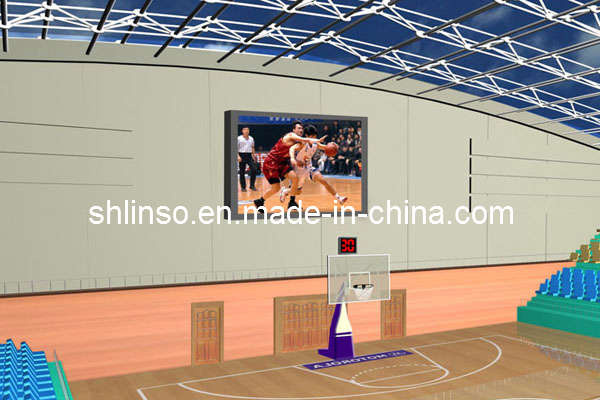

P8 3-In-1 Indoor Full Color LED Display:
Features:
1) With good lightening accordance and no mosaic
2) Can play different formats of image files, flash, WAV/MIDI, video signal from TV, video signal from video and other equipment
3) Different video frequency can be changed freely at the same time, and the image Can be enlarged and reduced
4) High brightness, and can be adjustable, meets the need of changing requirement Of customer in environment
5) Uses real pixels rather than virtual pixels, better viewing effect
|
Main Parameter of LED Public Display |
|
Category |
Parameter |
|
Pixel Pitch |
8mm |
|
Optimum Viewing Distance |
8-20m |
|
Density of Pixel |
15625pixels/sqm |
|
Brightness |
≥ 6500nite |
|
Module Resolution |
32*16 |
|
LED Encapsulation |
SMD5050 1R1G1B |
|
Driving Method |
Real 4 Scan |
|
Optimum Viewing Angle |
H: 120° V: 100° |
|
Module Size |
256*128*22.3mm |
|
Module Power |
25w |
|
Module Weight |
441g |
|
Cabinet Size |
1024*768*173mm |
|
Cabinet Resolution |
128*96 |
|
Cabinet Power |
750w |
|
Cabinet Weight |
42kg |
|
IP Rating |
Front IP65 / Rear IP43 |
|
Refresh Rate |
1000-4000Hz, Different according to the different Driving IC |
|
Luminance Consumption |
Less than 5% after 1000 hours Ageing test, testing current 30mA, under normal temperature25C. |
|
MTBF |
More than 5000hours |
|
Defective Dot Rate |
Less than 0.0001 |
|
Life Span |
More than 100000hours |
|
Working Voltage |
110-240 AC± 10% 50-60Hz |
|
Working Temperature/Humidity |
-30C - +50C/10-90% RH |
|
Storage Temperature/Humidity |
-40C - +60C/10- 90% RH |
|
Input Signal |
RF, S-VIDEO, RGBHV, YUV, YC & COMPOSITION, etc. |
|
Connector |
CAT5 Cable Length≤ 1430m, Optical link Length≤ 20km, Optional |
|
Note: The above parameter is normal for reference, welcome customization. |
Shanghai linso technology co. Ltd devoted to the global low-carbon and energy saving business is a hi-tech enterprise integrated with research, development, production and after-sales service of providing LED solution and LED products including LED display, advertising LED truck and LED lighting etc. With the advanced management mode, powerful R&D ability and rich resources of home and abroad, we are constructing an international LED industry platform. And we are making untiring effort to improve the global living environment and lead the LED industry according to the market demand, industrial chain operating model and completed product system.
Our headquarters is in Shanghai nanxiang high-tech park, and has the branch in Beijing, yunnan, jiangsu and zhengjiang province having more than 200 staff with rich experience, professional skills, outstanding technology and management team. At present our workshop area is about 8, 000 square meters and we spend thousands of million in introducing the automatic production lines and advanced production equipment as well as perfect testing instrument. Our output value is over billion. Enterprise strictly complies with ISO9001: 2008 international quality management system and our product has passed the international and domestic technical testing: CE, 3c, FCC, PSE RoHS certification and so on.
Shanghai linso technology co. Ltd adheres to the high-end product line to establish domestic and foreign trade according to our operation principle "marketing products, marketing brand and marketing network". Marketing policy "internationalization, brand and famous brand" is carried out to break through the high-end market. We enjoy the great global reputation by competitive price and perfect after-sales service! Long business relationship and strategic partnership with more than 60 countries, such as the United States, Japan, south Korea, Brazil, Spain, Italy, Russia, have been built to win the stability of the international market.
Adhering to "colorful life, healthy earth" brand concept, linso technology co. Ltd insists on simultaneously developing product and brand strategy and resolves to be the most trusted LED comprehensive application products and professional LED application solution supplier in the world. Linso is willing to contribute to human "low-carbon, energy saving, green and health" business.
