P8 Outdoor Full Color LED Display Module/LED Display

Name: P8 Outdoor Full Color LED Display Module/LED Display
Brand: China-Manufacturer-Directory.com
SKU: 757307745
Availability: InStock
Rating: 4.5 (94 reviews)

Supplier:	Quanzhou Jiacai Electronic Co., Ltd.
Price:	US $ 21.5-21.8/Piece
Min Order:	30/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	P8
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Module Size:	256mm*128mm
Cabinet Size:	1024mm*768mm
Brightness:	7000CD
Tube Chip Color:	Full Color
IP Rating:	IP65
Pixel Configuration:	1R, 1G, 1B
Display Function:	Video Display
Average Power Consumption:	350W / m²
Scanning Mode:	1/4 Scan
Display Type:	Segment LED Display
Application:	Advertising
Certification:	CCC
Pixel Pitch:	8
Pixel Density:	15625

Product Description

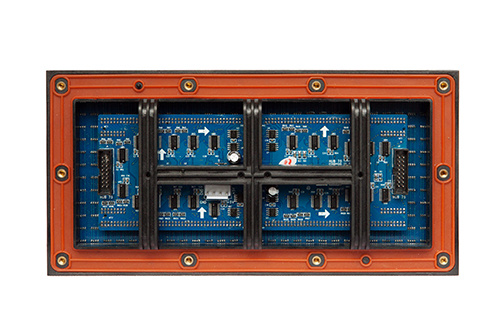

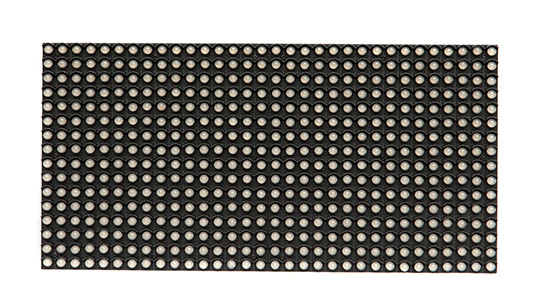

P8 Outdoor Full Color LED Display

1. Large viewing angle
2. Light weight
3, ISO9001,CE , CCC,ROHS Certificates
4.Long lifespan
5.High brightness

Specification

The specifications of modules

Items			Parameter
Product Model			P8 Full Color Led Module
Module size			256mm*128mm
Pixel pitch			8mm
Pixel density			15625dots/m2
Pixel configuration			1R1G1B
Module resolution			32dots(W)*16dots
Module maximum power consumption			25W
Module Thickness			25CM
Module Weight			0.55kg
Driving method			Constant Current Driving
Scanning method			1/4 scan
Interface			HUB75
Brightness			≥6500-7000cd/m2
The specifications of cabinets

Cabinet size			1024mm*768mm
Module quantity			24pcs
Power supply			5V/40A 5V/60A
Cabinet resolution			128*96dots
Optimal viewing distance			8M~100M
Optimal viewing angle			160°(W) 120°(H)
RHWorking temperature			(Work :-20°C~+60°C)
System operating humility			10%-95%
The specifications of power supplier

Operating Voltage			AC220V±10%
Average power consumption			380W/H
Maximum power consumption			≤760W/m2
Electric current			≤20mA(single LED)
The specifications of control card
Control Panels			Pentium4 or above
Operating system			WIN98/2000/NT/XP
Control model			Synchronization with PC
The specifications of the main technical parameters

Driving device			Constant Current Driving
Refresh rate			≥600HZ
Grey scale			RGB Each 256, can display 16.7M colors)
MTBF			≥9000hours
Power switch			Automatic Switch
Display Mode			800600/1024768/1280*900

Our service

1. Your inquiry related to our products or price will be replied in 24hrs

2. OEM&ODM, any your customized lightings we can help you to design and put into product

3. Distributorship are offered for your unique design and some our current models

4. Protection of your sales area, ideas of design and all your private information

5. Top quality+Reasonable price+Responsible After Service=Successful & Win

6. Chipshow can offer you LED stage display, LED outdoor video wall, wedding LED display, stage LED electronic screen and led large screen full color display.

Trade Terms

1. Package: Anti-shaking wooden package, Air flight case or Carton package

2. Payment: T/T, 40% deposits before production, 60% balance to be paid before delivery

3. Shipping freight are quoted under your requests

4. Shipping port: Xiamen, China

5. Warranty time: 1years

6. Delivery time: 3-12 working days

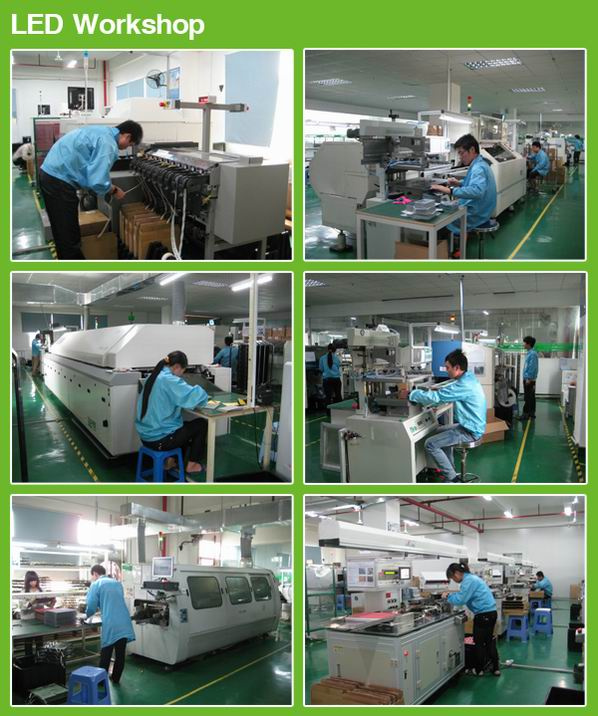

Quanzhou Jiacai Electronics Co., Ltd is a hi-tech company which is located in Fujian Quanzhou. Our factory is founded in 2006, coving an area of 175000 squar meters, with 35PCS producton lines for out door DIP modules, 6PCS production lines for indoor SMD products and more than 1600 skilled workers

Our RD team is composed by experienced experts, specialists and engineers, we can keep pace with the development of new technology and are able to provide creative products to meet different requests of our clients.

Our main products include indoor LED display, outdoor LED display, LED module, LED panel, rental and creative LED Solutions for various applications including sport, advertisement, concert, shopping mall, stadium, exhibition or any other indoor and outdoor events. All our products have passed CE, FCC and RoHS certificates. We are an LED company you can count on for good quality and competitive pricing. Besides, you can also expect excellent pre-sale, selling and after-sale services here, which contains professional consultation, free training, free drawings, installation and 1 years warranty

We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.
