Product Specifications
| Prod Model: |
TZ-415/425/435/445 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description
1. Ivory white plastic grille.
2. Easy to be installed on wall with iron mounting accessories.
3. The crust is easy-clean resin
FEATURES:

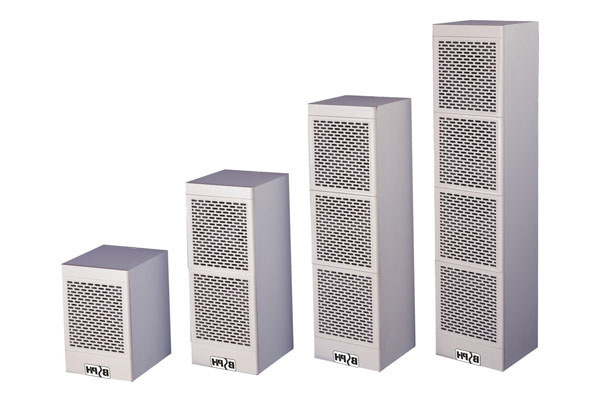

TZ-415/TZ-425/TZ-435/TZ-445 are indoor column speakers of BSPH PA system, with ivory white plastic grille, it is elegant and easy to be cleaned, it looks well with the cross-band panel, there are 4 specifications, 15w, 25w, 35w, and 45w; TZ-415/TZ-425/TZ-435/TZ-445 series indoor column speakers, with built-in 1, 2, 3, or 4 woofers and 1 woofers and 1 tweeter plastic grille, the crust is durable and easy-clean resin, it is easy to be installed on wall with iron mounting accessories, one pushed-type connection board, which can be connected to different wires to get full power, 1/2 power, and 1/4 pore, suitable for indoor installation.
Technical Parameter:
Type
TZ-415
TZ-425
TZ-435
TZ-445
Rated power(PHC)
15w
25w
35w
45w
Max power
25w
40w
55w
60w
SPL
94db
95db
96db
98db
Max sound pressure level
108db
111db
113db
116db
Rated impedance
667Ω
440Ω
286Ω
222Ω
Rated voltage
100V
Frequency response
150Hz-20kHz
Horizontal dispersion
50/180°
50/180°
60/180°
60/220°
Vertoca; Dispersion
10/30°
10/30°
13/30°
13/40°
Dimension(L*W*H)
170*170*240
170*170*410
170*170*570
170*170*740
Weight
2.8
4.8
6.2
7.6
Color
Miliy white
Built-in speakers quantities
One tweeter; 1, 2, 3, 4 woofer
