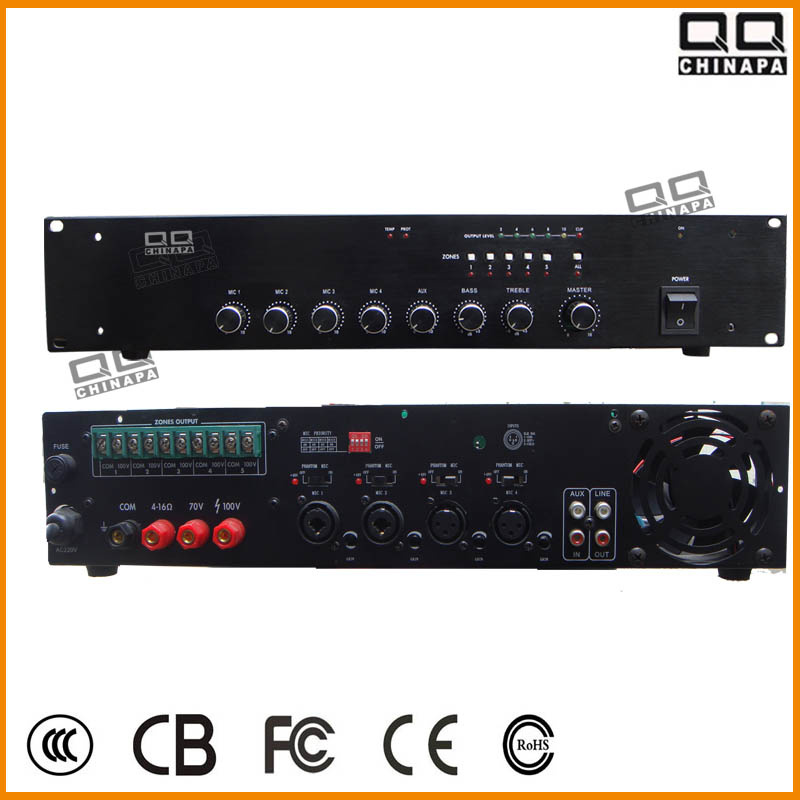

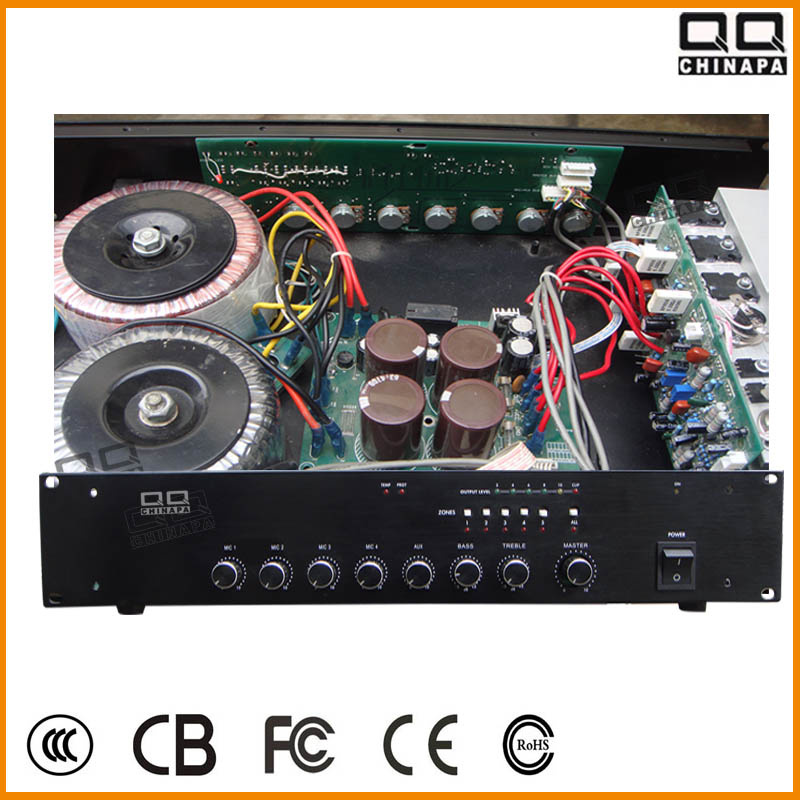

PA Power Amplifier with Master 200W

Name: PA Power Amplifier with Master 200W
Brand: China-Manufacturer-Directory.com
SKU: 686399802
Availability: InStock
Rating: 4.7 (139 reviews)

Supplier:	Guangzhou Lingyin Electronic Co., Ltd.
Price:	US $ 144-155/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,EXW

Product Specifications

Prod Model:	LPA-200V
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power:	300W
Place Of Origin:	Guangzhou ,Cn
Brand Name:	Qqchinapa
Use:	Hotel,School,Airport,Departmen,Church
Certificate:	CE, FCC,RoHS,CB
Protetion:	High Temp,Overload&Short-C
Factory History:	More Than 10 Yearswarranty
Warranty:	3 Years
Deliver Time:	2-25days
Factory Ability:	OEM ODM
Used For:	Professional
Tube Type:	Transistor Amplifier
Sound Channel:	3.1
Output Number:	8
Voltage:	AC 110V
Element Number:	Push-Pull Amplifier
Conductive Mode:	D
Usage:	Public Address System
Function:	PA Amplifier

Product Description

Integrated Power Amplifier with 48V phantom power and 6.3 Jack, with Master
1:48V phantom power and 6.3 Jack, with effort function and Master
2: Four microphone inputs. One auxiliary inputs, and one auxiliary outputs for link.
3: Transformer isolated 100V, 70V and 4-16 Ohms speaker outputs.
4: A five element LED level meter is provided for quick and easy visual monitoring of the sound level
5: Muting function.
6: Individual volume control, low and high tone control
7: Short circuit protection & alarm
8: Individual distributor for each channel
9: Series amplifiers of high output power available.

Model		LPA-60V	LPA-100V	LPA-150V	LPA-200V
Rated power		60W	100W	150W	200W
Line voltage		70-100V,48v	70-100V,48v	70-100V,48v	70-100V,48v
impedance		4-16Ω	4-16Ω	4-16Ω	4-16Ω
Dimension		48536090	48536090	48536090	48539590


Model	LPA-300V	LPA-400V	LPA-500V	LPA-600V
Rated power	300W	400W	500W	600W
Line voltage	70-100V,48v	70-100V,48v	70-100V,48v	70-100V,48v
impedance	4-16Ω	4-16Ω	4-16Ω	4-16Ω
Dimension	48539590	48539590	485483150	485483150

Guangzhou Lingyin Electronic Co., Ltd. is a professional manufacturer specialized in Speaker, Amplifier and Public Address System in Guangzhou, China. And we are also one of the Public Broadcasting suppliers of Beijing Olympic Museum.

Our factory owns a strong R&D team, advanced production lines, and a strict quality control system. There are three brands 'LingBa' "ZQZ "and "QQ China PA"have received CCC, CE and RoHS approvals. Our product range includes: Power amplifier, Speaker amplifier, Line arry, Music mixer amplifier, common mixer amplifier, pre amplifier, power amplifier, assistant unit, ceiling speakers, indoor/outdoor column speaker, garden speaker, art panel, volume control, wireless MIC, PA lectern, IP Network, Wireless broadcast, Professional audio series, Monitor Series and so on.

Moreover, we can offer excellent service, react and customize according to customer's requirements. Adhering the principle of "quality first, reputation first", we sincerely hope to be your ideal supplier.

With high credit standing, best quality products and service system, and the competitive price policy, we sincerely look forward to establishing a stable long-term business cooperation with you.
