Product Specifications
| Prod Model: |
HD-521 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Standards: |
En71, ANSI, UL, ASTM, Ista |
| Specimen Size: |
1000*1200mm or custom |
| Max Weight: |
100kg |
| Amplitude: |
1 inch or 25.4mm |
| Warranty: |
One year |
| Delivery Time: |
15 days after receive the deposit |
| Type: |
Vibration Testing Machine |
| Weight: |
100-500Kg |
| Power Source: |
AC220V |
Product Description

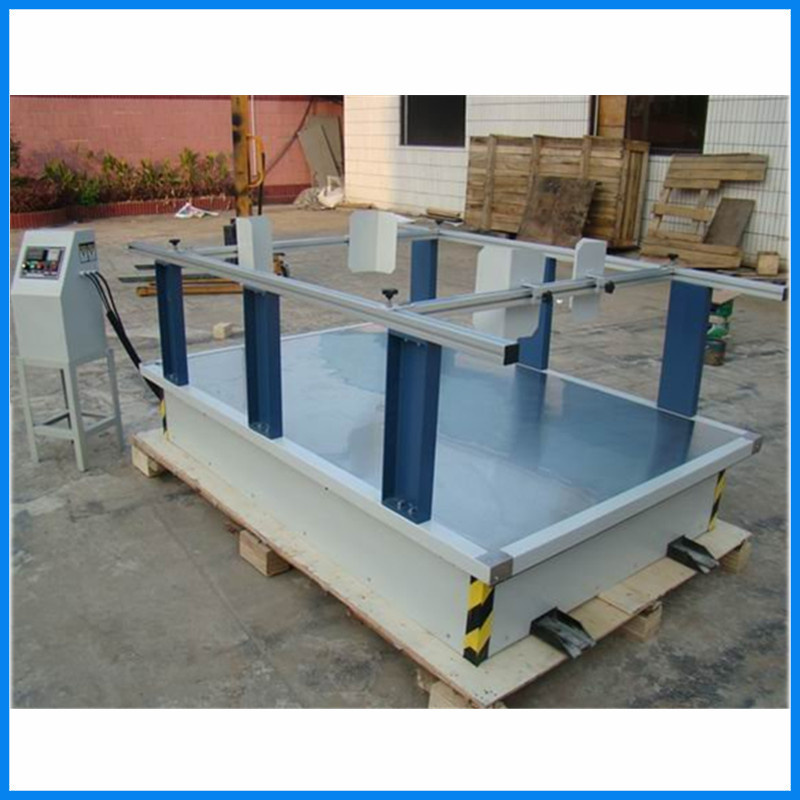

Transport Vibration Tester
The transport vibration tester, which simulates a transportation environment, is applicable to the vibration test of toys, electronics, furniture, gifts, ceramics, communications, packaging, equipment, computer and automobile components, etc.
Features:
1. Low price, which is only 10% of the same products in the USA.
2. The digital screen display the vibration frequency
3. Use rail track for the installation of the test sample, operate easily and safely
4. The pedestal of the machine applies heavy style channel with vibration attenuation pad, convenient, stable, no need to install the land-end screw.
|
Maximum test load |
100kg |
|
Frequency range |
60-300rpm |
|
Amplitude range |
25.4mm |
|
Vibration mode |
roundtrip |
|
Simulation speed |
25-40km/h |
|
Work table size |
1000times 1200mm |
|
Outside dimension |
1255 times 1070 times 660mm |
|
Power capacity |
1HP |
|
Weight |
125kg |
|
Enviromental conditions |
temperature: 5-40º C, relative humidity ≤ 85% |
|
Speed mode |
DC converter or AC Frequency control |
|
Power |
220V, 50HZ |
|
Design criteria |
EN71, ANSI, UL, ASTM, ISTA |
Haida International Equipment Co., Ltd., is headquartered in Taichung. As a comprehensive manufacturer of precision detecting instruments, Haida has contributed to the development of global industry for a long time. In order to better serve clients in mainland China, our company set up factories and offices in Dongguan in the early 21st century. Haida products are widely used in paper products, packaging, ink printing, adhesive tapes, bags, footwear, leather products, environment, toys, baby products, hardware, electronic products, plastic products, rubber products and other industries, and are applicable to all scientific research units, quality inspection institutions and academic fields. Our products meet UL, ASTM, JIS, GB, ISO, TAPPI, EN, DIN, BS and other domestic and international standards.
With advanced processing equipment and exquisite manufacturing technology, our company focuses on human resource development and maintenance and cultivates a strong R&D and manufacturing team, thus providing a strong guarantee for the manufacture of high-quality products. We have always insisted on the principle of "quality first, sincere service". According to customers' needs, we constantly challenge ourselves to be excellent and promote the development of our company. We wish to cooperate with customers all over the world based on mutual integrity. Company Services: Adhering to the business philosophy of "Quality comes from precision; Quality creates the future", all Haida employees serve each client actively and conscientiously in order to meet full customer satisfaction.
