Product Specifications
| Prod Model: |
SGJ-P25W |
| Markets: |
South America,Southeast Asia,Africa,Mid East,Eastern Asia |
| Packing Range: |
5-50kg |
| Packing Speed: |
3-10bag/Min |
| Packing Accuracy: |
+-0.5% |
| Automatic Grade: |
Semi-Automatic |
| Structure: |
Linear |
| Feed Cylinder Structure: |
Single-Room Feeding |
| Material Type: |
Granular |
| Type: |
Weighing-type Filling Machine |
| Filling Valve Head: |
Single-Head |
| Packaging Type: |
Bag |
| Packaging Material: |
Plastic |
| Dosing Device: |
Sensor |
Product Description

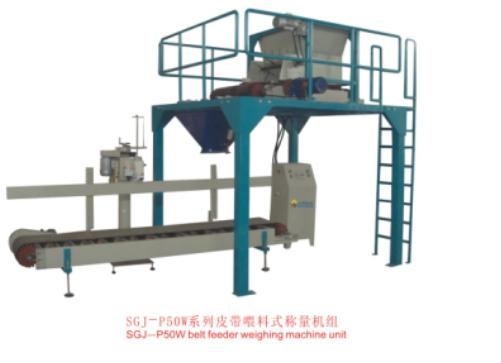

SGJ-P belt feeder weighing machine unit
Applicable Scape:
High speed constant packaging of crystalline, loose bar-like and fibrous and flaky materials of less than 10cm particle size in such sectors as of fertilizer, agricultural chemicals, chemical raw materials, sugar-making, etc.
Technical Parameters: (SGJ-P50W)
Weighing range: 10-50kg
Drive Mode: Inverter-driven motr
Weighing Accuracy≤ ± 0.2%-0.4%
Weighing rate: 240-300bag/h
Power/current: 3Kw/9A
Metering mode: Suspension sensor
Air Supply Pressure: 0.4-0.6Mpa
Frequency/voltage: 50Hz 60Hz /220V 380V
Power supply mode: 3-phase 5-wire system
External dimension(L*w*H): 4200*2000*3000(mm)
Can design as your requirment.
SG packing is one of the most professional fertilizer packing machine manufacutrer in China
Hefei Sanguan Mechanical & Electrical Equipment Co., Ltd. Is located in the national econimic and technological development zone, hefei city, Anhui province, covered an area of 8000 square meters. Since our compnay was founded in 2002, we are becoming a professional manufactue of scientific research, manufacturing, processing, sales of measuring instruments and packageing automatic machinery.
Current our leading product have includ packing machinery in the 9 major series and more than 30 varieties. Products are widely used in chemical industries, fertilizers, fodder, pesticides, washing-powder, seeds, food, medicines, seasonings, tea, building materials and many other industries.
Our products are exported to more than 10 countries and regions, such as Europe, Middle East, Southeast Asia, South Africa. In addition to creat first-class products, Sanguan company always put service at first, providing each customer with the best products, and the most perfect training.
Our company will keep peace with the development of the times, and continue to creat a better tomorrow.
