Product Specifications
| Prod Model: |
KC-SP4-61218C/61418C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Colour Number: |
4 |
| Table Type: |
Conveyer |
| Station Stroke: |
200mm |
| Diameter Of Cup: |
140mm |
| Color & Page: |
Multi-Colour Printing Press |
| Structure: |
Platen Press |
| Plate: |
Gravure Printing |
Product Description

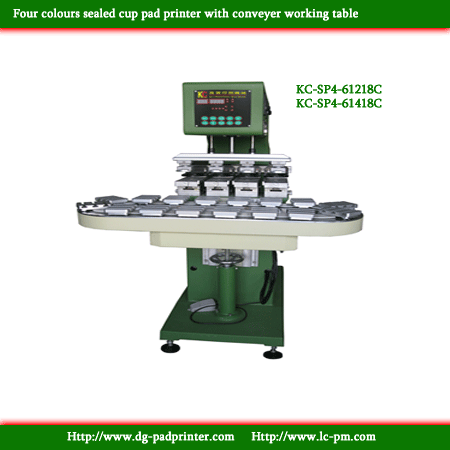

This is a pad printer than printing 4 four colours one time and with conveyer worktable; With sealed cup (sealed cup diameter 140mm) to protect operating envirment and save ink. Coin aluminium structure frame ensure well operation stabilization
Standards Certificate CE
Power Supply 110/220V 60/50Hz 1PHASE
Colour Painted Blue-sky
Specifications
KC-SP4-61218C
1. Max. Plate size: 150× 300mm;
2. Max. Worktable area: 90× 130mm;
3. Sealed cup diameter: Φ 140mm;
4. Max. Printing speed: 900PCS/h;
5. Printable colours: 4;
6. Max print area: 130× 130mm.
KC-SP4-61418C
1. Max. Plate size: 150× 350mm
2. Max. Worktable area: 90× 130mm
3. Sealed cup diameter: Φ 140mm
4. Max. Printing speed: 800PCS/h
5. Printable colours: 4
6. Max print area: 130× 170mm
Advantages
1. Four color printing with conveyer;
2. Microprocessor control with numerical display leads to easy operation;
3. Automatic 5-digit counter installed;
4. Coin aluminium structure frame, the machine is light and sturdy;
5. The speed and the vertical stroke of the pad can be adjusted independently;
6. With sealed cup to protect operating envirment;
7. The extra function "twice inking, once printing" is designed for thicker ink film;
8. For different requirements, the working speed can be adjusted;
9.4-color, 3-color, 2-color, 1-color printing available,
10. The four ink cup can be independently adjusted for color registration;
12. With air jet for fast drying;
Machine Fittings
1. Four thick plates,
2. Four pads
3. Four sealed cups
4. One tool box.
Package List
KC-SP4-61218C
Package dimension: 1.23× 1.17× 1.47
Grossweight: 310kg.
KC-SP4-61418C
Package dimension: 1.19× 1.23× 1.47m
Grossweight: 330kg.
Ship Date By sea:
Within 30 days after receive T/T OR
LC.
Testing Please provide:
1.110V or 220V power supply.
2.5-7 bar compress air.
3. Etching plate 4 PCS.
4. Jig 16 PCS.
5.10-50 PCS product samples
