Product Specifications
| Prod Model: |
WPS-1512DSKC-PT |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Unit Name: |
Sewer Pan and Tilt Inspection Camera |
| Camera Size: |
43mm Auto Pan and Tilt CCD |
| Cable Wheel: |
60m to 120m |
| Monitor: |
15 TFT Monitor |
| Protective Skid: |
110/150/220mm |
| Battery: |
5 Hours Working |
| Case: |
ABS Engineering Case |
| Viewing Angle: |
90 |
| Carry Case: |
ABS Case |
| Sensor: |
1/3 Inch CCD |
Product Description
Pan tilt pipe sewer underwater inspection camera push meter counter
SPECIFICATION ,

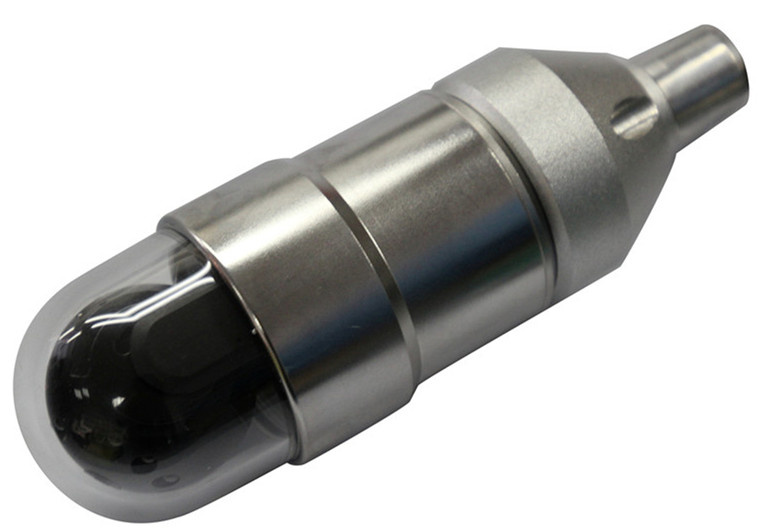

| Camera size | ø43mmX86mm |
| Sensor size | 1/3 inch CCD |
| View angle | 90 |
| Camera light | 12PCS Highlight LEDS |
| Total Pixels | PAL:720X576;
NTSC:720X480 |
| Camera glass material | sapphire glass |
15 inch TFT Color monitor
|
| Monitor Size | 7 inch TFT color monitor |
| Pixels | 1440*234 |
| Monitor Power Supply | DC 12V |
| OSD Language | English |
| Operating Temperature | -10°C to +50°C |
| Up, down left, right adjustable |
| Shock absorber hinges also acts as sun visor |
| 16:9 & 4:3 model |
| Waterproof Connector |
60m-120m push rod cable with wheels
|
| Cable Size | Φ770(L)*371(W)*810(H)mm |
| Wire Material | Fiberglass rod |
| Fiberglass Length | 120m(standard) & as your requirement |
| Fiberglass Diameter | Φ9mm |
| Fiberglass Color | Yellow |
| Cable wheel material | Stainless steel |
Control box
|
| DVR Power Supply | 12V |
| DVR Work Current | 200MA |
| Storage Medium | SD card (max32G) |
| Total Pixels | 720*567(D1) |
| Movie Format | AVI |
| Microphone Audio Record |
| Stereo Earphone Output |
| Digital Clock and Digital Calendar |
| Battery Level Display |
| Picture Sanp and Movie Record |
Battery
|
| Total power | 14W |
| Charge time | 5 hours |
| Protective voltage | 8.1V |
| Used Time | >260minutes |
| 12V 4000MAH rechargeable li-ion battery(18650) |
ABS engineering plastic waterproof carry case
|
| Case Size | L520*W435*H200mm |
| Case Material | Engineering plastics |
| Empty Case Weight | 5.9KG |
| Case Color | Black / orange / green |
Thanks for your attention!
Shenzhen Wopson Electrical Co., Ltd intentionally deals with all kinds of electronics and specializes in security and monitoring system. Wopson has a producing base in Shenzhen, Our main products include CCTV, Special Monitor system & pipe inspection system.
Shenzhen Wopson Electronics Co., Ltd. Deals in all kinds of electronics and specializes in security and monitoring systems. Wopson has a production base in Shenzhen.
Our main products include CCTVs, special monitor systems, pipe inspection systems and DVRs. All of our products conform to CE, GS, BS, UL, FCC, FDA and RoHS certificates, and are exported to Europe, North America, Asia-Pacific Region, the Middle East, South America, etc. By providing high quality products and services for all customers, Wopson has already established good relationships with many leading companies in mentioned regions and received approval and praise from them.
We will try our best to establish good relationships with new customers. All kinds of OEM / ODM orders are warmly welcomed.
