Product Specifications
| Prod Model: |
AC-D90P12-120 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Usage: |
Communication Antenna |
| Directionality: |
Directional Antenna |
| VSWR: |
<1.5 |
Product Description
Spotlight:

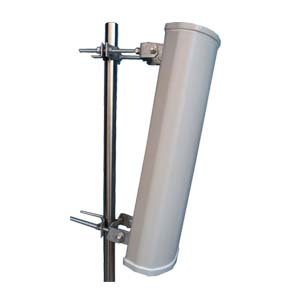

Panel Antenna
Gain: 12dBi
V/H Polarization
ABS Radome
Applications:
AMPS800/GSM900 system
Base station or repeater
Antennas Sector coverage
Features:
Broadband high gain,
Low VSWR provides an adjustable
Angle of pole mounting kit
Electrical Specifications:
Frequency Range: 800-900MHz
Gain: 12dBi
VSWR: ≤ 1.5
Horizontal Beamwidth: 120°
Vertical Beamwidth: 15°
F/B Ratio: > 25dB
Polarization: Vertical or Horizontal
Impedance: 50Ω
Maximum Input Power: 200W
Connector: N Female
Operating Temperature: -40º C to+80º C
Mechanical Specifications:
Antenna Dimension: 1280*260*120mm
Weight: 5.3Kg
Mounting Mast Diameter: Ø 50~Ø 115 mm
Rated wind velocity(m/s) 60
