Omon Group Inc. >> Panel Fasteners

Panel Fasteners

Panel Fasteners
Supplier: Omon Group Inc.
Price: Negotiable/Piece
Min Order: 2000/Piece
Quantity::
Trade Terms: FOB
contact supplier

Product Specifications

Prod Model: OM-PF11/ PF12/PF30/PFC2P/PFS2/PFC3/PFS3/PFC4/PFS4/

Product Description

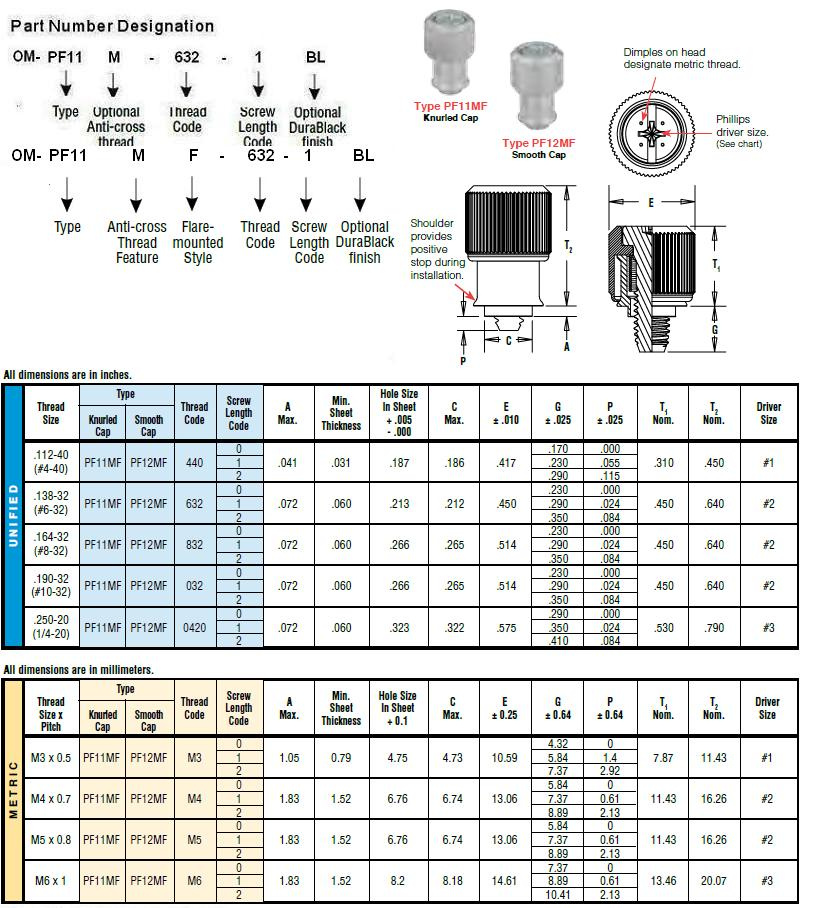

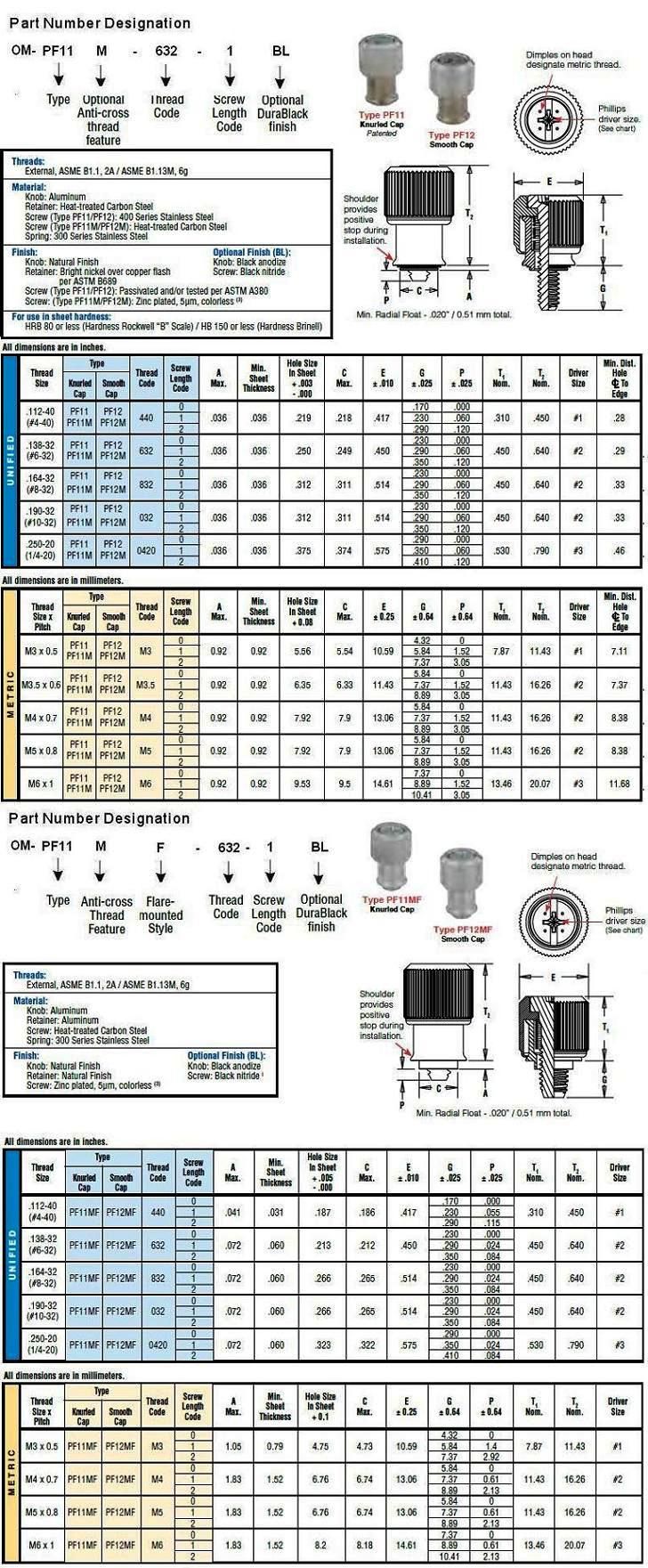

TYPES PF11, PF12, PF11M, AND PF12M PANEL FASTENER ASSEMBLIES
Shoulder on retainer provides positive stop during installation.
Available in self-clinching, flaring, or floating mounting styles.
Available with knurled or un-knurled metal cap, black metal cap, or a custom color plastic cap.

TYPE PF11 FLARE-MOUNTED ACCESS HARDWARE -
Appropriate for close centerline-to-edge applications.
Doesn't require high installation force.
Installs into any panel hardness.
Installs flush on back side of panel.

TYPE PF11 FLOATING ACCESS HARDWARE -
Compensates for mating hole misalignment.
Installs into any panel hardness.


TYPES PFC2 AND PFS2 PANEL FASTENER ASSEMBLIES -
Available in steel or stainless steel.
Meets "operator access area" requirements similar to UL 508.
Tool or finger operation.
Most sizes available in three screw lengths.
TYPE PFC2P RECESSED-HEAD, PANEL FASTENER ASSEMBLIES
Fully concealed-head for tool only access.
UL approved.
Assorted screw lengths for most applications.
TYPE PFC4 PANEL FASTENER ASSEMBLIES FOR INSTALLATION INTO STAINLESS STEEL SHEETS
Installs into stainless steel sheets HRB 88 or less.
Fully concealed-head for tool only access.
UL approved.
Assorted screw lengths for most applications.
TYPES PF50, PF51, PF52, PF60, PF61, AND PF62 LOW-PROFILE,
PHILLIPS DRIVE PANEL FASTENER ASSEMBLIES
Low-profile design satisfies many functional and cosmetic requirements.
Type PF50 with convenient large head and Phillips recess for tool or finger operation.
Available with six-lobe recess.

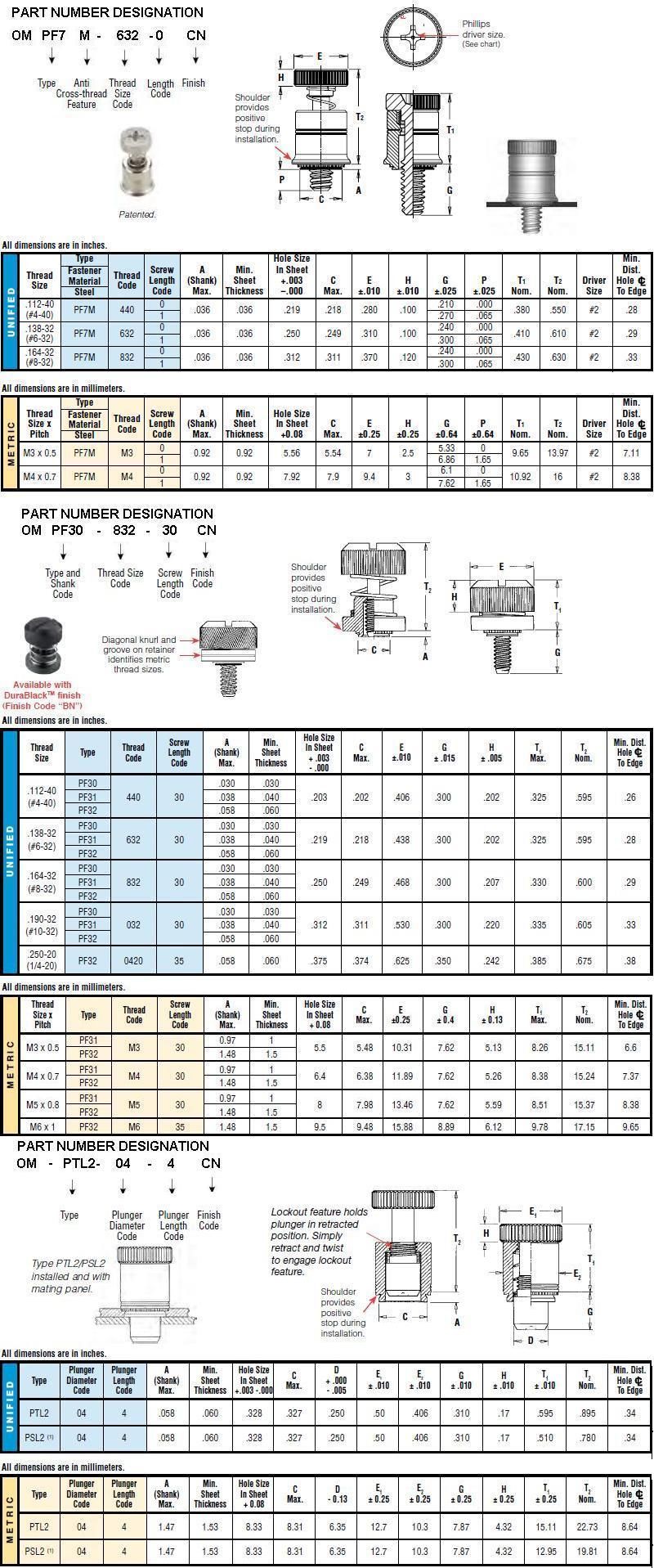

TYPES PF30, PF31, AND PF32 LOW-PROFILE PANEL FASTENER ASSEMBLIES
Low-profile design satisfies many functional and cosmetic requirements.
Convenient, large, slotted head for tool or finger operation.
TYPE PFHV LOW COST PANEL FASTENER ASSEMBLIES -
Low cost design.
Small, compact and low profile design for limited access areas.
Two screw lengths.
Universal slot/Phillips recess standard.
TYPES SCB AND SCBJ SPINNING CLINCH BOLT
Permanently captivates into sheets as thin as .040" / 1.02 mm and greater.
Low cost solution to replace loose hardware.
Available with jacking feature or axial float feature.
Appropriate for close centerline-to-edge applications.
TYPE PF10 FLUSH-MOUNTED PANEL SCREW COMPONENTS -
Type PS10 screw head is flush in sheets as thin as .125" / 3.2 mm.
Type PS10 screw remains captive in retainer when disengaged.
Type PR10 retainer and F10 receptacle nut is for use in sheets of HRB 70 or less.
Type N10 nut is for use in sheets of HRB 80 or less.

TYPES PTL2 AND PSL2 SPRING-LOADED PLUNGERASSEMBLIES
Reverse side of sheet is flush when plunger is retracted.
Quick lockout feature holds plunger in retracted position.
For use in sheets of HRB 80 or less.
Available as Type PSL2 without lockout feature on special order.




INTRODUCTION - COMPANY HISTORY


OMON Group Inc. is a multinational corporation founded in year 2000. It provides a full range of products and services among the various industries globally in a tenet of Customers Satisfaction.

We offer high quality standard such as screws, nuts, washers, rivets, precision lathe parts, panel fasteners, inserts, spacers, stand offs, precision springs, mini-sized clips, stamping parts, etc. In addition, Omon caters fastener OEM services, providing production on non-standard (Customized-Part) providing with customer created drawings or samples.

In year 2009, with our persistence to attain continuous growth, Omon Group has extended the scope of business line together with its new Strategic Partner and founded Omon SHE Electronics Inc. The new product range includes HDMI cable, Display port cable, DVI cable, Serial ATA cable, SCSI cable, USB cable, LAN cable, Power cable and other UL cables. Omon SHE Electronics Inc's high performance and high standard management ensure the quality of these products.

Our determination to exceed the expectations of our customers has inspired us to improve our process and product quality management. The 7S management system has already been implemented within OGI; moreover, all of our products are eligible in line with the ROHS and REACH standards and are mark accordingly; SGS testing reports (third party) are also available for all products (materials and surface processing).

In year 2011, OMON Group Inc. was registered as ECOZONE LOGISTICS SERVICE ENTERPRISE (Warehouse and Logistics) located at Cavite Economic Zone in Rosario Cavite and Light Industry and Science Park 1 Special Economic Zone in Cabuyao Laguna.

At present OMON GROUP INC Philippines operates a total area of more than one hectare warehouse facilities that can cater to interested locators.

As a manifestation of our commitment to our valued customers, OMON GROUP China expanded (in 2012) from an original area of 6000 square meters (acquired in 2006) an additional area of 9500 square meter in an answer to increasing market demands.

OMON GROUP INC complemented by its ever vigilant present work force will enhance its business in accordance with the market conditions as well as the clients' needs. Being a trustworthy supplier is our goal in preserving long-term relationship through our advocacy by "Fastening your Creations^Linking to Innovations".


Vision
To be recognized and respected as one of the leading provider of products and services among the various industries internationally.

Mission
To effectively adhere and comply with the dynamic demands of our clients by way of providing exceptional services and quality products through our professional competence, proficient technical knowledge and skills and to proactively be abreast of the ever changing market environment by giving timely and effective solutions to our customers.


Omon Core Values

QUALITY is our responsibility ^

Excellent quality is our way of life.

We deliver CUSTOMER SATISFACTION ^.

We are committed to satisfy our customer by providing them with high quality products,
extraordinary service and competitive price. We consistently aspire to exceed customer
expectations by continually creating significant innovations.


We work in HARMONY^.

Omon Group's ultimate goal is to maximize the talents and expertise of each employee and to ultimately cast and create one effective and cohesive functioning unit. "We worked together and achieved progress; we will strive together and harder as one to attain further success".


WORKFORCE is our best resources^.

OMON employees are the most valued assets of our company, essential participants with a shared responsibility in fulfilling our mission. We recognize that the quality, motivation and performance of our employees are the key factors in achieving our success
