Yueqing Moller Electric Co., Ltd. >> Panel Meter (ML72-A)

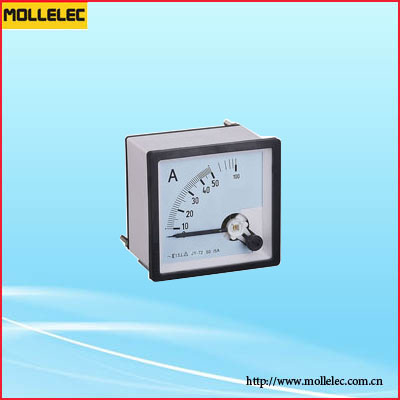

Panel Meter (ML72-A)

Name: Panel Meter (ML72-A)
Brand: china-manufacturer-directory.com
SKU: 713496705
Availability: InStock
Rating: 4.8 (80 reviews)

Supplier:	Yueqing Moller Electric Co., Ltd.
Price:	Negotiable/Piece
Min Order:	50/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	ML72-A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Display Type:	Analog Only
Voltage:	0-500V
Measuring Range:	0-1000A
Type:	Power Meter
Display:	Digital
Electric Equipment:	Three-phase Four-wire
Theory:	Electronic Meter
Installation:	Direct Connected
Usage:	Multi-Functional Energy Meter
Measured Signal:	Continuous Wave
Power Meter Connection:	Terminal

Product Description

1). ML72-A series Panel Meter
2). Dimension: 72mm*72mm
3). Class: 1.0, 1.5, 2.5

The more technical data
Name		precision	normal specification	remark
AC ammeter	A	1.5	0.5-50A	can be diractly connected
	A	1.5	10/5A-800/5A	secondary current passed by current transformer
	KA	1.5	1KA-10KA	secondary current passed by current transformer
AC voltmeter	V	1.5	10V-600V	can be diractly connected
	KV	1.5	1KV-35KV	100V secondary voltage passed by voltage transformer
DC ammeter	µA,mA	2.5	50μA-500μA 1mA-500mA	can be diractly connected
	A	1.5	1A-15A	can be diractly connected
	A	1.5	15A-750A	outer attached shunt 75mV 60mV 50mV
	KA	1.5	1KA-3KA	outer attached shunt 75mV 60mV 50mV
DC voltmeter	V	1.5	3V-600V	can be diractly connected
	KV	1.5	1KV-3KV	outer attached resistance value
Hz meter	Hz	2.5	45-55HZ 55-65HZ 36V.100V 127V.220V.380V
Power meter	W,VAR	2.5	100V 380V 380-380KV 5-10KA/5A	100V secondary voltage passed by voltage transformer
cosφ metert	cosφ	2.5	COS φ =0. 5-1-0.5 100V/5A 220V/5A 380V/5A
Overall dimension: 72x72mm				opening overall: 67.5x67.5mm

We specialize in designing and manufacturing circuit protection products, motor protection products, building electric accessories and low and high voltage products.

We are one of the biggest companies manufacturing and exporting low and high voltage electric products in China. Our productions have been exported to America, Europe, Australia, Africa, the Middle East, and so on.

We have obtained many international certificates, such as CB, CE, SEMKO, and so on. We have superior technology department and we have top test equipment. All goods are made according to the international standards, such as IEC947 and IEC60898.

We are willing to create a better future with you.

Our purposes are as follows:

1, Superior products

Advanced technology, strict quality control system and reliable services make customers worldwide satisfied.

2, Favorable prices

Large-scale production reduces the cost and makes our products more competitive.

3, Timely delivery

4, Perfect service

If you establish business relations with us, we will be your friends forever and try our best to serve you. We aim to help our customers win more customers and enlarge the market. We are looking forward to establishing relationships with you in the near future.
