Product Specifications
| Prod Model: |
SEM055 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Brand Name: |
Saip |
| Model Number: |
Sem055jf/CS/Wl/Mf/Ds/Xl |
| Phase: |
Single |
| Frequency: |
50/60Hz |
| Rated Impulse Voltage: |
6kv |
| Type: |
Energy Meter |
| Display: |
Digital |
| Electric Equipment: |
Single-phase |
| Theory: |
Electronic Meter |
| Usage: |
Standard Electric Energy Meter |
| Measured Signal: |
Continuous Wave |
| Power Meter Connection: |
Terminal |
| Installation: |
DIN Rail |
Product Description

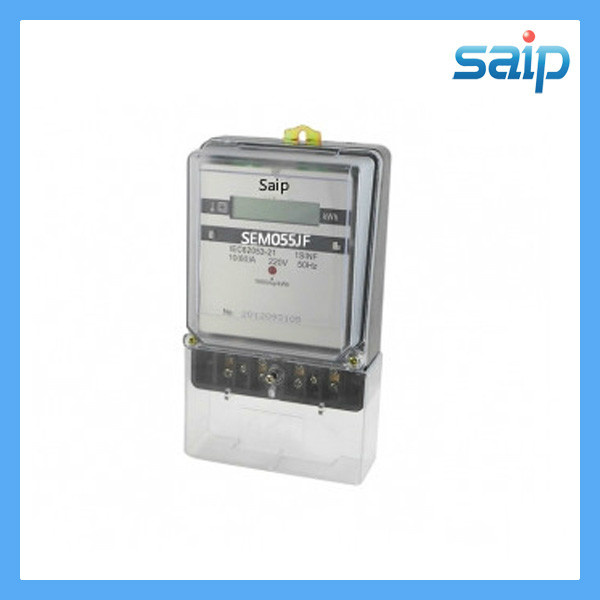

Panel Mounted Single Phase Digital Power Meter (SEM055)
1. Application
The SEM055 series multi meter is front panel mounted single phase electronic active energy meters. LEM055 series multi meter adopts many advanced technologies of research and development, like microelectronic-techniques, specialized large-scale IC (integrated circuit), digital sampling and processing technology, SMT technique, and so on. Their technical performances for the LEM055 series multi meter completely conform to International Standards IEC 62053-21 for Class 1 single phase active energy meter. SEM055 series multi meter can directly and accurately measure the load active energy consumption in the single phase AC networks of rated frequency 50Hz or 60Hz and used indoors or in the meter box outdoors. The SEM055 series multi meter has multiple configurations for option, to be suitable with the various market demands. SEM055 series multi meter has features with excellent long-term reliability, small volume, light weight, perfect appearance, easy installation, etc.
2. Functions and Features
√ SEM055 series multi meter; Front panel mounted in 3 points for fixing, the appearance and dimensions are in accordance with Standards BS 7856 and DIN 43857.
√ SEM055 series multi meter; The meter cover and terminal cover can be made from the transparent anti-ultraviolet PC pressed in a whole-module. The meter bottom and terminal block can be made from the dampproof, fire-retardant, thermostability and good Bakelite, with the features of good weather resistance, high rigidity and excellent insulation, etc.
√ SEM055 series multi meter; 6+1 digits (999999.1kWh) LCD display.
√ SEM055 series multi meter; Can select the maintenance free lithium battery inside for LCD display to read the meter while the power is cut.
√ SEM055 series multi meter; Equipped with a polarity passive energy impulse output terminal, conforming to Standards IEC 62053-31 and DIN 43864.
|
Model |
Accuracy |
Reference
voltage (V) |
Current
specifications (A) |
Starting
current (A) |
Insulation
performance |
|
SEM055JF/CS/WL/MF/DS/XL |
Class 1 |
127 or 230 |
5(30)
10(60)
20(120) |
0.02
0.04
0.08 |
AC voltage test 4kV for 1 minute, 1.2/50us waveform impulse voltage test 6kV. |
