Panel Mounting Straight Plug /Industrial Plug & Socket

Name: Panel Mounting Straight Plug /Industrial Plug & Socket
Brand: China-Manufacturer-Directory.com
SKU: 747260025
Availability: InStock
Rating: 4.6 (85 reviews)

Supplier:	Zhejiang Qixing Electric Technology Co., Ltd.
Price:	US $ 5/Piece
Min Order:	1000/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	Panel Mounting Straight plug
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
IEC Rating:	IEC 60309-1 & 60309-2
Standards And Certifications:	CE/CCC/CB/GS/TUV
Earth Connact Position:	6h
Body Orientation:	Straight
Gender:	Female
Colour:	Blue
Current Rating:	16AMP
Pole Format:	2p+E
Body Material:	Nylon PA6/PA66
Warranty:	1 Year
Standard:	Swiss Standard
Function:	AC Plug
Certification:	CE ,CB
Application:	Industrial
Brand:	Qixing

Product Description

Product Description

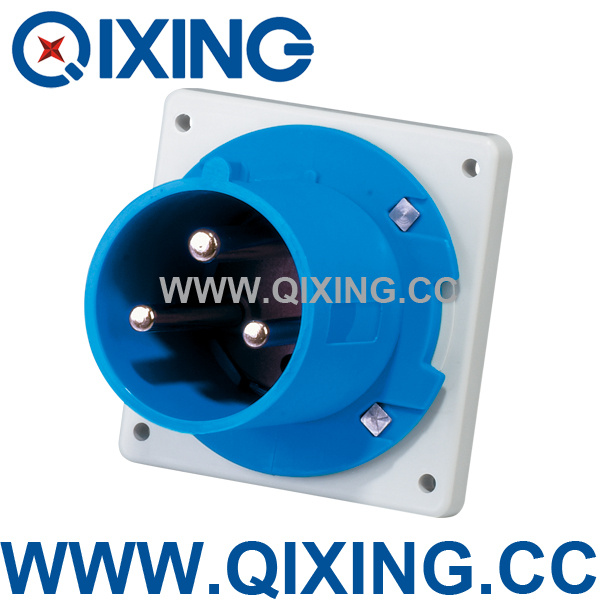

Panel Mounting Straight Plug /industrial plug & socket

Brass with Nickel-plated pin,Pa66/Pa6 material body.
Working Temperture :+40,-25ºC

Rated Voltage: 220-250vV Poles: 3 Rated Current: 16A

Conform to European / International standards EN/IEC 60309-2

Good corrosion protection in aggressive environments and at high degrees of air humidity due to nickel-plated contacts
Highly heat resistant contact carriers
Easy opening and closing of lid though integrated opening aid
Reduced installation time
Practical front and rear locking slides
Large cage type terminals which securely clamp the conductor

Our company focus on bringing in advanced technology and equipment, which adheres to the ISO9001:2000 international quality system, quality certification.To be a export-oriented enterprises, QIXING also get international agencies of Product Certification in the following relevant fields:CB, CE, CCC, TUV, GS, SEMKO, ROHS.We are continuing to introduce high-level technical and business management talents, gradually gain first-class production technology.Company is specialized in industrial plugs, sockets, coupler(connector)and so on.

Once you choice QIXING ,you will get the most reliable cooperator.

Current

Poles

110V
50a.60Hz

230V
50a.60Hz

400V
50a.60Hz

500V
50a.60Hz

>50-500
100-300Hz

>50-500
a.300-500Hz

Packing unit

Weight

3Poles
4h

4Poles
4h

5Poles
4h

3Poles
6h

4Poles
9h

5Poles
9h

3Poles
9h

4Poles
6h

5Poles
6h

3Poles
7h

4Poles
7h

5Poles
7h

3Poles
10h

4Poles
10h

5Poles
10h

3Poles
2h

4Poles
2h

5Poles
2h

QX812

137

Earth Contact Position		6h
Rated Current(A)		16
Poles		3
Dimension(mm)	a b c d e f g. g.1 l	85.7 85.7 72 69.5 69.5 5.5 10 2 32
Conductor crossectional area(mm 2 )Min. To Max		1.5-2.5

Zhejiang Qixing Electric Technology Co., Ltd

CONNECTING CHANGE THE WORLD

Qixing has become a leader in the manufacturing of industrial electrical products in China. Our primary manufacturing facilities are located in Wenzhou, China. Qixing has established sales and distribution organizations in over 20 countries worldwide.

Qixing is an established market leader in the manufacturing of IEC 60309 industrial plugs and sockets, connectors, additional device plugs, additional sockets, socket with swithes and mechanical interlock, dedicated refrigerated container plugs and sockets, and low-voltage plugs and sockets.

In order to achieve the goal of high quality, we have adopted and run with DIN ISO9001: 2000 international quality management system standard.

As an export-oriented enterprise, Qixing also get a range of international organizations' Product certification in related fields: CE, CCC, CB, TUV, GS.

Our objective is to produce products with un-compromised standards in materials, design and performance.
