Product Specifications
| Prod Model: |
BBG |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Car Wall: |
Doubling Safety Glass |
| Type: |
Observation Elevator |
| Speed: |
1.0m/S, 1.6m/S, 1.75m/S, 2.0m/S, 2.5m/S. |
| Capacity: |
800kg and 1000kg |
| Persons: |
8, 10, 13, 20 |
Product Description
BESTER ELEVATOR use
(1)New Generation Permanent Magnet Synchronous Gearless Traction Machine;
(2)Energy Regenerating & Feedback Device;
(3)Top Advanced Door Operator System
(4)The Advanced And Well-developed Control Technology Which make her get the CE CERTIFICATE, ISO9001 and ISO14001 CERTIFICATE And gain the elevator RUNNING EFFECTS as the below:
(1)Effective and Energy saving;
(2)Green environmental protection;
(3)Space saving;
(4)Low noise;
(5)Stable and reliable;

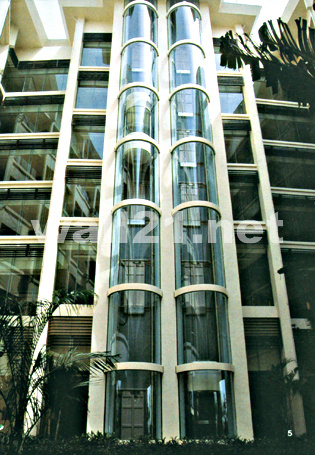

Panoramic Elevator(BGG)
BGG SERIES Panoramic Elevator
BGG-I Square Panoramic Elevator
Specification:
Capacity can be 800kg and 1000kg
Speed can be 1.0m/s, 1.6m/s, 1.75m/s, 2.0m/s, 2.5m/s.
The elevator can be with geared motor or gearless motor or Roomless
Car wall with doubling safety glass
Car floor is PVC or Marble
Function:
Configurable uC based lift controller
Automatic Evacuation in case of mains failure(optional )
Fully collective selective control
Door Light curtain protection
Overload protection
Emergency call system
Rolling direction indicator
Fire Emergency Return
Arrival Indicator and Gong
Car ventilation and light
Attendant Service mode
BGG-II Semi-Circularly Observation Elevator
Specification:
Capacity can be 800kg and 1000kg
Speed can be 1.0m/s, 1.6m/s, 1.75m/s, 2.0m/s, 2.5m/s.
The elevator can be with geared motor or gearless motor or Roomless
Car wall with doubling safety glass
Car floor is PCV or Marble
Function:
Configurable uC based lift controller
Automatic Evacuation in case of mains failure(optional )
Fully collective selective control
Door Light curtain protection
Overload protection
Emergency call system
Rolling direction indicator
Fire Emergency Return
Arrival Indicator and Gong
Car ventilation and light
Attendant Service mode
|
STYLE: BGG |
|
STANDARD DIMENSION (mm) |
LOAD
(kg) |
PEO
PLE |
SPEED |
TOP
HEIGHT |
DIP
DEPTH |
CAR DIMENSION
(mm) |
DOORS
(mm) |
SHAFT
(mm) |
|
W |
D |
H |
W |
H |
W |
D |
|
630 |
8 |
1.0m/s
1.6m/s
1.75m/s
2.0m/s
2.5m/s |
4600
4800
5100
|
1800
1900
2100
|
1100 |
1400 |
2400 |
800 |
2100 |
2000 |
2000 |
|
800 |
10 |
1100 |
1700 |
2400 |
800 |
2100 |
2500 |
2150 |
|
1000 |
13 |
1100 |
1880 |
2400 |
900 |
2100 |
2500 |
2300 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Bester devote herself to provide the most advanced elevator and service to our users...Our porcducts include commercial elevator, residential elevator, observation elevator, hospital elevator, villa elevator, goods elevator, vehicle elevator, dumbwaiter elevators, escalators, passenger conveyor etc. The small machine room elevator, machine roomless elevators, high speed elevators, hydraulic elevators satisfy the specific needs of different users.
Bester and Swiss lift Electronics AS working together to design and develop the high quality elevator that is suitable for the China needs. It uses the European standards EN115 & EN81 to design and product, and has achieved the international standards in the field of automatic control system, energy saving, security system design fields. The product qulilty is under the effective control of international standards, such as ISO9001, ISO14001, ISO18001, CE, TUV certification.
