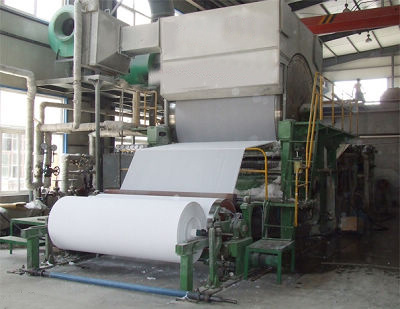

Product Specifications
| Prod Model: |
1575mm |
| Markets: |
South America,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Raw Material: |
Virgin Pulp, Waste Paper |
| Model: |
1575mm |
| Capacity: |
2-4 T/D |
| Process: |
Paper Machine |
| Usage: |
Household Paper Machine |
| Sheet Former Type: |
Cylinder Mould |
| Paper Thickness: |
Thin Paper |
| Condition: |
New |
| Type: |
Paper Processing |
| Certification: |
ISO |
Product Description
Paper making equipment and pulping process flows:
The process flows of toilet paper: Waste paper or wood pulp--high concentration aquapulper--high frequency vibrating screen--pulp pump--hydrascreen -- bleacher -- propeller-- pulp pump -- efficient double disc pulp grinder -- pulp pump-- centrifugal screen -- pulp pump -- slag separator -- 1092 type paper machine -- full-automatic rewinding perforating machine -- band saw paper cutter -- sealing machine -- marketing
Technical data:
Output paper: High & medium grade of toilet paper
Output weight: 18_40G/M2
Net width: 1600mm
Wire width: 1950mm
Capacity: 2-4 T/D
Working speed: 150m/min
Rail gauge: 2400mm
| Number | Equipment | Quantity |
| 1 | 1575mmsingle-cylinder& single-wire toilet paper machine | 1 set |
| 2 | Exhaust hood of the dryer can(double layers) | 1 set |
| 3 | φ 850 screw type ventilator | 1 set |
| 4 | Sealed pressure vat | 1 set |
| 5 | 15 type roots pump | 1 set |
| 6 | suction box | 2 sets |
| 7 | 3m 3 high consistency hydrapulper | 1 set |
| 8 | 1.8m 2 high frequency vibrating screen | 1 set |
| 9 | 35m 3 bleacher | 2 sets |
| 10 | 450 double type pulp grinder | 1 set |
| 11 | φ 700 Thruster | 5 sets |
| 12 | 606 sand cleaner (6 pcs) | 1group |
| 13 | Double head-box feed pump-100 | 6 sets |
| 14 | Double head-box feed pump-150 | 4 sets |
| 15 | Rewinding& embossing& perforating machine | 1 set |
| 16 | Toilet paper cutting machine | 1 set |
| 17 | The whole set of work bench | 1 set |
| 18 | 2T boiler | 1 set |
Zhengzhou guang mao machinery manufacturing Co., Ltd. is located in zhengzhou city, China. We are a leading and professional paper machine manufacturer in China.
We specialize in the manufacture of paper machines, paper processing machines and paper machine parts.
Our company has perfect service system. We have experienced engineer teams, who can supply perfect service during the whole deal, including technology consultation, civil work design, project evaluation; Installation and testing the whole production line; Training engineers and workers; Meanwhile, we also supply spare parts for long time and manufacture machines in accordance with customers' special requirements.
1. Following is main introduction of our company:
(1) total area of factory: 20, 000m2;
(2) total qty of workshop: 4;
(3) workers: 110 workers;
(4)engineer qty: 25 engineers;
2. Why you choose us?
(1) professional engineer team with 30years experience;
(2) we can supply you turn -key solution without any trouble;
(3) we have strict quality control system and ensure there is no unqualifiedly product;
(4) professional installation technician and clear technical training for your workers;
(5) strict recalling system: If any problem of machine, we will recall it and change a new one for free;
3. About shipment:
1. Sea transportation and rail way transportation is our main shipment way.
2 the delivery time is decided by your the machine model, we can also adjust delivery time according to your special requirement;
We hope to establish friendship and business relationship with friends from all over the world.
