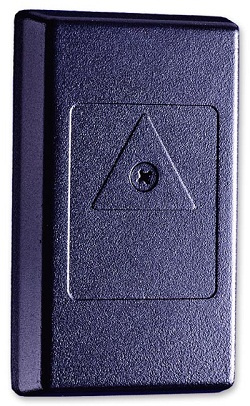

PARADOX Safe Protector PA-950, Vibration Sensors
Description:
The Paradox Safe Protector is designed for security applications on metallic cabinets, cashboxes, safes and metallic doors. The Safe Protector can also be used to protect the
Concrete walls of bank depositories and other locations that require high security. The Safe
Protector is installed directly on the protected surface and will react to a wide spectrum of
Vibrations.
Features:
1. HIGH-SENSITIVITY PIEZOELECTRIC ELEMENT.
2. FIVE SENSITIVITY SETTINGS
3.2.5M (8FT) PROTECTION RANGE
4. TAMPER RECOGNTION/ Anti-tamper switch
| Name: | Paradox Safe Protector/High-Sensitivity Piezoelectric Vibration Sensor(PA-950) |
| Model: | Paradox PA-950 |
| Operating Voltage: | 10-16 VDC |
| Current Consumption: | 16mA (typical) |
| Operating Temperature: | -20°C to +50°C (-4°F to +122°F) |
| Adjustable Sensitivity: | 100% |
| 70% |
| 50% |
| 40% |
| 30% |
| Alarm Relay: | 28V / 150mA |
| Tamper Output: | Normally Closed 24V / 0.2A |
| Maximum Hunidity: | 95% at +25°C (+77°F) |
| Dimensions: | 109mm x 64mm x 23mm
4" x 2.5" x 0.9" |
| Weight: 2 | 260g (9oz) |
| protection range | 2.5m (8ft)
|
