Parking Management and Parking Guidance System

Name: Parking Management and Parking Guidance System
Brand: china-manufacturer-directory.com
SKU: 714859965
Availability: InStock
Rating: 4.3 (46 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,EXW
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

Product Specifications

Prod Model:	PGS-320
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

Product Description

TUS-100 ultrasonic parking lots detector is used to detect weather the vehicles is being or not with the set distance by the way of ultrasonic reflection. The work principle is according to the ultrasonic which was send from up to down by the ultrasonic detector, detect exactly weather every park lot is occupied or not and the information will be send at last.

2. Ultrasonic Detector Features:

L Industrial design
L Advanced ultrasonic detect mode
L The advanced way of detection is used. The misforecast question caused by the outside disturbance or the environment changing is hard to be happened like the other detection way of infrared way or microwave;
L With Highly Anti-disturbance capability to avoid wrong judgment.
L Easy to install and maintain.
L The adjustable height range is 1.0m to 3.5m.
L The height brightness diode indicator light indication detective status;
L 1S or 5S of sign output delay can be choosing through the outer switch.

Ultrasonic Detector/ Indicator (TUS-200)	Installed above every lots, use ultrasonic ranging principle collecting real-time status information of every slots and transmit these information to collection terminal (PGS-320).
Ultrasonic Detector/ Indicator (TUS-200)	Installed in front of each slots and connected to the ultrasonic detectors, it will be red when there is one car; it will be green when there is no car. The driver can find empty slots quickly guided by green lamp.

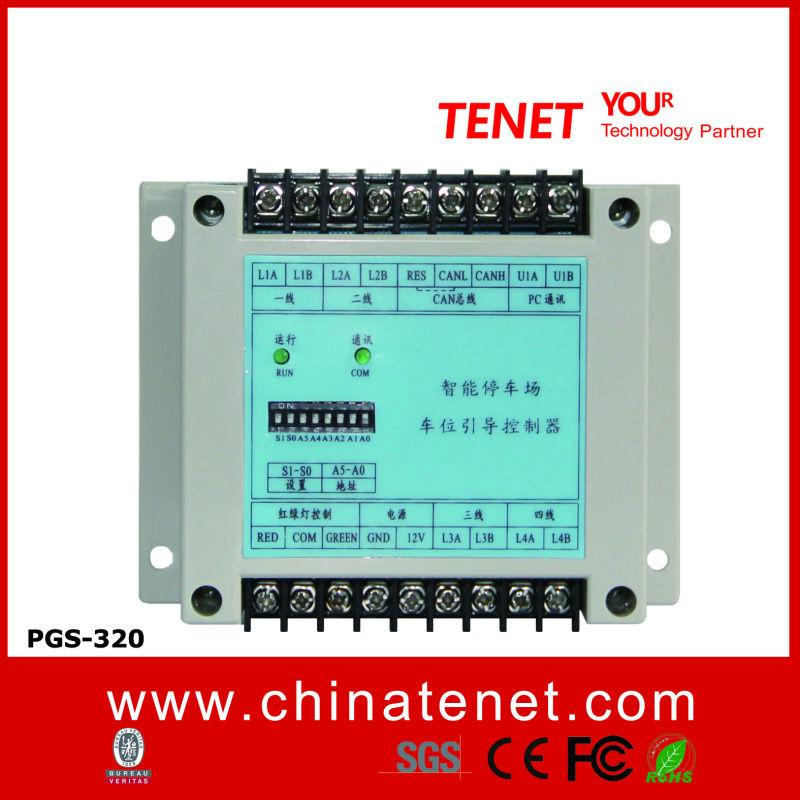

Lots Guidance Controller PGS-320	Parking guidance controller is the important part of system. It ' s used to manage ultrasonic detector as group and circularly inspect detector information monitored by it. Then it will real time transmit related information to centre controller. One PGS-320 has 5 lines RS-485 bus; every line of RS 485 can connect 32 units of ultrasonic detector. One PGS-320 can control maximum 160 units of ultrasonic detector.
Data Centre Lots Guidance Controller PGS-320	Data center is the core of the whole system, and terminal number is 0#. It is mainly used in parking lot to handle and process slots data, and then it transmit the processing results to LED guide screen showing slots information. By CAN bus, one data centre can control less than 62 units of slots guidance controller. It can be connected to PC terminal, and also can be independent offline operation.
Indoor LED Guidance Display (TED-600)	with a dynamic digital and fixed words real-time displaying mode, it receive and display the empty slots information sent by the data center real-time. It can work 24 hours. Can set up different address to show empty slots information in different area, and the arrow can be set eight directions.
Outdoor Entrance LED Guidance Screen	Outdoor LED display is made by high brightness LED module, drive circuit, control circuit, bracket and so on. with a dynamic digital and fixed words real-time displaying mode, it receive and display the empty slots information sent by the data center real-time. It can work 24 hours and can set up different address to show empty slots information in different area.
Slots Guidance System Software	The software is optional. After one time setting, it do not need to connect to computer when you do not need record the data. Digital maps is embedded into software, which directly reflect the use of the parking slots It can analyze traffic flow and utilization rate as time period according to real-time collection data.

Shenzhen Tenet Technology Co., Ltd. is a professional intelligent parking equipments manufacturer. Our company has a high-quality and professional R&D team which focused on designing and developing parking equipments over 10 years. We can provide stable and reliable equipments and good services for many system integrators and contractors.

Company"s main products: TCD series automatic card dispenser, TLD series loop detector, TCR series card collector (Ticket Checking Machine Core), parking guidance system, LED display screen, UHF remote card readers, intelligent control motherboard, and so on. The products are widely used in intelligent parking system, highway automatic toll station system, road and bridge toll station system, electronic police system, automatic ticket vending system, Intelligent card Vending System, tourist attractions and show ticket system.

We firmly believe that we will bring the greatest potential development and maximum profits for our customers. We will do our innovation for customers, development demands, do our technology research and product developing for customers' profits.
