Product Specifications
| Prod Model: |
Q69 Series |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Control: |
PLC |
| Warranty: |
1 Year |
| Machine Type: |
Steel Shot Blasting Machine |
| Layout: |
Horizontal |
| Kind: |
Dry Sandblaster |
| Colour: |
Selectable |
| Principle: |
Sand |
| Size: |
Selected |
| Function: |
Metal Procesing Machine |
| Type: |
Steel Shot Blasting Machine |
Product Description
Product Description
Feature:
Designed and produced by adopting the advantages of similar products from both within the country and abroad.
The rusting cleaning part adopts high-efficient blast wheel and full shutter type shot sand separator.
The sweeping machine adopts specially made high-strengh nylon rolling brush and high-pressure ventilator.
The preheating and drying parts may adopt various heating methods.
The paint spraying part adopts high-pressure airless spraying method.
Complete set of equipment is controlled by PLC, and is the large-size complete equipment of international advanced level
It's mainly used for surface treatment (namely preheating, rust removal, paint spraying and drying) of steel plates and various structural sections, as well as for cleaning and strengthening of metal structure parts.
Note:
As we are an integrated company, we sell our products direct to customers without any extra agent charges. Hence, our price is relatively lower than others.
Moreover, we are using the most advanced equipment and technology, in order to produce equipments with high quality.
Detail:
Introduction
Protecting plate
The cabinet of main impacting district has the high wear-resistant steel manganese 13(Mn 13). This protecting plate is our new research, installing more simply and repairing more conveniently.
Sealed steel import and export
Given the specific characteristics of the workpiece cleaning, shot blasting machine designed for quick exchange of the door of the chamber body. When the clean-up of large-diameter workpiece, the replaced door Sandy; When cleaning small diameter of the workpiece when the door to put on small-ore.
Workpiece drive mechanism
Shot blasting machine of this type can be assigned a variety of workpiece drive mechanism,Such as Tire,V-Ramp Roller and so on.
Blast wheel
This machine's blast wheel installed in the suitable location of the cleaning cabinet(Side or Top). It can be very good clean-up different diameter of the workpiece.
Shot recycling & purifying system
This system can be divided into the Abrasive recycling system and purify System, they consist of abrasive hopper, Abrasive conduit, shot valves (Blast wheel Assemblies), screw conveyors, bucket Elevator, abrasive /dust and separator, etc.
Dust-removing system
This system consists of collector,fan and connecting pipes(from the clean-up room,separator to the collector) and so on. Connecting pipe equipped with butterfly valves for regulating the air volume, so that the work of the various parts of equipment to achieve the best state, so that no dust in the course of their work spillover.

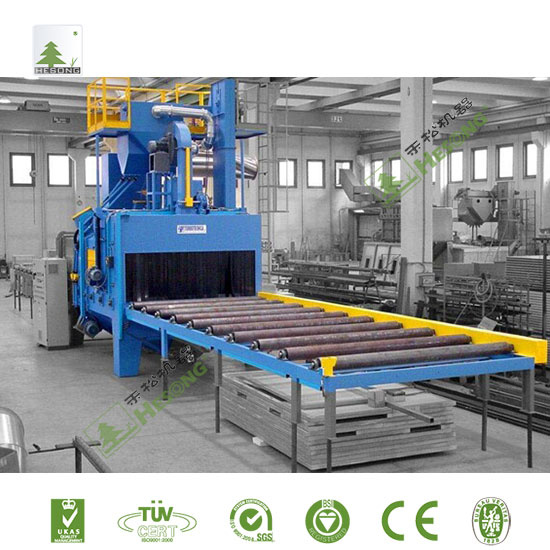

Another form of Steel pipe surface shot blasting machine. Two Shot Blast wheel in the browser layout of the upper body. Work side of the workpiece while rotating through the shot blasting clean-up room.
Other roller throuth type shot blasting machine Paramter:
| Parameter | Q698 | Q6912 | Q6915 | Q6920 | Q6925 | Q6930 | Q6940 |
| The effctive cleaning width(mm) | 800 | 1200 | 1500 | 2000 | 2500 | 3000 | 4000 |
| Dimesion of inlet opening | 1600*800 | 1200*400 | 1700*400 | 2200*400 | 2700*800 | 3200*800 | 4200*400 |
| The length of cleaning workpiece(mm) | 1200-12000 | 1200-1600 | 1200-12000 | 1200-12000 | 3000-12000 | 2400-12000 | 4500-18000 |
| The thickness of cleaning steel sheet(mm) | 0.5-4 | 0.5-4 | 0.5-4 | 0.5-4 | 0.5-4 | 0.5-4 | 0.5-4 |
| Shot ball flow rate(kg/min) | 4*120 | 4*250 | 4*250 | 6*250 | 6*250 | 6*360 | 8*360 |
| The shot ball first loading(kg) | 4000 | 4000 | 4000 | 4500 | 4500 | 8000 | 11000 |
| Roll brush adjusting height(mm) | 200 | 200 | 350 | 450 | 650 | 850 | 900 |
| Air capacity(m3/h) | 22000 | 17560 | 19000 | 19550 | 27758 | 28050 | 38000 |
| Total power(kw) | 90 | 78.3 | 113.5 | 156.6 | 204.8 | 224.55 | 293.6 |
If the above model not suit for your workpiece, please tell me your need and the following information then we will send you the best technical drawing to you.
1. The max. Length of the workpiece.
2. The max. Width of the workpiece.
3. The max. Height of the workpiece.
4. The productity you need to blasting the workpiece ( how many T or piece per day or per month?)
5. The power supply you need ( such as 380V, 3P, 50HZ)
6. Better to send us the workpiece photo or drawing.
