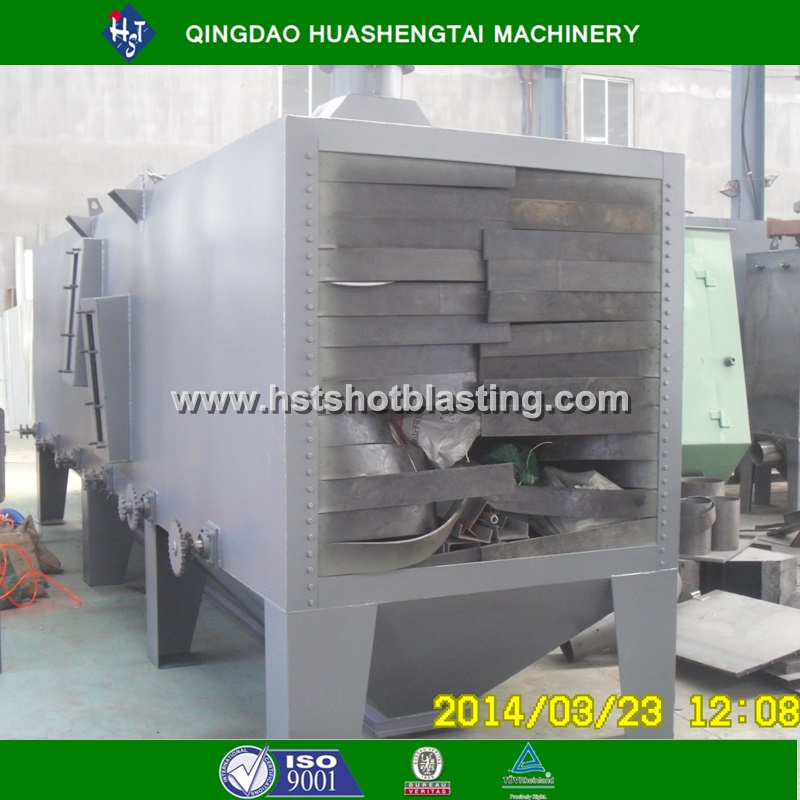

Pass Through Type Shot Blasting Machine /Heavy Section Shot Cleaning Machine
Product Specifications
| Prod Model: |
HQ |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Overall Size: |
According to Requirement |
| Type: |
Pass Through Type Shot Blasting Machine |
Product Description
Roller pass through type shot blasting machine
This kind of shot blasting machine is suitable for processing large H-beam, Steel structure, etc. to eliminate internal stress, rust and burnish surface of work pieces.
1. Using Japan centrifugal blast wheel technology with a large volume, high velocity projectile significantly improves the cleaning efficiency, can get a satisfactory cleaning quality.
2. Using computer-aided design (CAD) drawing, selection and arrangement of blasters is more reasonable. Improve the projectile utilization and labor productivity,
ensure the cleaning effect, reduce the attrition for the chamber body guards.
3. Using rolled steel plate Mn13 in chamber body, easy replacement and long lifespan.
4. Splitter used by BE full curtain separator technology of the U.S. Panbang En company, have good separation.
5. Projectile control system using our homemade gas control valve control, simple and reliable.
Model |
HQ698 |
HQ6910 |
HQ6912 |
HQ6915 |
HQ6920 |
HQ6925 |
HQ6930 |
HQ6940 |
The effective cleaning width(mm) |
800 |
1000 |
1200 |
1500 |
2000 |
2500 |
3000 |
4000 |
The room feed-in size(mm) |
800*1600 |
1000*1600 |
1200*400 |
1500*400 |
2000*400 |
2500*600 |
3000*600 |
4000*400 |
The length of cleaning workpiece(mm) |
1200-12000 |
1200-12000 |
1200-6000 |
1200-12000 |
1200-12000 |
3000-12000 |
2400-12000 |
4500-18000 |
The speed of wheel conveyor(m/min) |
0.5-4 |
0.5-4 |
0.5-4 |
0.5-4 |
0.5-4 |
0.5-4 |
0.5-4 |
0.5-4 |
The thickness of cleaning steel sheet (mm) |
3-60 |
3-60 |
3-60 |
1.5-60 |
3-60 |
3-60 |
3-110 |
4.5-110 |
Steel specification (mm) |
700*1500 |
900*1500 |
1200*300 |
1500*300 |
2000*300 |
2500*500 |
3000*500 |
4000*300 |
The quantity of shot blasting (kg/min) |
8*180 |
8*200 |
4*250 |
4*250 |
6*250 |
6*250 |
6*360 |
8*360 |
The first enclosed quantity (kg) |
4000 |
4000 |
4000 |
4000 |
4500 |
4500 |
8000 |
11000 |
Roll brush adjusting height (mm) |
200 |
200 |
200 |
350 |
450 |
600 |
850 |
900 |
Air capacity(m3/h) |
22000 |
20000 |
17560 |
19000 |
19550 |
27758 |
28050 |
38000 |
Overall dimension |
|
|
|
|
|
|
|
|
Total power(kw) |
100 |
138 |
78.3 |
113.5 |
156.6 |
204.8 |
224.55 |
293.6 |
Weight(kg) |
|
|
|
|
|
|
|
|
l Technical team support to provide suitable proposal according to customer's requirement;
l Skilled workers and advanced production equipments to ensure high quality products;
l Training programs for operating and maintenance;
l Installation and commissioning of new machine;
l Timely problem solving support with direct line by 24/7;
l Spare parts supply with lowest price for all of supplies equipment.
Qingdao Huashenghai Shot Blast Machinery Co., Ltd, locating in the west coast of the beautiful coastal city Qingdao, is an industrialization entity with scientific research, development, production and operating integration. We have engaged in casting machinery for more than 20 years, thereby gain profound cultural background and the technical essence, great research and development ability, advanced production technology, perfect detection means, scientific management system. As the professional manufacturer of casting machinery industry, our technology, quality and automation level is ranking in the advanced level in the same domestic industry.
Our main products are HQ37 Series Hook Type Shot Blasting Machine, HQT 37 Hook Passing Through Type Shot Blasting Machine, Q32 Series Robber Track Crawler Type Shot Blasting Machine, GN Series Metal Track Type Shot Blasting Machine (8GN\12GN\15GN \ 28GN), HQ Series hanger chain Type Shot Blasting Machine (HQ38 \ HQ48 \ HQ58), HQ Series Cylinder Type Shot Blasting Machine, HQ Series Rotary Table Type Shot Blasting Machine(HQ35 \ HQ36 \ HQ76), HQG Series Steel Pipe Internal and External Wall Shot Blasting Machine, HQ69 Series Roller Pass Through Type Shot Blasting Machine, HQH69 Series H-beam Shot Blasting Machine, HX Wire Rod Shot Blasting Machine, HST Series Portable Shot Blasting Machine, Shot Blasting Machine Wear-resisting spare parts. All our products are computer aided designed (CAD); It is the best choice for the casting, metallurgy, automobile, shipbuilding, construction, mining machinery and engineering machinery and other fields with the best cost performance. We also can design and manufacture all kinds of large sized non-standardized casting machinery and undertake turnkey project including designing - manufacturing - debugging - training - services. Our Wear-resisting parts are the most complete varieties, the highest technical content, and the largest production and sales volume in the current domestic industry. Our company, which is committed to the promotion and application of new materials and technology, is the excellent supplier for many national famous casting machinery and distribution companies.
We committed to keep the leading position in the industry, implement the positive "Famous Brand" strategy, the "Total Quality Management", and the ISO9001-2000 international quality system certification. We committed to the promotion and applications of new materials and new technology, constantly strive for product excellence and perfect service. Our company, taking the tenet of "integrity, pragmatic, innovation, win-win", and the ides of "market-oriented, excellence pursuit, people-oriented, society serving", will serve the different industries with the high quality and efficient production services, and offer your business with the ever firm supports!
