Product Specifications
| Prod Model: |
PR2 Plus |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Dimensions: |
(W× D× H) 384× 296× 204 Mm |
| Technology: |
24-Pin DOT Matrix |
| Copies: |
Original + 6 Copies |
| Noise Level: |
< 54 Dba |
Product Description

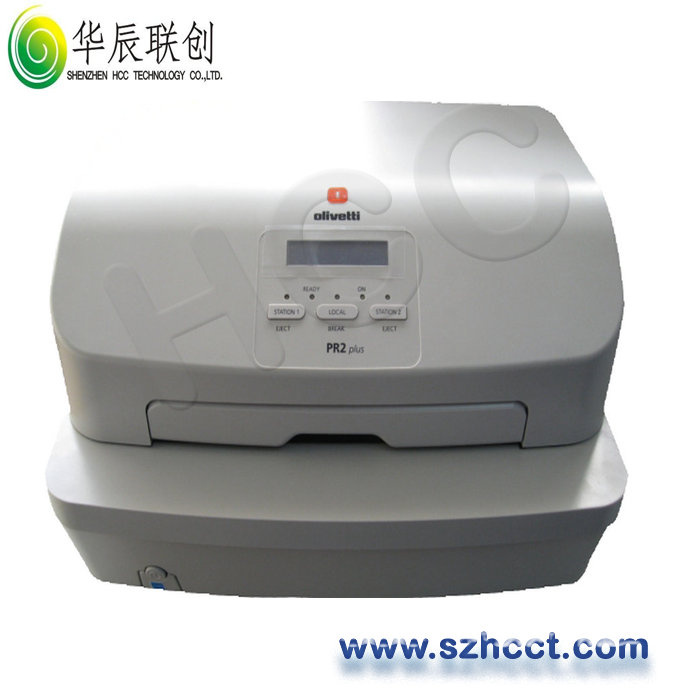

PR2 Plus Specialized Passbook Printer
General
Olivetti PR2 PLUS has been designed in different models from the entry— Level version to the dual— Side scanner model in order to satisfy multifunctional frontoffice applications. It is capable to print on all Bank forms from single— Sheet and multiple— Copy documents to passbooks. The Olivetti passbook printers PR2 PLUS offer complete solutions in bank teller environments.
Advantages:
Extremely easy to use
Up to 560 character/sec in VHSD
Magnetic— Stripe reading and writing, micro code line reading (CMC7/E13B)
Can be configured as a single— Side scanner or as a dual— Side scanner for simultaneous front/back Scanning on A4 formats up to 600dpi
Color casing available in black or grey
New ink ribbon of up to 10 million characters
Features
One of the smallest and quietest models in its product class
Superior printing speeds
Management of all bank forms
Magnetic— Stripe reading and writing
Single— Side scanner or dual— Side scanner configuration
Dual— Side color scanning
Ultra— Fast alignment
Specification
Technology 24— Pin DOT matrix
Resolution 240— 360 dpi
OCR A— B, ROMAN, Sans Serif, Italic, Courier
Pitch 10, 12, 15, 16.6, 17, 1 CPI
Printing speed at 10 CPI VHSD: 560 cps HSD: 510 cps Draft: 370 cps
NLQ: 185 cps
LQ: 125 cps
BIM: 2000 dps
Line length 238, 76 mm (94 columns at 10 CPI)
Line spacing 1/5", 1/6", n/216", n/240"
Copies Original6 copies
Interfaces Standard: RS232 serial, IEEE 1284 parallel and USB 2.0
Optional: Expansion slot
Emulations Olivetti Standard, IBM PP&X24
Optional: IBM 4722/9068
IBM PP &X24
WINCOR 4915
Epson LQ 2550
UNISYS EFP series
Noise level <54dBA
Document Handling (ISO 7779 with ECMA 132 text) Feed width: 245 mm
Completely flat paper feed
Automatic insertion with auto border
Automatic document— Thickness monitoring
Power consumption Min. 6, 5W (9W the scanner model)
Max. 85W(printing)
Ribbon cartridge 10 million characters
Voltage 230V/50Hz
115V/60Hz
Certifications&Regulatory CE, TUV NRTL, FCC class A verified
Options MICR reader(CMC7, E13B)
Scanner
Dimensions (W× D× H) 384× 296× 204 mm
15.12"× 11.65"× 8.03"
10.5KgWeight
Scanner
Resolution 600dpi RGB color 24 bit
Scanning speed Max10" inch/sec.
3.3" full color
|
Technology |
24-pin dot matrix |
|
Resolution |
240 x 360 dpi |
|
|
OCR A-B, ROMAN, Sans Serif, Italic, Courier |
|
Pitch |
10, 12, 15, 16.6, 17,1 cpi |
|
Printing speed at 10 cpi |
VHSD: 560 cps HSD: 510 cps Draft: 370 cps
NLQ: 185 cps
LQ: 125 cps
BIM: 2000 dps |
|
Line length |
238,76 mm (94 columns at 10 cpi) |
|
Line spacing |
1/5", 1/6", n/216", n/240" |
|
Copies |
Original + 6 copies |
|
Interfaces |
Standard: RS232 serial, IEEE 1284 parallel and USB 2.0
Optional: expansion slot |
|
Emulations |
Olivetti Standard, IBM PP & X24
Optional: IBM 4722/9068
IBM PP & X24
WINCOR 4915
EPSON LQ 2550
UNISYS EFP series |
|
Noise level |
< 54 dBA |
|
Document Handling |
(ISO 7779 with ECMA 132 text) Feed width: 245 mm
Completely flat paper feed
Automatic insertion with auto border
Automatic document-thickness monitoring |
|
Power consumption |
Min. 6,5 W (9 W the scanner model)
Max. 85 W (printing) |
|
Ribbon cartridge |
10 million characters |
|
Voltage |
230V / 50Hz
115V / 60Hz |
|
Certifications & Regulatory |
CE, TüV NRTL, FCC class A verified |
|
Options |
MICR reader (CMC7, E13B)
Scanner |
|
Dimensions (W x D x H) |
384 x 296 x 204 mm
15.12" x 11.65" x 8.03" |
|
Weight |
10.5 Kg |
|
Scanner |
|
|
Resolution |
600 dpi RGB color 24 bit |
|
Scanning speed |
Max 10" inch/sec.
3.3" full color |
