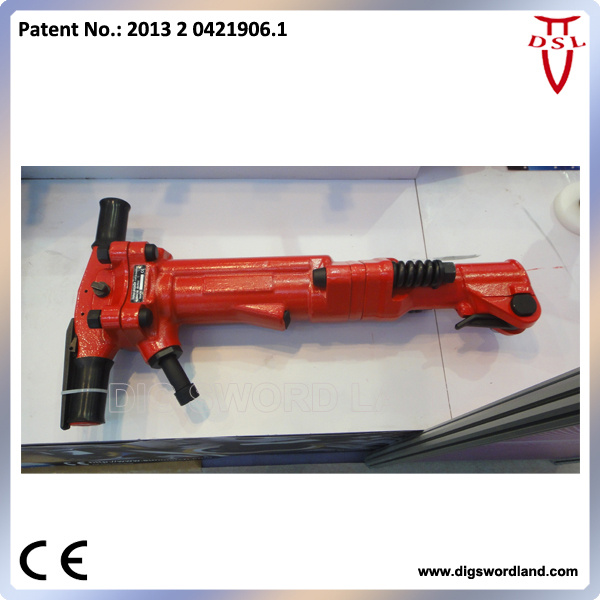

TPB-90 jack paving pneumatic breaker
TPB 90 is our most popular pneumatic hammer, strong powerful, rock drill, be used for rock mine, concrete, Quarry, stone and so on Very high power to weight ratio
Takes standard size steels Well balanced
TPB-90
Ease of maintenancecrusher developed by the Japanese TOKU Corporation,
Uses the compressed air as a driving force.
It can efficiently complete strengthen of concrete and the breaking of rocks and asphalt.
And it is more high-powered, more efficient and has much longer life.
Especially, for the crushing of Large, thick, hard objects.
It is the ideal tool to the foundation constructions, Such as the Mines, bridges, roads, municipal construction
Weight |
42kg (92.4LBS) |
Length |
723mm(28-7/16inch) |
Postion diameter |
66.67mm(2-3/5inch) |
Postion stroke |
152mm(6inch) |
Air pressure |
0.63Mpa |
Air consumption |
2.2L/min(77cfm) |
Air pipe inner dia |
19mm(3/4inch) |
blow per min(b.p.m) |
1400 |
|
32mm(1-1/4X6inch) |
Shank Size |
28mm(1-1/8X6inch) |
Fuzhou Dig Sword Land Machine Co., Ltd. is the Sino-foreign joint venture which mainly business DSL brand from Digswordland Technology Limited. The enterprise is an industrial supplier which specialized in design, manufacture and sales in worldwide and has owned ten product patent right for RB777, B77C, RB777C, and TCA-7 and so on. My company provided air compressed, construction and mining equipment, also related after-sale services. Now our business has throughout 158 countries and area with good reputation.
My Company has advanced equipment, technology, excellent quality, good Service. We found a full set of CE Quality Certificate and carry out the ISO9001 International Quality System to assure the reliability and stability of our production.
Our Enterprise emphasizes "Technology Improve Quality, Well Quality Occupy Market". By this point, we have got good reputation from both domestic and foreign customers. We peruse actively the new norms, high efficiency, simple operate products to achieve the break through of the best quality for our customers, and then develop and enlarge market. Now our customers have throughout Middle-East, Africa, South-America and other countries and areas.
With the best service, creditability and good quality, we continue to develop and would like to work together with existing and new customers to create excellent future.
