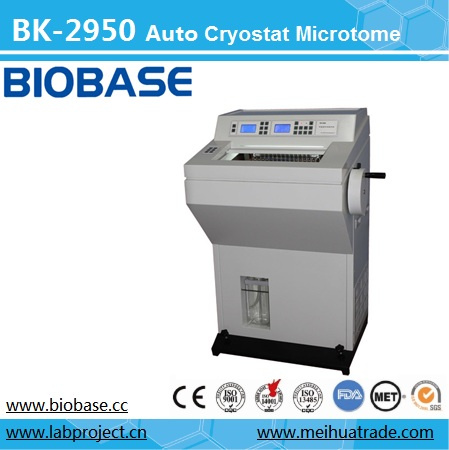

Product Specifications
Prod Model: |
BK-2950 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Operation Type: |
Automatic |
Processing Method: |
Screening |
Freeze Chamber Temperature Range: |
-10 Oc~-30 Oc |
Maximum Specimen Size: |
35mm×35mm |
Freeze Shelf Minimum Temperature: |
-45 Oc |
Type: |
Separation Type |
Product Description
Design Features
*It is designed under overall engineering and ergonomic concept. All the components are processed with computer numerical controlled machine
*Specimen retraction function, protects specimen from blade injury
*Trimming/Cutting button makes it easy to switch from trim and section mode
*Equip with counter to calculate total pieces and thickness.
*Dual compressors, which are made in Germany, freeze the cryostat chamber, freezing shelf, knife holder and specimen clamp separate with pro-environment refrigerant R404
*Temperature can drop to working condition in 60 minutes after switching on.
*Adopt to UVC sterilize for 35 minutes every time.
*Peltier may be on or off manually.
*Heated, removable sliding window.
*Two defrost methods: definite time and manual
*The high-precision microtome is enclosed outside the cryostat chamber to protect it from thermal expansion and contraction and keep minimum service and maintenance.
*Self-explanatory symbols for all functions and displays, easy to learn and operate.
*LED screen can display data such as sample travel, thickness, function controlling, day, time, temperature, timed on/off and so on
*Stand by mode, after initializing, the temperature in cryostat chamber can be controlled between -4ºC an -9ºC by computer automatically; when stop initializing, the temperature
in freeze chamber will arrive to working temperature within 10 minutes
*Control panel with locking function to avoid wrong operation.
*Handwheel locking
*Sensor self-diagnosis function.
*Wide freezing shelf may put 10 specimen cassettes
Technical Specifications
Model | BBK-2950 |
Freeze chamber temperature range | -10ºC~-30ºC |
Cooling to -30ºC time | 60 min |
Freeze shelf minimum temperature | -45ºC |
Lowest temperature of Peltier unit on freeze shelf | -55ºC |
Peltier working time | 15 minutes |
Maximum specimen size | 35mm×35mm |
Specimen vertical stroke | 60mm |
Specimen horizontal stroke | 20mm |
Coarse feeding speed | 0.7mm/s; 0.35mm/s |
Section thickness range | 1μm~80μm adjustable 1μm~20μm, in 1μm increment 20μm~40μm, in 2μm increments 40μm~80μm, in 5μm increments |
Trimming thickness range | 10μm~400μm adjustable; 10μm~50μm, in 5μm increments; 50μm~100μm,in 10μm increments; 100μm~400μm, in 50μm increments; |
Retraction range | 0μm~80μm adjustable; in 5μm increment |
Voltage and frequency | AC220V±10% 50Hz(Standard) Special requirement may customize by order. |
Power | 850W |
Net weight | 130kg |
125kg | 660×640×1130mm |
Package size | 790*790*1370mm |
Gross weight | 170kg |
