Product Specifications
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Production Name: |
PC/PP/PE Hollow Sheet Profile Extrusion/Making Mac |
| Product Type: |
PC/PP/PE |
| Processing Type: |
Extruding Machine |
| Line Speed: |
1-8m/Min |
| Application: |
Packaging,Package |
| Warranty: |
One Year |
| Type: |
Pipe Extruder |
| Screw: |
Twin-Screw |
| Automation: |
Automatic |
| Computerized: |
Computerized |
| Plastic Processed: |
PE |
Product Description

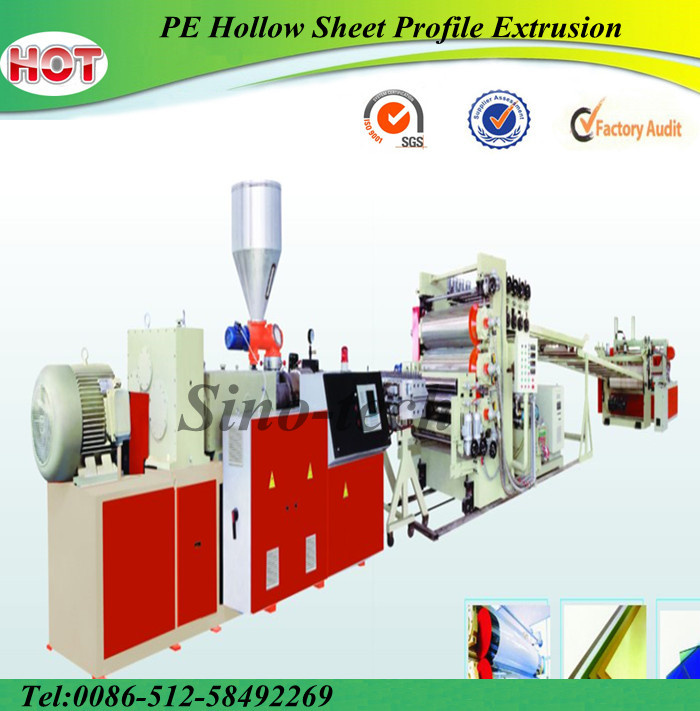

PC/PP/PE hollow sheet extrusion machine/making machine:
PP hollow sheet production line is applicable to produce PP PE plastic hollow sheet/board/plate/panel. Width of PP hollow sheet/board/plate/panel produced by PP PE hollow sheet machine is 1100-2100 mm and thickness is 2-20 mm.
PP PE hollow sheet machine includes many parts, the key points are as follows.
Extruder of PP PE hollow sheet extrusion machine: The specially designed screw and the advanced controlling system ensure excellent plasticization, high output and stable extruding.
Screen changer: Quick screen changer of hydraulic system ensures the short course of screen changing. Double-position combined with special sealing structure guarantee stable operation of screen changer
Mould of PP PE hollow sheet extrusion line: Mould adopts high-quality alloy steel and throttling device and also differential action of up-down piece guarantee even thickness of the plate.
Vacuum calibrating table of PP PE hollow sheet making machine: Heating exchanging and cooling system of quick speed in calibrating system alternate effectively and ordinally with vacuum system, carries vacuum regulating system and vacuum display system
Tractor of PP hollow sheet extrusion line: There are two tractors.
Stress remover of PP PE hollow sheet machinery: The advanced large area conductive heating mode can effectively remove the stress of plate and furtherimprove planeness.
PP PE hollow sheet machine has the following main technical specifications. It is for your reference.
Zhangjiagang Sino-tech Machinery Co., Ltd. is a group company located in the beautiful seaport city of Zhangjiagang, which is near to Shanghai. We devote ourselves to the development, research and production of plastic machine, beverage equipments filling and packing industry and automatic blow molding machine with over 20 years'experience.
Now our equipments have been exported to USA, Canada, Mexico, Colombia, Brazil, Argentina, UK, France, Germany, Belgium, Russia, Saudi Arabia, UAE, Yemen, Iran, Oman, Syria, Jordan, Israel, Egypt, Japan, Philippines, Myanmar, and India etc...
For plastic machine: , Our main products include as follow
Big-mouth PVC pipe excluding production line
PE big-mouth for gas, water supply excluding production line
Plastic sheet or panel production lin
Plastic profile production line
Plastic granulating production line
Plastic recycling machine
PP-R pipe production line
Plastics extruder
High speed mixer, various plastic auxiliary machines
For beverage machine, our Main products include as follow
The capacity of 2000-- 40000 BPH for mineral water and purified water producing line.
The capacity of 2000-- 40000 BPH for hot filling, MID-temp filling, aseptic cold filling lines.
The capacity of 2000 -- 36000 BPH for carbonated beverage producing line.
The capacity of 300 -- 1200BBH 3 gallon, 5 gallon barrel filling line
The capacity of 1000 -- 12000BBH glass bottle beer filling line
The capacity of 2000 -- 25000BH ice pop, ice lolly filling production line
Various kinds of linear and rotary engine oil and edible oil filling line
All kinds of water treatment equipment.
PET perform injection and blowing-stretching machine.
Extrusion blow molding machine
Turn-key projects
Flat and tube UHT device, and CIP system.
SINO-TECH purpose is "keep developing to meet worldwide clients' demands. "
Welcome to visit our company. Thank you!
