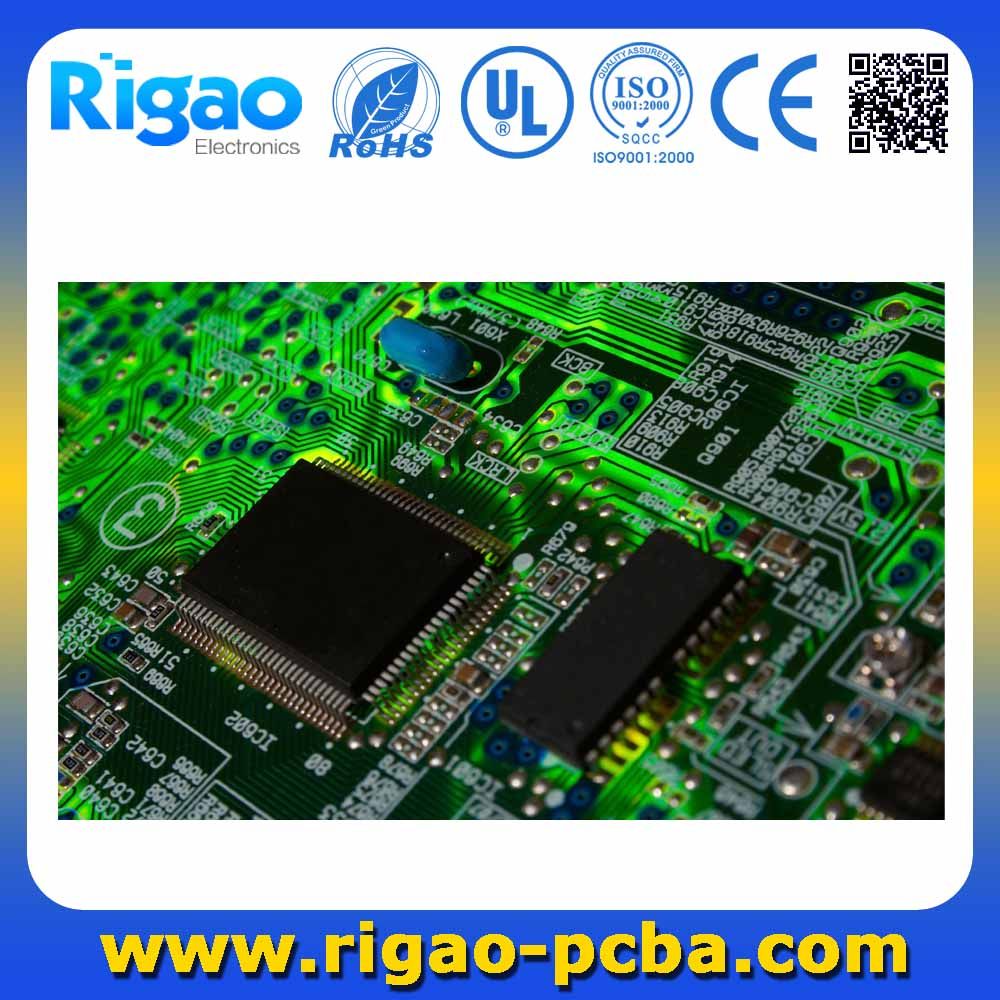

PCB Board Electronic Circuit Test Board

Name: PCB Board Electronic Circuit Test Board
Brand: China-Manufacturer-Directory.com
SKU: 752361325
Availability: InStock
Rating: 4.6 (122 reviews)

Supplier:	Shenzhen Rigao Electronics Co., Ltd.
Price:	US $ 0.2/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	Rigao PCBA1632
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Prototyping:	Yes
Color:	Green
Layers:	Multilayer
Base Material:	FR-4
Mode Of Production:	SMT
Metal Coating:	Copper
Customized:	Customized
Condition:	New

Product Description

PCB board electronic circuit test board

PCBA Manufacturing Capability
		Content	General	Advanced
	1	TH components:	Wave-soldering	NA
	2	Min. Chip Placement:	0402	0201
	3	QFN Lead Pitch:	0.4mm	0.3mm
	4	Min. IC Pitch:	0.4mm	0.3mm
	5	Maximum BGA Size:	50mm X 50mm	74mm X 74mm
	5	BGA Ball Pitch:	0.4mm	0.3mm
	6	Max. PCB Size:	350mm X 400mm	410mm X 600mm
	6	Foot Pin:	SO, SOP, SOJ, TSOP, TSSOP, QFP, BGA and U-BGA

FAQ:
Q1: What kind of file need be provided to get price?

Wells :PCB order: Please provide gerber file and manufacturing specification. Any detail is also welcomed if no gerber file.

PCBA order: Please provide gerber file, manufacturing specification and BOM List.

Q2: What is the payment?

Wells: For new customer, it is 100% prepayment, for old customer, we accpet some prepayment and some before shipping.(There will be a way to start cooperation.)

Q3: What is the quality guarantee?

Wells: In one year, If no manmade damage, we will replace new components and repair board for free.(Electronic test and functional test will be done before shipping)

Contact me without hesitation :)

Shenzhen Rigao Electronics Co., Ltd. is a newly company which founded in 2008. At beginning we were only focus on manufacturing Printed Circuit Boards. But now we has become a rapidly growing worldwide provider of solutions in three principal areas Printed Circuit Boards, PCB Assembly and Components Procurement. We are dedicated to building solid partnerships and providing flexible solutions to enable our customer's success.

As an experienced PCB and PCBA manufacturer, we provide prototypes, small volume, medium volume, and high volume projects. We are able to guarantee a complete service with comprehensive technical backup, offering acost advantage and scheduled delivery.

Our main services include offering

Rigid PCB (up to 64 Layers)

Flexible PCB/FPC (1~6 Layers)

Rigid-Flex (3~18 Layers)

Aluminum-based PCB (1~6 Layers)

High Density Interconnection/HDI PCB

High frequency material PCB

DIP, COB, SMT assembly Services

Components Sourcing

We have since successfully completed over 5, 500 projects and have nearly 300 satisfied repeat customers. Our customers are from over 30 countries in various industries, including computer, home appliances, consumer products, telecom, scientific research institutes, etc.

Our manufacturing and quality control processes are ISO 9001: 2000 certified and conform to IPC-A600(PCB) and IPC-A610 (PCB Assembly) standards. All our PCB/PCBA are UL certified and RoHS compliant.

Our Principle is simple, "Act by heart, Make the best. "

Our strength is distinct, "Years of experiences in PCB and PCBA field"

Our Goal is achievable, "To be the most reliable supplier of PCB and PCBA. "

Our orientation is clear, "Focus on prototypes and low to medium volume business "

Your trust and support would be a solid back-up for our business. We sincerely hope to provide you with high-quality products and satisfactory services.

We are look forward to working with you!
