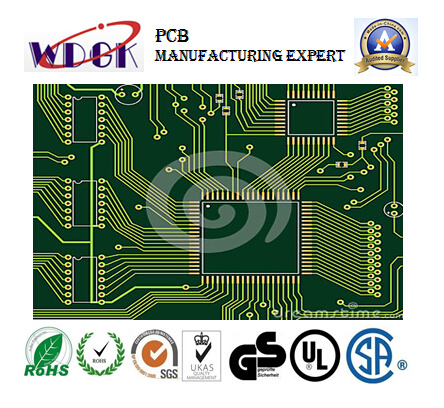

PCB Board for Mobile Internet Device MID PCB / Circuit Board B

Name: PCB Board for Mobile Internet Device MID PCB / Circuit Board B
Brand: china-manufacturer-directory.com
SKU: 767610575
Availability: InStock
Rating: 4.8 (106 reviews)

Supplier:	Shenzhen WDGK Industry Co., Ltd.
Price:	US $ 9.5-10/Piece
Min Order:	10/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	WD-2003TT
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
12:	Inchis
Type:	Flexible Circuit Board
Dielectric:	FR-4
Material:	Fiberglass Epoxy
Flame Retardant Properties:	V0

Product Description

Specifications	Details : Design as your equire
Material Type	FR-4, CEM-1, CEM-3, Aluminium Clad,Arlon,Teflon,Taconic, Rogers, Polyimide*, Kapton,Dupont
Material Thickness ( in inches)	0.062", 0.080", 0.093", 0.125", 0.220", 0.047", 0.031", 0.020", 0.005"
Layer count	1 to 28 Layers
Max. Board Size	23.00" x 35.00"(580mm*900mm)
IPC Class	Class II, Class III , Class 1
Annular Ring	5 mil/side or Greater (Min. Design)
Finish Plating	Solder(HASL), Lead Free Solder(HASL), ENIG (ELectroless Nickel Immersion Gold), OSP, Immersion Silver,Immersion Tin, Immersion Nickel, Hard Gold, Other
Copper Weight	0.5OZ-7OZ
Trace/Space Width	3 Mils or Greater
Drill Clearance	0.1mm(laser drilling)
Plated Slots	0.036 or Greater
Smallest Hole (Finished)	0.1mm or Greater
Gold Fingers	1 to 4 Edge (30 to 50 Micron Gold)
SMD Pitch	0.080" - 0.020" - 0.010"
Soldermask Type	LPI Glossy, LPI-Matte, SR1000
Soldermask Color	Green, Red, Blue, Black, White, Yellow,
Legend Color	White, Yellow, Black, Red, Blue
CNC Route Point	Any
Minimum Route Width	0.031"
Scoring	Straight Lines, Jump Scoring, Panel Edge to Edge, CNC*
Body Gold	HARD, IMMERSION (up to 50 MICRON GOLD)
Data File Format	Gerber 274x with embedder aperture
Fab. Drawing Format	DXF, HPGL, DWG, PDF, Gerber
E.T Testing	Flying Probe, Single Sided, 1up Plate, Clampshell, Net List
Counter Sink / Counter Bore	Availiable up to 0.250 Diameter
Control Impedence	Yes
Blind Vias / Buried Vias	Yes
Peelable Mask	Yes
Carbon	Yes

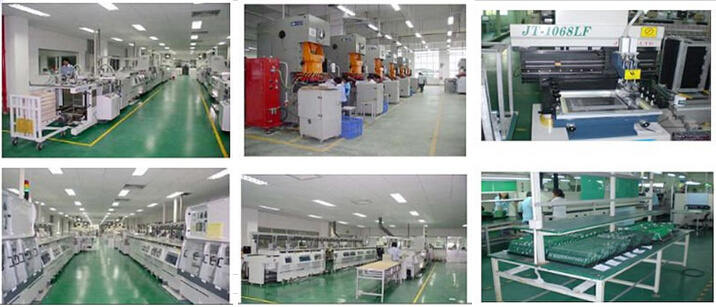

Our Porduction line :

Our Clients :

APPLE , SAMSUNG , SIEMENS, MOTOR ,FOXCONN ,XIAOMI

Leading Time for PCB board:
1) PCB production time: Sample: 3-5 days / mass production: Within 7 days.
2) Component purchase: 2 days if all components is available in our domestic market.
3) PCB Assembly: Samples: Whthin 2 days / mass production: Within 5 days.

WEIDA Group is one of famous company in China mainland. Founded in 1998 year. WEIDA group has been listed in NASDAQ, USA in 2012 year.

Now WEIDA have two different production companies: WDGK and HUANYU.

WDGK is a professional design and production of double-sided, multi-layer circuit boards of private enterprises. The company has advanced production equipment, high-quality

Engineering and technical personnel, as well as improving management and service system. Since its establishment, the introduction of Germany, Japan, Taiwan and other regions of the advanced equipment and production technology, dedicated to the development and production of telecommunications, networks, electric power, industrial, medical, instrumentation, military products, computer peripherals and other high-tech products meet IEC, IPC, DIN, MIN standard

HUANYU is a new professional production of dishwahser home appliance manufacturer and found in 2008 year. Now HUANYU have cooperated with Samsung, SIMENS, BEKO AND MIDEA AND GREE for years. Our sales net in Europe, North America, MID -east and Asia.
