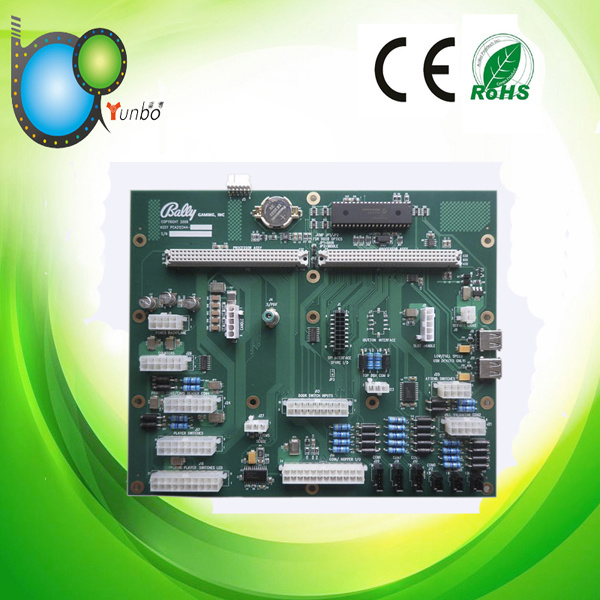

PCB Circuit Board From PCB Assembly

Name: PCB Circuit Board From PCB Assembly
Brand: china-manufacturer-directory.com
SKU: 720781245
Availability: InStock
Rating: 4.6 (79 reviews)

Supplier:	Changzhou Yunbo Electro-Optics Tech Co., Ltd.
Price:	Negotiable/Piece
Min Order:	100/Piece
Quantity::
Trade Terms:	FOB,EXW,CIF

Product Specifications

Prod Model:	YB-PCB-008
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Shape:	Square
Size:	Different
PCB Base:	Fr-4
Voltage:	DC24V
Color:	White
Base Material:	FR-4
Mode Of Production:	SMT
Metal Coating:	Copper

Product Description

PCB Circuit Board From PCB Assembly Manufacturer

1. OEM&ODM are availble, different shape for your choice

2. Programmable, it can change different colors and lighting ways

3. Green and Energy saving, best for your lighting project

Why choose us

1. Your inquiry related to our products or prices will be replied in 24hrs.

2. Well-trained and experienced staffs to answer all your enquires in fluent English

3. OEM&ODM, any your customized lightings we can help you to design and put into product.

4. Distributorship are offered for your unique design and some our current models

5. Protection of your sales area, ideas of design and all your private information

Trade Terms

1. Payment: T/T in advance (Western Union is welcomed)

2. Production lead time 100PCS: 5-7days, 500~1000PCS: 7-10days, above 1000PCS 15-20days.

3. Sample can be delivered in 3days

4. Shipping freight are quoted under your requests

5. Shipping port: Shanghai, Mainland China

6. Discounts are offered based on order quantities

7. MOQ: 100PCS

1	Layers	Single Sided,2 to 18 Layer
2	Board material type	FR4,CEM-1,CEM-3,ceramic substrate board, aluminum based board, high-Tg, Rogers and more
3	Compound material lamination	4 to 6 layers
4	Maximum dimension	610 x 1,100mm
5	Dimension tolerance	±0.13mm
6	Board thickness coverage	0.2 to 6.00mm
7	Board thickness tolerance	Board thickness≤1.0mm: +/-0.1mm 1 Board thickness>2.0mm: +/-8%
8	DK thickness	0.076 to 6.00mm
9	Minimum line width	0.10mm
10	Minimum line space	0.10mm
11	Outer layer copper thickness	8.75 to 175µm
12	Inner layer copper thickness	17.5 to 175µm
13	Drilling hole diameter (mechanical drill)	0.25 to 6.00mm
14	Finished hole diameter (mechanical drill)	0.20 to 6.00mm
15	Hole diameter tolerance (mechanical drill)	0.05mm
16	Hole position tolerance (mechanical drill)	0.075mm
17	Laser drill hole size	0.10mm
18	Board thickness and hole diameter ratio	10:01
19	Solder mask type	Green, Yellow, Black, Purple, Blue, White and Red
20	Minimum solder mask	Ø0.10mm
21	Minimum size of solder mask separation ring	0.05mm
22	Solder mask oil plug hole diameter	0.25 to 0.60mm
23	Impedance control tolerance	±10%
24	Surface finish	Hot air level, ENIG, immersion silver, gold plating, immersion tin and gold finger
25	Certificate	ROHS, ISO9001:2008, SGS, UL certificate
26	Acceptable file format	Gerber file,PROTEL series,PADS series,POWER PCB series,AutoCAD

Changzhou Yunbo Electro-optics Tech Co., Ltd has modern business operation and management system, lead by technology and quality, service and marketing centred. We are a scale company focused on energy industry, electricity industry and intelligent control products with R&D, production, sales and service four in one. With abundant strength and rich experience, we provide our clients with lighting cabinet control, intelligent programmable PLC power management, processing control PCB, LED used for advertising exhibition equipment, automatic parking system, automatic ticket system, medical lighting system and industrial controlling products. And We also provide OEM&ODM services.

In long-term production practice, we are strictly with ISO9001: 2008 management system and our products are approved by CE, RoHS. Also we have developed good business relationship with well-known international enterprises, like THE BRIGHT GROUP who provide gaming products for global gaming industry, and Korean LS original from LG and so on.

We truly believe that, with our continuous effort, we will gain mutual benefit, reach a win-win result and March forward hand in hand with all our partners.
