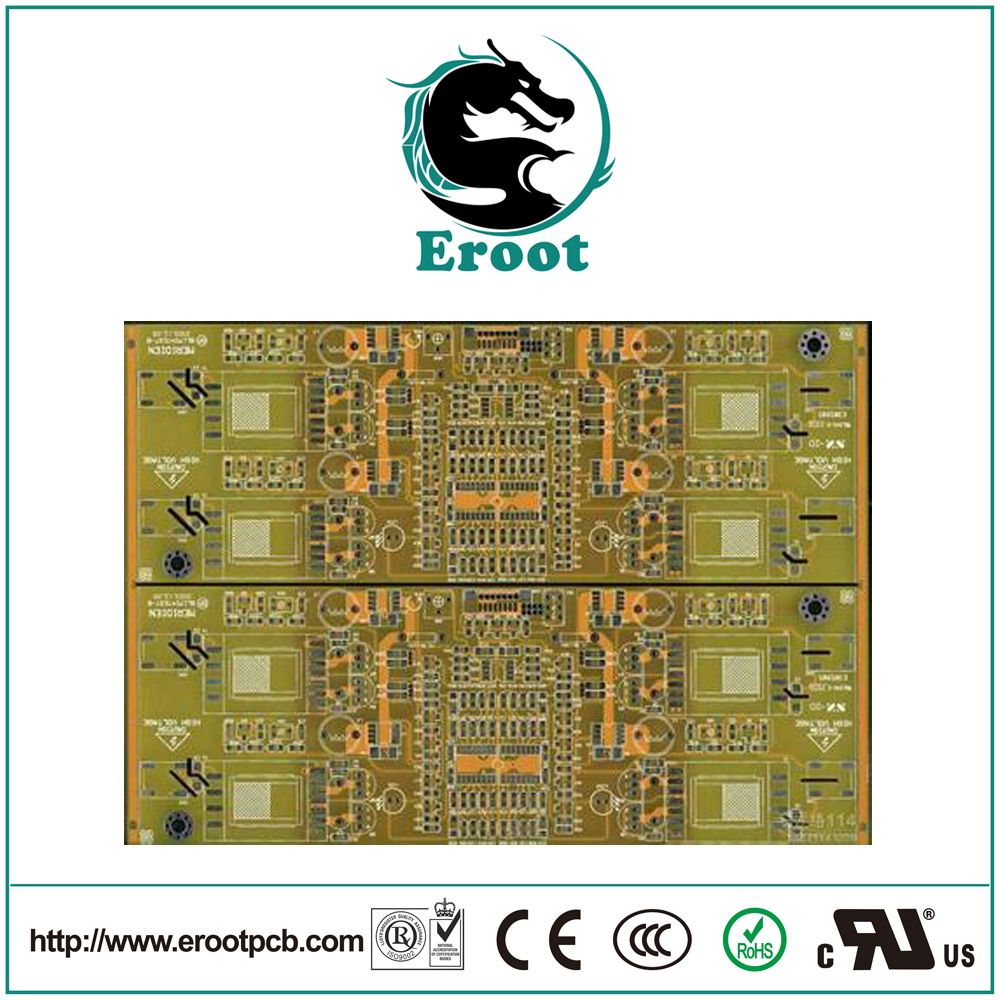

PCB Circuit Board

Name: PCB Circuit Board
Brand: China-Manufacturer-Directory.com
SKU: 741477445
Availability: InStock
Rating: 4.3 (131 reviews)

Supplier:	TODO EAST (CHINA) CO., Ltd.
Price:	US $ 5Pcs
Min Order:	1PC
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	HDI PCB ERT-001/002
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
HDI PCB Board:	Multilayer HDI PCB Board for Telecom
Type:	Combining Rigid Circuit Board
Dielectric:	FR-4
Material:	Fiberglass Epoxy Resin + Polyimide Resin
Flame Retardant Properties:	V0

Product Description

PCB Copper Thickness: 1/1 PCB Board Thickness: 0.3-5.0mm PCB Min. Hole Size: 0.2mm PCB Min. Line Width: 0.1mm PCB Min. Line Spacing: 0.1mm PCB Surface Finishing: HASL, HASL pb free, immersion gold, immersion silver, immersion tin, O. S. P (Entek), S/G plating, ENEPIG, G/F plating, carbon 1. Single-sided PCB, double side & multi-layer PCB with competitive price, good quality and excellent service. 2. CEM-1, CEM-3 FR-4, FR-4 High TG, Aluminum base material. 3. HAL, HAL lead free, Immersion Gold/ Silver/Tin, OSP surface treatment. 4. Printed Circuit Boards are 94V0 compliant, and adhere to IPC610 Class 2 international PCB standard. 5. Quantities range from prototype to medium batch production. 6.100% E-Test.

Item			Mass production	Small batch production
Number of Layers			UP TO 16L	UP TO 30L
Laminate			FR-4, Halogen free, High TG, Cem-3, PTFE, Aluminum BT, Rogers
Maximum board size			610*460mm	762*508
Board thickness			0.3-3.5mm	0.21-6.0mm
Minimum line width/space			0.1/0.1mm	0.076/0.076mm
Minimum line gap			+/-15%	+/-10%
Outer layer copper thickness			140um	245um
Inner layer copper thickness			70um	245um
Min.finished hole size(Mechanical)			0.2mm	0.15mm
Min.finished hole size (laser hole)			0.1mm	0.1mm
Aspect ratio			10:01	20:01
Solder Mask Color			Green\Blue\Black\White\Yellow\Red\Grey
Impedance control Tolerance			<=+/-10%
Surface Treatment	Flash Gold		0.025-0.075um	0.025-0.5um
	Immersion Gold		0.05-0.1um	0.1-0.2um
	Sn/Pb Hasl		1-70um
	Leadfree Hasl		1-70um
	Immersion Silver		0.08-0.3um
	OSP(Entek)		0.2-0.4um
	Gold Finger		0.375um	>=1.75um
	Hard Gold Plating		0.375um	>=1.75um
	Immsion Sn		0.8um
V-Cut		V-Cut degree	20,30,45,60
Outline Profile	Chamfer	The angle type of the chamfer	30,45,60
	Plug via hole	Max.size can be plugged	0.6mm	0.7mm
	Largest NPTH hole size		6.5mm	>6.5mm
	Largest PTH hole size		6.5mm	>6.5mm
	Min.annular ring can be kept		0.15mm	0.1mm
	Min.distance between the IC pads can keep Sm bridge		0.25mm	0.18mm
	Min.SM bridge for green soldermask		0.1mm	0.076mm
	Min.SM bridge for black soldermask		0.125mm	0.1mm
Tolerance of dimension size			<=+/-0.13mm	+/-0.1mm
Tolerance of board thickness			>=1.0mm +/-10%	+/-8%
			<1.0mm +/-0.1mm
Tolerance of finished NPTH hole size			+/-0.05mm	+/-0.05mm
Tolerance of finished PTH hole size			+/-0.076mm	+/-0.05mm
Delivery time			Mass:10~12d	Sample:5~7D
Capacity			60000sq/m
CAM capability			20 Items	100-180Items

Todo East (China) Co. Ltd,

Was established in the year of 2004.

We are one of leading companies in the field of making & selling PCB(printed circuit board), PCBA((printed circuit board assembled) & CCL(copper clad laminate) etc.

Located in the e-home of the global ---Shenzhen City, where making all levels of varieties & categories of electronics.

As always strictly carrying on ISO management system during the whole procession from IQC(Incoming Quality Control), IPQC(In-Process Quality Control), OQC(Outgoing Quality Control), FQC(Final Quality Control), so, we are here, proud to tell you that we can share & enjoy with you the good harvest,

Exp:

Good quality

Low cost

Fast delivery

Flexible payment terms of T/T or L/C

Pleasant communication

Very professional & skillful operation

Best after-sales service

With more than 10years of development, We are always keeping carrying on the philosophy of "mutual benefit mutal win ", we are very confident that we can step further stably with your accompany.

To cooperate with us.

To grow up yourself.

Your attention will be very highly appreciated.

Thanks
