Product Specifications
| Prod Model: |
RC-100027 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| PCB: |
220mm*150mm |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |

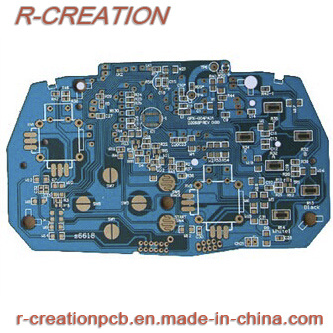

Product Description
Model No: RC-100027
Layers
2
Material Details
High Tg 130C
Reorder Status *
FIRST TIME
Board Size (width) *
63 mm
Board Size
(height) *
76 mm
Different Design
In Panel *
None
Route Process *
N/A
Thickness
(Finished Board)
1.651 mm (65mils)
Layer Stack
As own design - specified
In PCB file
Layer Stack
Details
TOP, GND, SIGNAL_PWR, BOTTOM
Surface Finish
HASL -Hot Air Solder Leveling
Outer Layer Copper
Weight (Finished)
1/2 OZ
Inner Layer
Copper Weight
1oz
Min. Tracing/Spacing
0.15 mm
Min. Annular
Ring
0.25 mm
Smallest Holes
0.30 mm
Holes Number
300 - 600
Buried/Blind Vias
No
Times of
Buried/Blind Via
--
Surface Mount
2 sides
Soldermask
Both Sides
Peelable Soldermask
None
Soldermask Color
Blue
Matt Color (only add to
Green or Black)
None
Silkscreen
Legend
2 sides
Silkscreen Legend Color
White
Gold Fingers
No
Gold Fingers Chamfer
None
Slots/cutouts in
Board
No Slot in Board
Testing
Yes
UL Marking *
Yes - as pcbcart default
R-Creation Technology Limited is specialized in Single, Double-sided, Multilayer, PCB and PCBA, PCB Assembly manufacturer. At the same time, We supply OEM Servies. Be established on January8, 2000, in HeFei, more than 10 years of successful experience on the Local and global marketing. Our PCB production capacity can reach 10000 square meters per month and PCB assembly capacity at 250, 0000 components per month.
The main customers are from medium-sized manufacturers in the line of consume electronics, digital products, radio telecommunication, industrial management and automation, medical treatment, etc. Our market share is steadily increasing year by year.
With consideration effort of Quality & Environmental &Human Health. We have got certificates of ISO9001: 2000, ISO14000 and RoHS.
On the tenet of being faithful, professional, enthusiastic, we hold hand in hand with customers, member staffs, and partners to develop together on the basis of mutual benefit.
