PCB LED Board

Name: PCB LED Board
Brand: China-Manufacturer-Directory.com
SKU: 750780935
Availability: InStock
Rating: 4.9 (93 reviews)

Supplier:	Huagao Shortcut Electric Circuit Limited
Price:	US $ 0.01-20/Piece
Min Order:	1/Piece
Quantity::
Trade Terms:	FOB,CFR,CIF

Product Specifications

Prod Model:	2443-1
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Thermal Conductivity:	1.0W/M.K, 1.5W/M.K, 2.0W/M.K, 3.0W/M.K
Aluminum PCB Thickness:	0.5mm, 0.8mm, 1.0mm, 1.5mm, 2.0mm, 3.0mm
Material:	Aluminum
Type:	Rigid Circuit Board
Flame Retardant Properties:	V0
Application:	LED Light

Product Description

1.Max Length:1.8M for FR4, 1.5M for Aluminum
2. Finish Board Thickness: 0.2mm-5.0 mm (8mil-197mil)
3. Surface Finish: HASL, ENIG, immersion silver, OSP
4. Flame retardant: 94V-0
5. Shaping; V-cut, tooling punching, CNC routing.

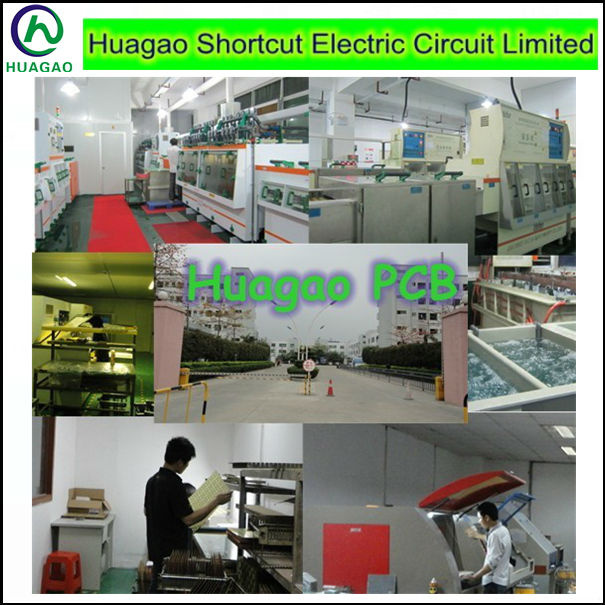

Huagao Shortcut Electric Circuit Limited is a professional PCB manufacturer of Single-layer PCB, Double-layer PCB, Multilayer PCB (1-25layers) and Aluminum PCB for more than 10 years. With accurate market positioning, customer-centric service concept and excellent corporate culture, we gradually developed into a company with 3 factories in Shenzhen Songgang(2 factories) and Dongguang Xiegang, and employs more than 1,000 people.

Sample Delivery Time(<2m²)

Layer No.	Quick Turn	Standard
Single Layer, Double Layer	12 hrs,24 hrs	3-4 Days
4 layers	48 hrs	4-6 Days
6 layers	72 hrs	5-7 Days
8 layers	4 Days	6-8 Days
10 layers	5 Days	7-9 Days
12 layers	6 Days	8-11 Days
14 layers	7 Days	10-12 Days
>= 16 layers	Depend on Actual Layer No.

Middle & Mass Batch Delivery Time(>2m²)

Layer No.	Standard
Single Layer, Double Layer	5-7 Days
4 layers	6-8 Days
6 layers	7-9 Days
8 layers	10-13 Days
10 layers	12-15 Days
12 layers	14-17 Days
14 layers	15-18 Days
>= 16 layers	Depend on Actual Layer No.

Contact us:

Huagao Shortcut Electric Circuit Limited provides total Printed Circuit Boards solution from prototype to mass production for more than 10 years.

Our advanced PCB technology goes with many added value services such as:

Engineering and technical support from our expert team, Lay-up construction, control impedance calculations and NPI (New Product Introduction).

We have QA and logistics support inside our manufacturers in Asia and all the goods are being checked before it is shipped to our clients.
