Shenzhen Okey Circuit Co., Ltd. >> PCB Multilayer Printed Circuit Board with Black Solder Mask

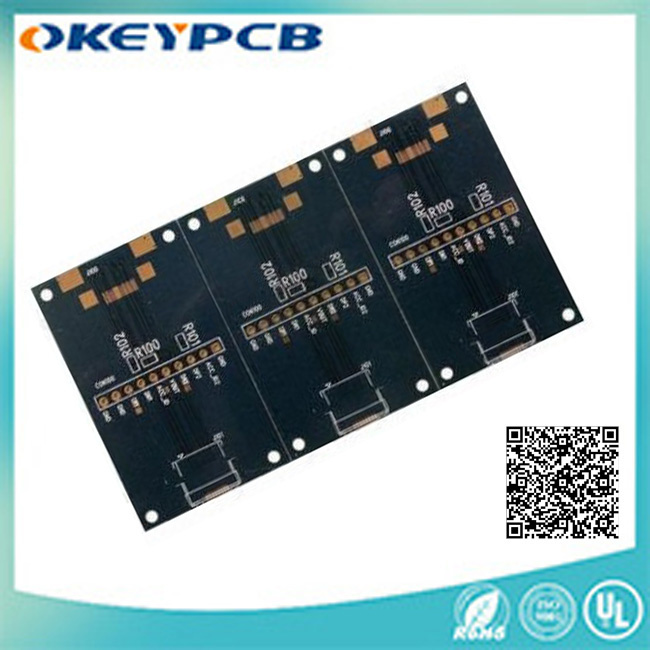

PCB Multilayer Printed Circuit Board with Black Solder Mask

Name: PCB Multilayer Printed Circuit Board with Black Solder Mask
Brand: china-manufacturer-directory.com
SKU: 729547995
Availability: InStock
Rating: 4.8 (124 reviews)

Supplier:	Shenzhen Okey Circuit Co., Ltd.
Price:	US $ 153/Square Meter
Min Order:	5/Square Meter
Quantity::
Trade Terms:	FOB,CIF,FCA

Product Specifications

Prod Model:	OKey-am-0029
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Sales Service:	24 Hours Online Service
Order Acceptable:	Sample Order and Small Order
Engineer Service:	Copy PCB Gerber File
Product Characteristics:	Red Mask for Double Sides
Certificates:	UL, RoHS, SGS, ISO9001
Type:	Rigid Circuit Board
Dielectric:	FR-4
Material:	Fiberglass Epoxy
Flame Retardant Properties:	V0

Product Description

High Quality PCB for Factory

Multilayer Six Sided printed circuit board
1. We have 10 years experience in Printed Circuit Board field to serve your needs
2. Competitive price with high quality service-24 hours online service
3. Prompt delivery reable factory
4. Our Printed Circuit Board get ISO and UL Certificates and meet ROHS standard

NO	ITEM	Technical capabilities
1	Layers	1-20 layers
2	Max. Board size	2000×610mm
3	Min. board Thickness	2-layer 0.25mm
		4-layer 0.6mm
		6-layer 0.8mm
		8-layer 1.5mm
		10-layer 1.6~2.0mm
4	Min. line Width/Space	0.1mm(4mil)
5	Max. Copper thickness	10OZ
6	Min. S/M Pitch	0.15mm(4mil)
7	Min. hole size	0.2mm(8mil)
8	Hole dia. Tolerance (PTH)	±0.05mm(2mil)
9	Hole dia. Tolerance (NPTH)	+0/-0.05mm(2mil)
10	Hole position deviation	±0.05mm(2mil)
11	Outline tolerance	±0.10mm(4mil)
12	Twist & Bent	0.75%
13	Insulation Resistance	>10 12 Ω Normal
14	Electric strength	>1.3kv/mm
15	S/M abrasion	>6H
16	Thermal stress	288°C 10Sec
17	Test Voltage	50-300V
18	Min. blind/buried via	0.15mm (6mil)
19	Surface Finished	HAL, ENIG, ImAg, Imsn OSP, Plating AG, Plating gold
20	Materials	FR4,H-TG,Teflon,Rogers,Ceramics,Aluminium, Copper base

Shenzhen Okey Circuit Co., Ltd.Is a manufacturer specializing in the research & development, manufacture and marketing of PCB boards.We have had about 600 workers and 30 R&D technicians since our company was established in Shenzhen City of Guangdong Province in 2006.Covering an area of 10, 000 square meters, our workshops are equipped with about 60 binding machines.
"Quality first, customer highest and service thoughtful" is the management principle that we always adhere to.Our working target is "to do our best to satisfy customers".Our products have the best quality and reasonable prices.Our products sell well in South Asia, the Middle East, Europe, America, Australia, etc.
