Product Specifications
Prod Model: |
8028 |
Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
0.05mm: |
500mm |
Type: |
Adhesive Tape |
Efficacy (',For Tape): |
High-temperature Adhesive Tape |
Backing Paper (',For Adhesive): |
Art Paper |
Adhesive (',For Label): |
Adhesive Label |
Technics: |
Flexographic Printing |
Surface Materials (',For Adhesive): |
Kraft Paper |
Color: |
White |
Membrane-type (',For Adhesive): |
Polyimide |
Surface Material: |
Paper |
Label Material: |
Polyimide and Acrylic |
Product Description

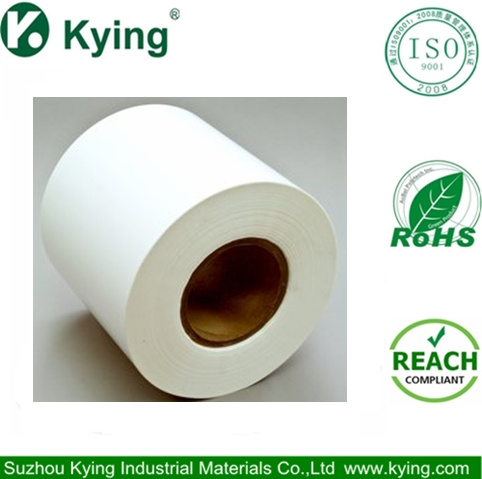

PCB label Polyimide Label
Properties and Applications
KY-HL503 is high-temp polyimide film with permanent pressure-sensitive acrylic adhesive and high opacity, gloss or matte white topcoat for thermal transfer printing, which is specially designed for characters or bar code labels in PCB printed circuit board or related electronic parts during SMT and DIP waving soldering process. It is the ideal material to remain excellent performance under extreme application environments...
PCB label Polyimide Label Product Structure:
Printed White Topcoat
Polyimide Film
Pressure-sensitive Acrylic Adhesive
Glassine Paper Release Liner
Note:
1. Above values are the accumulative typical ones by recognized testing method, but, in order to ensure you to select our products properly, please refer to above specification and test the samples based on your using purpose or feel free to contact our engineers for further and better understanding.
2. The color is only confirmed by samples.
3. Die-cutting according to drawings and slitting according to customers' requirement are available.
Items |
|
Test methods |
Average results |
Thickness |
Total |
ASTM1000 |
72±5um |
Topcoat |
22±3um |
PI film |
25±3um |
Adhesive |
25±3um |
Adhesion |
Stainless Steel |
20 min dwell(ASTM-3330) |
≥32N/100mm |
24 hr dwell (ASTM-3330) |
≥40N/100mm |
PCB sheet |
20 min dwell(ASTM-3330) |
≥22N/100mm |
24 hr dwell (ASTM-3330) |
≥38N/100mm |
Adhesion force |
Polyken Probe Tack |
1 sec. dwell contact (ASTM D2979)
10mm/sec peel off |
≥1000g
|
Shelf Life |
one year at 23±2(ºC)and humidity 64%±5%. |
II. KY-HL503 after printing
(by Zebra 90xi Printers with RICOH B 110CR or R 6000 ribbons exposed to specified test environment): |
Heat resistance |
Temp |
265ºC,10min |
No visible effect |
315ºC,8sec |
No visible effect |
Chemical
resistance |
Solvent resistance |
25% IPA, 75% Anhydrous Alcohol, 3min |
No visible effect |
Terpene Defluxer, 3min |
No visible effect |
Isopropyl 99%,82ºC, 10min |
No visible effect |
*Note: Samples are tested according to MIL-STD-202G/883E standard |
