Product Specifications
| Prod Model: |
T73 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Oceania,Eastern Asia,Western Europe |
Product Description

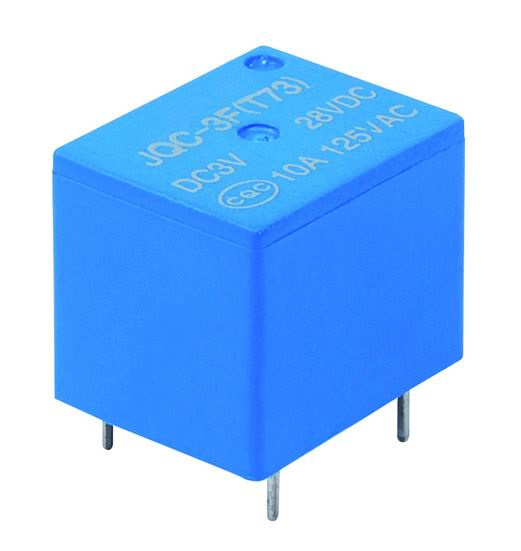

PCB Relay T73(JQC-3F)
Size: 19.2× 15.5× 15.4
Tirminal layout: 1Z, 1H
Contact capacity: 10A 125VAC/10A 28VDC
Contact resistance: ≤ 50mΩ
Inulation resistance: ≥ 100MΩ
Dielectric strength: BOC 1000VAC/BCC 1500VAC
Model: T73(JQC-3F)
Coil nominal voltage: DC 3, 6V, 9V, 12V, 24V, 48V DC
Coil nominal power: DC≤ 0.36W DC≤
Electrical life: 105OPS
Mechanical life: 106OPS
Operating temperature -25~55 -
Weight: 10g ≤
Mounting methods: PCB
Phoenix Relay Co., Ltd is a professional relay, timers, push button, LED pilot lamp, Industrial plug and socket, manufacturer integrating design, development, production and sale since 2005, It has over 800 staff and covers an area of 30000 square meters with two factories. (Headquarter inShanghai and branch in Zhejiang). Its annual output is around 100 million paces which is one of the leading manufacturers in the field of low voltage electric products in China.
