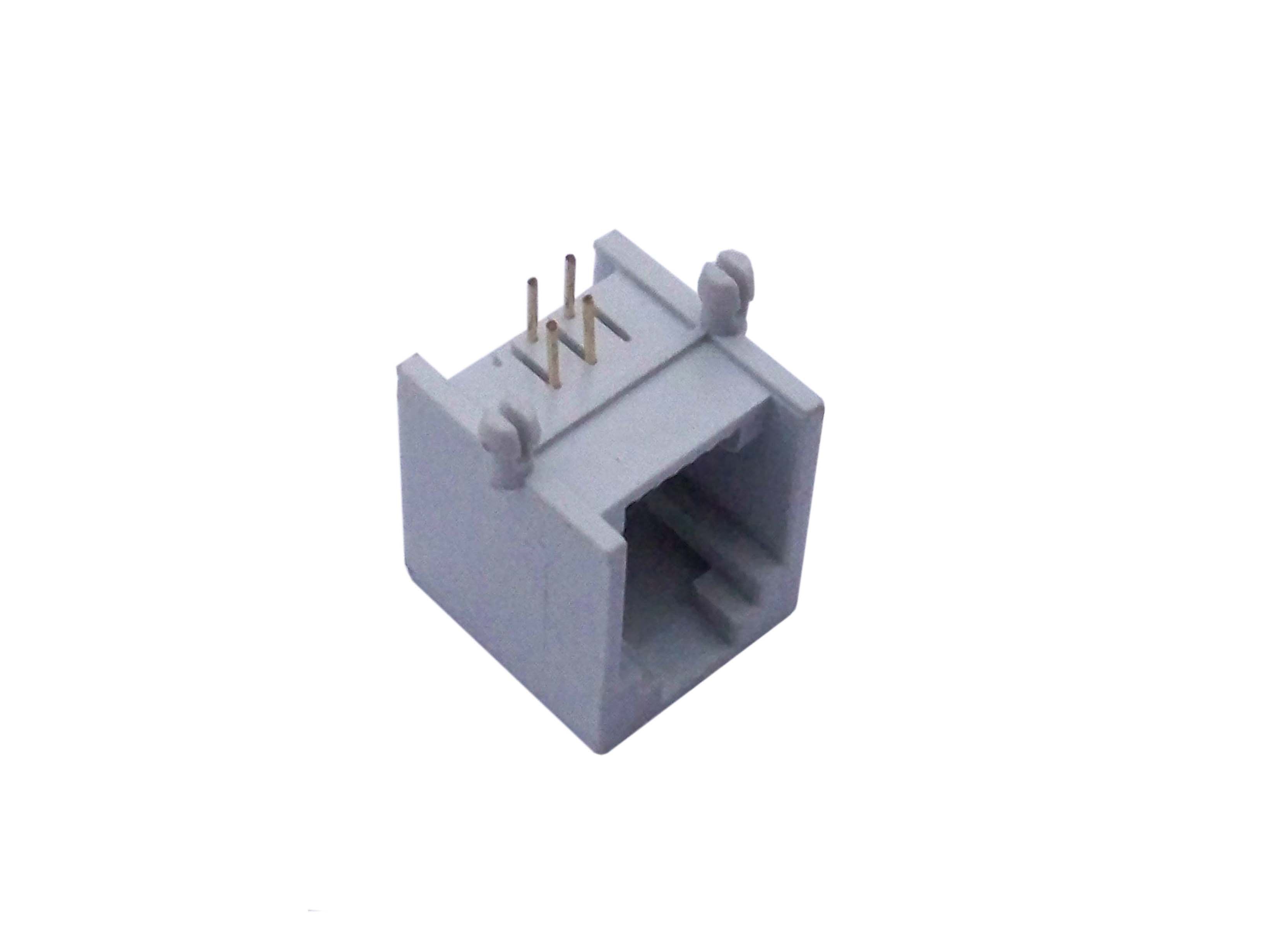

PCB RJ45 Connector (E-55-1A-2)

Name: PCB RJ45 Connector (E-55-1A-2)
Brand: china-manufacturer-directory.com
SKU: 679988375
Availability: InStock
Rating: 5 (132 reviews)

Supplier:	Evercom Communication S&T Co., Ltd.
Price:	Negotiable
Min Order:	10/Piece
Quantity::
Trade Terms:	by Sea, by Air or by Courior

Product Specifications

Prod Model:	E-55-1A-2
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	PCB

Product Description

PCB jack;
1 port, 8pin, 8 contacts
RJ45 jack, 5523, 5521

Eletrical	Mechanical	Material	Working Circumstance(Tem)
Current Rating:	Insertion Force:	House:	-40`C-70`C
1.5amps	2 contacts:350g;	ABS Resin
Voltage Rating:	4 contacts:500g;	(UL 94V-0)
125VAC	6 contacts:750g;	Glass filled
Insulation Resistance	8 contacts:900g;	PBT(UL-94V-0)
500Moms Mini	10 contacts:1050g;	Spring Wire
Withstand Voltage:	Retention Strength:	0.45mm dia Phosphor
AC 1000V	7.70kg	Bronze Gold Plating Over
Rms 50Hz or 60Hz 1 Min	between jack and plug	Nickel;
Contact Resistance:	Durability:750 Mating	0.35mm Thiickness Phosphor
20mOms Max	Cycles Mini	Bronze Alloy
		Selective Gold plating Over
		Nickel
		Shielding:
		0.25mm Thickness Copper
		Alloy with nickel Plated
		Gold plating: 3u inch,
		6u inch;
		15u inch;
		30u inch;
		50u inch;

Response to the Western Development, Migrated from Dongguan and established in the year of 2010, as a high-tech enterprise, Evercom Communication S&T Co., Ltd is engaged in Researching, Developing and Designing RJ45, connectors, communication connectors, computer connectors, which are wildly used in telecommunication, computer peripheral.

Evercom spreads with team of professional elites, and driving advanced precise mould equipments, full automatic machines. Energy saving and environmental protection has become new and important policy of the team!

Because of customers, Evercom grows up step by step; And Evercom is doing the best to meet the request of Customers!
