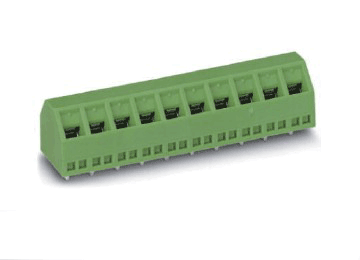

PCB Terminal Block, Solder Terminal Blocks, Terminal Connector, Electrical Screw Connectors

Name: PCB Terminal Block, Solder Terminal Blocks, Terminal Connector, Electrical Screw Connectors
Brand: china-manufacturer-directory.com
SKU: 716078935
Availability: InStock
Rating: 4.5 (33 reviews)

Supplier:	Shanghai Elinker Electric Co., Ltd.
Price:	US $ 0.072/Piece
Min Order:	50/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	LG127D-5.0/5.08
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Pitch:	5,0/5,8mm
Wire Entry:	Front
Poles:	2-24p
Stripping Length:	6mm
Application:	PCB
Environmental Protection:	General
Connection Mode:	Threaded Connection
Shape:	Rectangle
Contact Termination Form:	Welding Connection
Brand:	Elinker

Product Description

PCB Terminal Block, Terminal Blocks, Fixed Terminal Blocks, Solder Terminal Blocks, Terminal Connector, Screw Terminals, Electrical Screw Connectors
Part number: LG127D-5.0/5.08
Center Spacing: 5.0/5.08mm
Number of Poles: 2-24 Poles
Approvals: UL, CE Certified, RoHS Comply

SPECIFICATIONS:

IEC	320 V / 13.5 A / 0.14 - 1.5 mm2
UL	300 V / 10 A
Wire Size	26-16 AWG
Cross-Section Area	1.5 mm²
Stripping Length	6 mm
Wire Entry	45° Angled
Housing Material	Polyamide, 94VO
Cage Clamp	Brass, Nickel Plated
Contact Material	Brass Tin Plated
Termination	Screw
Screw Size	M3 Zinc Plated Steel
Torque Rating	0.60 Nm
Recommended PCB Hole Diameters	055" (1.40)
Operating Temperature	105° C (221° F) max., -40° C(-40° F) min

Shanghai Elinker Electic Co., Ltd. is a specialized manufacturer of custom and standard Terminal Blocks, Founded in 2000, Elinker offers nearly 15 years of proven performance in producing superior quality products.

Quality is the founding principal of Elinker' Manufacturing philosophy. Elinker is certified ISO 9001: 2008, Most of the Terminal Blocks in Elinker are UL, CE and RoHS approved. All our products are 100% quality guaranteed.

Elinker incorporates the most advanced design and manufacturing technologies. All Elinker' S products have been designed and prototyped for sales using the most advanced testing techniques and methods.

In nearly 15 years, Elinker has invested the most modern manufacturing technology and equipments, and as a result, we have consistently provided large OEMs with the most cost effective alternatives globally.

Customer Satisfaction, Design Engineering, Quality, and On-Time Delivery are four key areas we are focusing on to insure high quality terminal blocks and total customer satisfaction. Our partner companies rely upon us to create superior quality, budget conscious solutions for complex challenges. At Elinker, we view solutions as the key to our continued growth and success...
