Product Specifications
| Prod Model: |
ZBT-N570 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Protocol: |
Csma/CD |
| Topology: |
Star |
| Model Number: |
Zbt-N570 |
| Interface: |
PCI |
| Transmission Rate: |
10/100/1000Mbps |
| Application: |
Server |
| Type: |
Wired |
Product Description

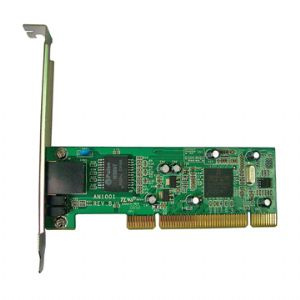

ZBT-N570 It is a 10/100/1000Mbps, 32-bit 33/66MHz PCI-bus Gigabit Ethernet adapter. With single UTP/STP and the Auto-Negotiation (Nway) function support, the Card can auto-negotiate 10Mbps, 100Mbps or 1000Mbps speed, and half or full duplex mode with its link partner (a hub, for example). Supports ACPI, compliant with PCI2.2. Full range of drivers are provided for major Operating Systems
Supports 32-bit 33/66MHz PCI Bus.
Complies with the PCI Revision 2.1/2.2.
Complies with the IEEE802.3 10Base-T, IEEE802.3u 100Base-TX and IEEE802.3ab 1000Base-T standard.
Supports 10/100/1000Mbps Nway Auto-Negotiation.
Supports 10/100Mbps full and half duplex, 1000Mbps full duplex.
Supports Full Duplex Flow Control (IEEE 802.3x).
Supports IEEE802.1P, IEEE802.1Q VLAN tag.
Supports Jumbo Frame. Supports Auto-MDI/MDIX.
Provides Bootrom slot, supporting remote boot.
Supports ACPI, PCI power management.
Contain two large independent receive and transmit FIFOs.
One STP/UTP connector.
Provides LEDs to indicate network Link/Activity/Speed/Duplex.
Plug and Play.
Standards IEEE802.1P, IEEE802.1Q, IEEE802.3 10Base-T, IEEE802.3u 100Base-Tx, IEEE802.3ab 1000Base-T
Protocol CSMA/CD
PCI Bus 32-bit 33/66MHz PCI Bus
Port One 10M/100M/1000M STP/UTP port
LED Indicators One 10M(Link/Activity/Speed) LED; One 100M(Link/Activity/Speed) LED; One 1000M(Link/Activity/Speed) LED; One FDX(Full Duplex) LED
Network Media(Cable) 10Base-T: Cat. 3 or above Cat. 3 UTP
100Base-TX: Cat. 5 UTP
1000Base-T: Cat. 5 or above Cat. 5 UTP
Drivers Novell NetWare4. X\5. X6. X
Microsoft Windows98, Windows 98SE, Windows NT, Windows Me, Windows 2000, Windows XP Linux(kernel 2.2. X\2.4. X)
|
Standards |
IEEE802.1P,IEEE802.1Q,IEEE802.3 10Base-T,IEEE802.3u 100Base-Tx,IEEE802.3ab 1000Base-T |
|
Protocol |
CSMA/CD |
|
PCI Bus |
32-bit 33/66MHz PCI Bus |
|
Port |
One 10M/100M/1000M STP/UTP port |
|
LED Indicators |
One 10M(Link/Activity/Speed) LED One 100M(Link/Activity/Speed) LED One 1000M(Link/Activity/Speed) LEDOne FDX(Full Duplex) LED |
|
Network Media(Cable) |
10Base-T Cat. 3 or above Cat.3 UTP
100Base-TX Cat. 5 UTP
1000Base-T Cat. 5 or above Cat.5 UTP |
|
Drivers |
Novell NetWare4.x,5.x 6.x
Microsoft Windows98,Windows 98SE,Windows NT,Windows Me,Windows 2000,Windows XP Linux(kernel 2.2.x,2.4.x) |
