Product Specifications
| Prod Model: |
KY3688C |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Product Description

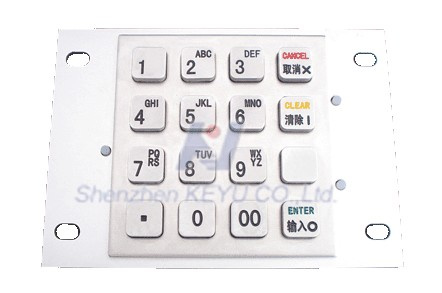

PCI EPP(Encrypted Pinpad)
Size: 87.5mmx91.5mm
Introduction: KY3688C is a PCI3.0 Metal EPP.
Characteristic
PCI 3.0 compliant
Multi-layer key management system
Customizable layouts(Support braille layout(partial) or legend keycap(optional))
Support side-bar functional keypad
Shake-proof, pickproof, drill-proof, bombproof
Standard WOSA drivers and DEMO
Support MAC, DES and Triple DES
Fine #304 stainless faceplate, harden aluminium baseplate
Black treated, brushed, sand-blasting and Teflon faceplate(optional)
Support braille layout(partial) or legend keycap(optional)
Front load or rear load screw or pin planting optional
Water-proof and dust-free(IP65 certificate)(optional)
Whole unit passed FCC, CE and RoHS certificate
1 year limited original plant maintenance(negotiable)
Product Configurations:
Key: High quality #304 stainless steel key
Baseplate: Die-casting aluminum back cover
Keytop: Clear legend and character etched or/and embossed
Surface treatment of keyboard enclosure and keytop base plate: Sand-blasting surface treatment
Side bar function keypad: 2x4 side bar functional keypad(option with LED backlight)
Special function: For low vision and eyesight handicapped people
> digits, "× ", "o" and "|" key paint and embossed with braille(optional)
> "5" with a protrude DOT
> All letters and digits can be etched with high adhesive color paint
Product Specifications:
Key press life: 2 millions
Key press force: 3 ~ 5 N
Key press travel: 0.45mm
Working voltage: 5V DC
Interface: RS232 or simulated RS232
Operation power consumption: Working status, currency max not exceed 200mA, RMS power less than 1W
Operational life: Operational lifespan>10 years, battery: >5 years(Without external power supply)
Dimensions: 87.5mmx91.5mm
Physical Characteristic
Anti-Peak, anti-listening, anti- dismantle, anti-drill and anti-exploding
Most secure special security chip
With anti-attach box
Secure reliable power-down protection device
EPP invasion detection function:
> Dismantle the enclosure
> Dismantle the encryption module
> Drill on any part of the PIN pad
> High-low temperature threshold
Detect the invasion will result in the following response:
> The main key which is used to encrypt the working key will be erased
> The working key which is used to encrypt the user PIN will be erased
> Erase the user data in the memory
> Erase the program in the memory
> The device will be lucked
Logic Characteristic
Well managed key management system
Complete and handy API lib and test program
The algorithm supports:
> DES/3DES applying ECB/CBC encryption and decryption
> DES/3DES MAC algorithm
> DES/3DES PIN encryption
Unlimited data-length encryption and decryption
Less than 1 second for the MAC operation in 3DES with 512 bytes of data
PIN encryption operated in security module
Support PIN BLOCK: ISO9564-1 0
Drivers for Windows NT/2000/XP
Environment Adaptability
Operation Temperature: - 25° C~ 65° C
Storage Temperature: - 25° C~ 65° C
RH: 5%~ 80%
Dust-proof and water-proof
Founded in 1995, Shenzhen Keyu Co., Ltd. is the professional manufacturer of metal keyboard/keypad, and PCI2.0 EPP(Encrypted PINPad).
During 16 years of development, KEYU always focus on the finance, elctronics and industrial fields. We dedicated to researching, manufacturing, maketing and service the experienced devices for vertical markets such as self-service terminals, rugged date-entry, encrypted transactions, amusement&gaming, electronic engineering and combat forces as well as many public interactive applications. So far, KEYU offers a complete range of self-service terminal and rugged date-entry devices covering various market segments including:
Metal keyboard: Interactive kiosk, meeting room, industrial controller, public service
PCI EPP: ATM, POS terminal, kiosk
Metal keypad: Vending machine, public phone, medical equipment, vehicle&vessel dashboard, elevator, gas station, karaOK(KTV)
Metal trackball: Kiosk, industrial controller, medicare equipment, military and vessel
KEYU has a 6, 500 squaremeters whole-owned factory with CNC and other metal processing machine on hand. KEYU is also know to keep the largest profilio of over 1, 000 sets of mould for kiosk, metal keyboards and metal EPP. We have a very strong developing and manufactoring ability in fine ironware processing.
KEYU also maintains an experienced software team to service and support our customers timely. We provide the tailored turnkey solution for our customers from conception to installation to the protect their investments in IT.
The markets have witnessed that KEYU has produced the most stable and qualified products in this industry for over 16 years.
