Product Specifications
| Prod Model: |
MM-PCE9901-2S1P |
Product Description
Brief
PCI Express (PCI-E) to 2S + 1 Parallel Controller Card
Features
Applications
Parallel/Printer Port based applications
Add-On I/O Cards -Parallel
Embedded systems - For I/O expansion
Specification
Fully compliant with PCI Express base 1.0a specification
Compatible for PCI Express Card application requirements
Utilises 100-MHz Differential PCI Express Common Reference Clock
Serial Port:
Supports RS232, RS485 & RS422 modes
Bi-directional speeds from 50 bps to 16 Mbps/Port
Full Serial modem control
Supports Hardware, Software flow control
5, 6, 7, 8 and 9-bit Serial format support
Even, Odd, None, space & Mark parity supported
Custom BAUD Rates supported with external clock or by programming internal PLL
On Chip 256 Byte depth FIFOs in Transmit, Receive path of each Serial Port
Supports remote wakeup and power management features
Serial Port transceiver shutdown support
Supports Slow IrDA on all Serial Ports
IEEE1284 Parallel Port:
IEEE 1284 compliant paralle port interface, supporting SPP/PS2/EPP/ECP modes and centronics interface
Faster data rates up to 1.5Mbps for parallel port
Supports Windows 32bit 2000/XP/2003 Server, Windows 64bit XP/2003 Server, Windows Vista 32 & 64bit, Linux Kernel 2.6.11 & above, MAC 10.4 & above
System Requirement
Included

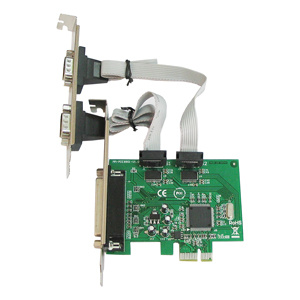

1 x PCI Express to Serial 2-port Parallel 1-port Controller Card
1 x User manual
1 x Software CD driver
Packing (50PCS/carton)
Giftbox: 18x14x4cm
Carton: 44x34x37cm
N. W. 7.8kgs
G. W. 8.6kgs
