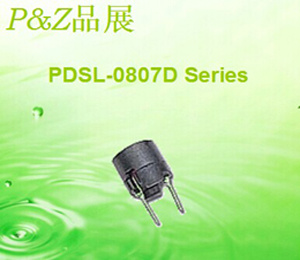

Pdsl0807D Fixed High Current Shield Inductors

Name: Pdsl0807D Fixed High Current Shield Inductors
Brand: China-Manufacturer-Directory.com
SKU: 768300505
Availability: InStock
Rating: 4.6 (98 reviews)

Supplier:	P&Z Electronic (Dongguan) Co., Ltd.
Price:	US $ 0.2/Piece
Min Order:	5000/Piece
Quantity::
Trade Terms:	FOB

Product Specifications

Prod Model:	PDSL0807D Series
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Size:	8.5*7.5
Type:	Fixed Inductor
Structure:	Inductive Choke
Brand:	P&Z

Product Description

Dinductance Range: 10μH~10000μH
Dimensions:8.3 * 7.3 (mm)
Applications:
Applications:notebook, inkjet printer, copying machine, display monitor,cellular phone, ADSL modem, gaming machine, color TV, video tape recorder, video camera, microwave oven,lighting and car electronics

P&Z	Inductance	Test Frequency	Tolerance	DCR	Rated Current
Part Number	(μH)		(%)	() Max	(A) Max
PDL0807D - 100M	10	1KHz/0.25V	± 20%	0.050	2.900
PDL0807D - 120M	12	1KHz/0.25V	± 20%	0.060	2.500
PDL0807D - 150M	15	1KHz/0.25V	± 20%	0.070	2.200
PDL0807D - 180M	18	1KHz/0.25V	± 20%	0.080	1.900
PDL0807D - 220M	22	1KHz/0.25V	± 20%	0.090	1.800
PDL0807D - 270M	27	1KHz/0.25V	± 20%	0.110	1.700
PDL0807D - 330M	33	1KHz/0.25V	± 20%	0.130	1.500
PDL0807D - 390M	39	1KHz/0.25V	± 20%	0.140	1.300
PDL0807D - 470M	47	1KHz/0.25V	± 20%	0.150	1.300
PDL0807D - 560M	56	1KHz/0.25V	± 20%	0.180	1.200
PDL0807D - 680M	68	1KHz/0.25V	± 20%	0.200	1.100
PDL0807D - 820M	82	1KHz/0.25V	± 20%	0.240	1.000
PDL0807D - 101M	100	1KHz/0.25V	± 20%	0.280	0.890
PDL0807D - 121M	120	1KHz/0.25V	± 20%	0.360	0.810
PDL0807D - 151M	150	1KHz/0.25V	± 20%	0.420	0.720
PDL0807D - 181M	180	1KHz/0.25V	± 20%	0.570	0.660
PDL0807D - 221M	220	1KHz/0.25V	± 20%	0.630	0.570
PDL0807D - 271M	270	1KHz/0.25V	± 20%	0.880	0.510
PDL0807D - 331M	330	1KHz/0.25V	± 20%	1.050	0.460
PDL0807D - 391M	390	1KHz/0.25V	± 20%	1.170	0.440
PDL0807D - 471M	470	1KHz/0.25V	± 20%	1.340	0.410
PDL0807D - 561M	560	1KHz/0.25V	± 20%	1.720	0.360
PDL0807D - 681M	680	1KHz/0.25V	± 20%	1.960	0.330
PDL0807D - 821M	820	1KHz/0.25V	± 20%	2.560	0.300
PDL0807D - 102M	1000	1KHz/0.25V	± 20%	2.940	0.270
PDL0807D - 122M	1200	1KHz/0.25V	± 20%	4.040	0.240
PDL0807D - 152M	1500	1KHz/0.25V	± 20%	4.700	0.220
PDL0807D - 182M	1800	1KHz/0.25V	± 20%	5.050	0.200
PDL0807D - 222M	2200	1KHz/0.25V	± 20%	6.250	0.180
PDL0807D - 272M	2700	1KHz/0.25V	± 20%	8.720	0.160
PDL0807D - 332M	3300	1KHz/0.25V	± 20%	10.600	0.150
PDL0807D - 392M	3900	1KHz/0.25V	± 20%	14.200	0.140
PDL0807D - 472M	4700	1KHz/0.25V	± 20%	16.700	0.120
PDL0807D - 562M	5600	1KHz/0.25V	± 20%	18.700	0.110
PDL0807D - 682M	6800	1KHz/0.25V	± 20%	21.800	0.100
PDL0807D - 822M	8200	1KHz/0.25V	± 20%	28.700	0.093
PDL0807D - 103M	10000	1KHz/0.25V	± 20%	33.000	0.084

*Acceptable customers design custom
Other specifications please visit our website: http://www.dgpinzhan.com

P&Z started its business since 2012 in Dongguan, China, officially registered the company in 2014 at the stage of sample development for complex and customized transformer to the quality production by complied all materials with UL & RoHS certified. Our company aims to deliver the qualified products from the pilot run to meet customers' testing requirements until final mass production. In the past three years, we have won a lot of customers' recognition from all over the world.

Our Products:

Traditional high-frequency transformer

Line filter

SMD Power Inductors

High-current inductors (SMD Molding Inductor)

Plug-inductance

Central inductors

Color ring inductance

EDR series high-frequency transformer

Services: The company insists the customer is "God" concept, to provide good customer service to ensure customer satisfaction best.
